EE90L-AEKRSW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )SED

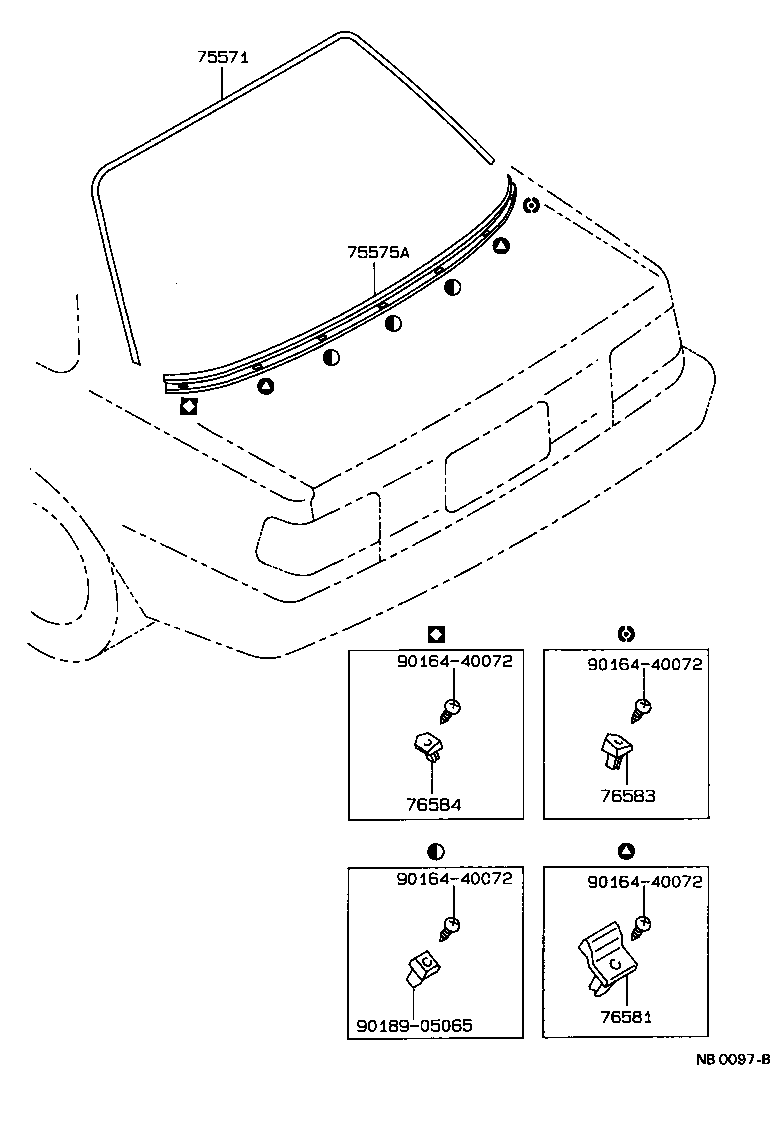

Click highlighted areas on diagram

diagram 75571 75575A 76581 76583 76584 9016440072 9016440072 9016440072 9016440072 9018905065
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12270

AE9#,CE90,EE90..SED..(STD,XL,XLI)

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-12210

AE9#,CE90,EE90..SED..(STD,XL,XLI)

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-12010

AE9#,CE90,EE90..SED

 2
76583 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH
76583-12030

AE9#,CE90,EE90..SED

 1
76584 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, LH
76584-12010

AE9#,CE90,EE90..SED

 1
Common parts
90164-40072
90189-05065
