EE90L-AEKRSW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )LB,SED

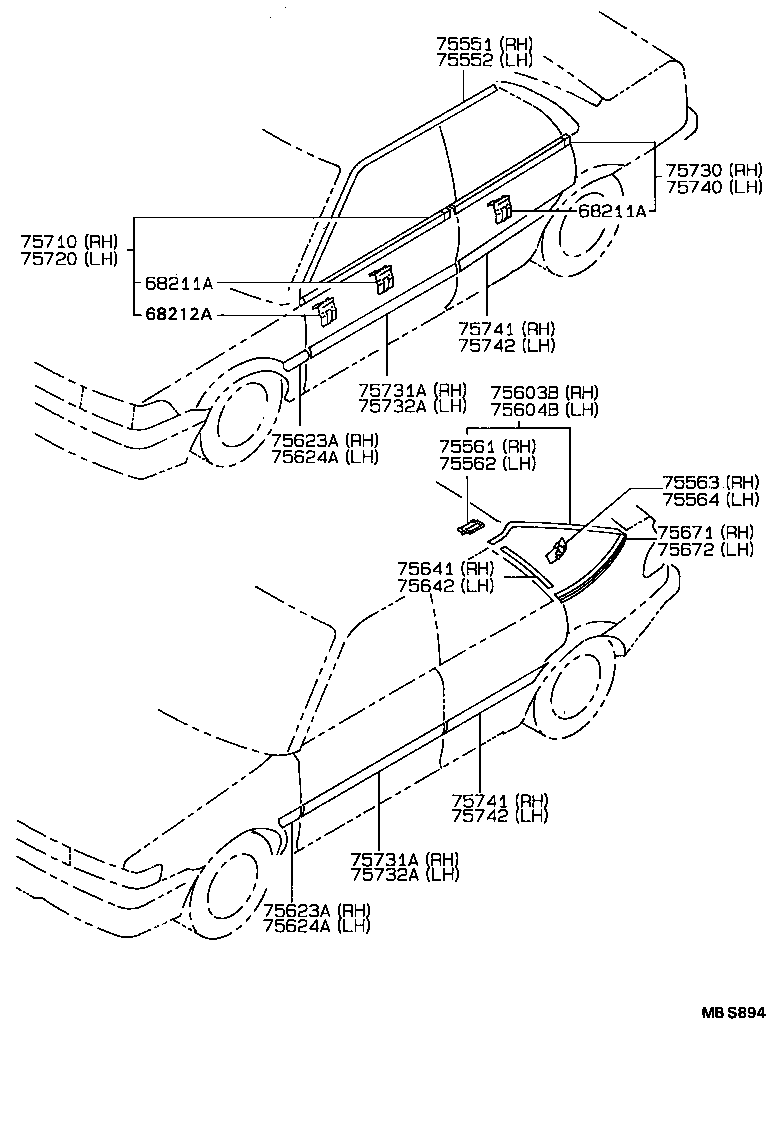

Click highlighted areas on diagram

diagram 68211A 68211A 68212A 75551 75552 75561 75562 75563 75564 75603B 75604B 75623A 75623A 75624A 75624A 75641 75642 75671 75672 75710 75720 75730 75731A 75731A 75732A 75732A 75740 75741 75741 75742 75742
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-12370

AE9#,CE90,EE90..SED..(STD,XL,XLI)

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-12370

AE9#,CE90,EE90..SED..(STD,XL,XLI)

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-12460

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-12460

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-12460

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-12460

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-12860

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-12860

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-12700

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-12700

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-12630

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-12630

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-12610

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-12610

EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)

 1
