EE90L-AEKRSW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

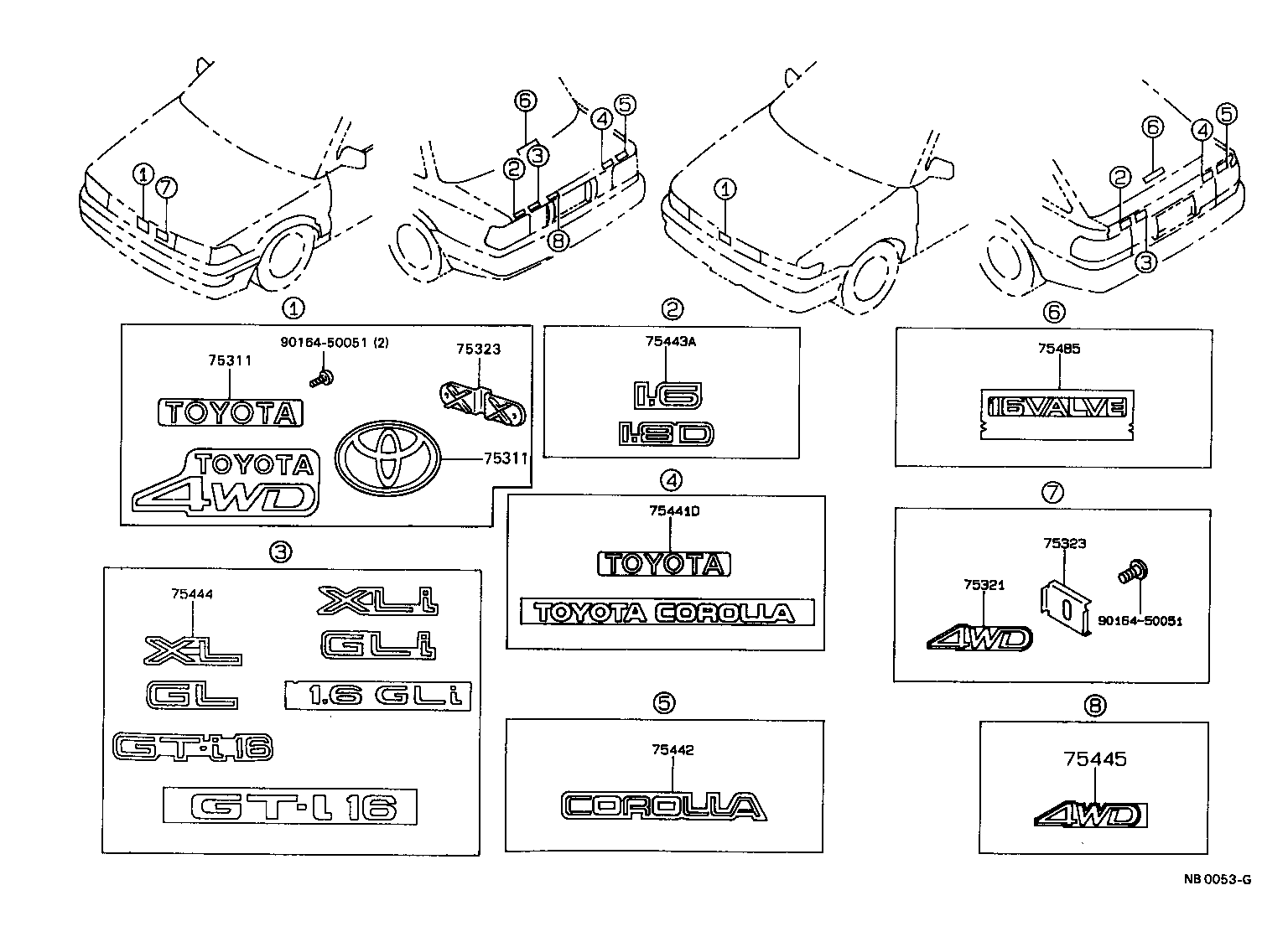

Click highlighted areas on diagram

diagram 75311 75311 75321 75323 75323 75441D 75442 75443A 75444 75445 75485 9016450051 9016450051
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-1A460

AE95..SED;AE92,CE90,EE90..SED,WG

 1
75311-1A461

AE92,CE90,EE90..SED,WG

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-1A460

AE95..SED;AE92,CE90,EE90..SED,WG

 1
75311-1A461

AE92,CE90,EE90..SED,WG

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-12490

AE9#,CE90,EE90..SED

TOYOTA

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-12860

AE9#,CE90,EE90..SED

COROLLA

 1
Common parts
90164-50051
