EE90L-AEKRSW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

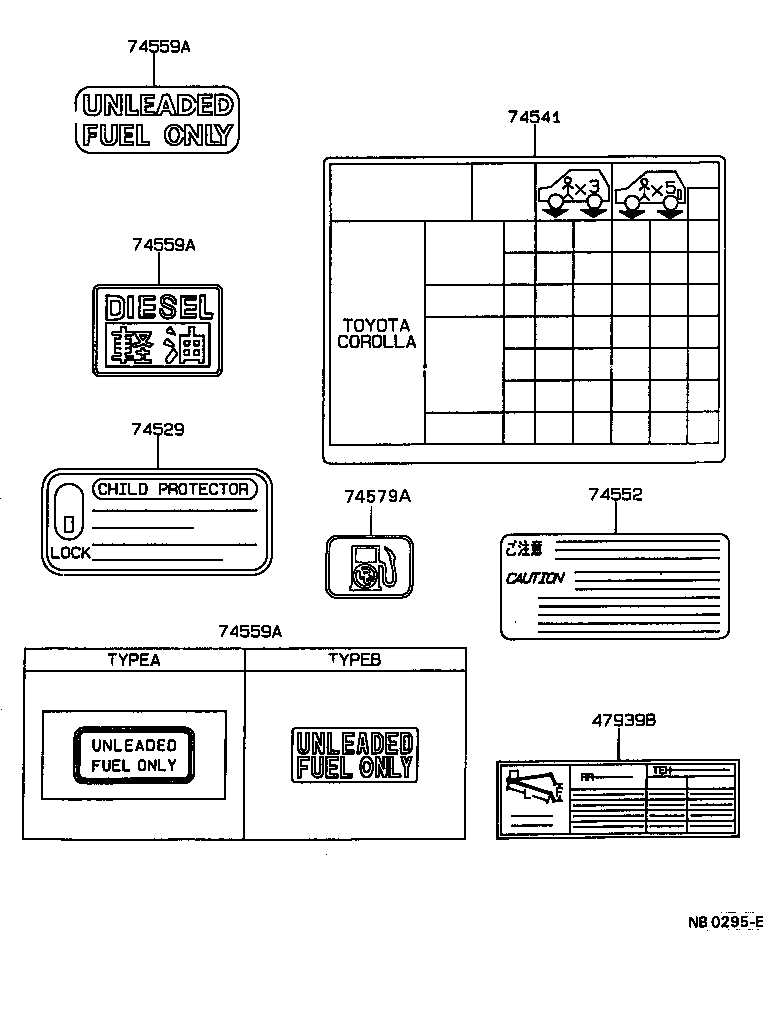

Click highlighted areas on diagram

diagram 47939B 74529 74541 74552 74559A 74559A 74559A 74579A
Part # Description Qty Price
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

AE9#,CE90,EE90

 2
69339-12010

AE92,CE90,EE90

 2
69339-12010

AE9#,CE90,EE90

 2
69339-12010

AE9#,CE90,EE90

 2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-12890

AE92,CE90,EE90..GL,GLI,STD,XL,XLI

 1
74559A - PLATE, FUEL CAUTION
74559-12040

AE92,EE90..LHD..MTM..CBR

TYPE A

 1
74559-14050

AE92..LHD;EE90..LHD..MTM

 1
74559-14050

AE95..WG..EFI;AE95..LHD..SED;AE92..3FC..EFI;AE92,EE90..LHD..MTM

TYPE B

 1
74559-14050

AE92,EE90..LHD..MTM..CBR

TYPE B

 1
74559A - PLATE, FUEL CAUTION
74559-12040

AE92,EE90..LHD..MTM..CBR

TYPE A

 1
74559-14050

AE92..LHD;EE90..LHD..MTM

 1
74559-14050

AE95..WG..EFI;AE95..LHD..SED;AE92..3FC..EFI;AE92,EE90..LHD..MTM

TYPE B

 1
74559-14050

AE92,EE90..LHD..MTM..CBR

TYPE B

 1
74559A - PLATE, FUEL CAUTION
74559-12040

AE92,EE90..LHD..MTM..CBR

TYPE A

 1
74559-14050

AE92..LHD;EE90..LHD..MTM

 1
74559-14050

AE95..WG..EFI;AE95..LHD..SED;AE92..3FC..EFI;AE92,EE90..LHD..MTM

TYPE B

 1
74559-14050

AE92,EE90..LHD..MTM..CBR

TYPE B

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-95701

EE90..CBR;AE9#..GL,GTI,XL

 1
