Toyota Corolla sed/lb/wg EE90 ARMREST & VISOR

EE90L-AEKRSW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992

Engine 2E

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

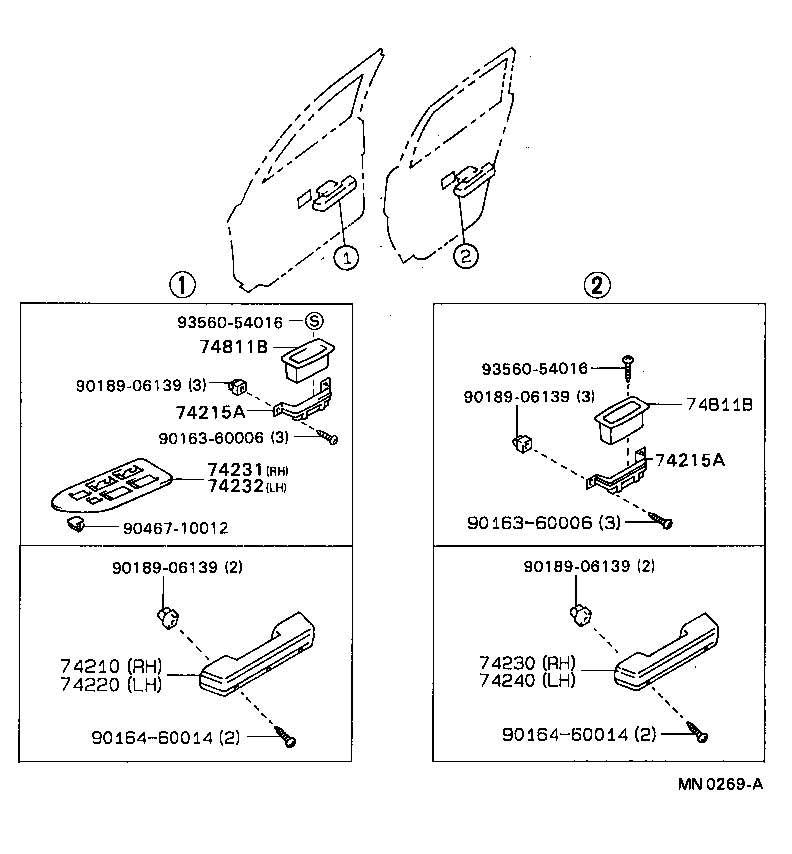

ILLUST NO. 1 OF 2(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
74210 - ARMREST ASSY, FRONT, RH
74210-1211005	CE90,EE90..STD DARK BEIGE,TRIM4#	05/1987 - 08/1989	1
74210-1211024	CE90,EE90..STD DARK BLUE,TRIM8#	08/1989 - 09/1989	1
74210-12110J0	CE90,EE90..STD DARK BLUE,TRIM8#	09/1989 - 05/1992	1
74210-1211003	CE90,EE90..STD GRAY,TRIM1#	05/1987 - 09/1990	1
74210-12110B1	CE90,EE90..STD SHADOW GRAY,TRIM1#	09/1990 - 05/1992	1
74220 - ARMREST ASSY, FRONT, LH
74210-1211005	CE90,EE90..STD DARK BEIGE,TRIM4#	05/1987 - 08/1989	1
74210-1211003	CE90,EE90..STD GRAY,TRIM1#	05/1987 - 09/1990	1
74210-12110B1	CE90,EE90..STD SHADOW GRAY,TRIM1#	09/1990 - 05/1992	1
74210-12110J0	CE90,EE90..STD DARK BLUE,TRIM8#	09/1989 - 05/1992	1
74210-1211024	CE90,EE90..STD DARK BLUE,TRIM8#	08/1989 - 09/1989	1
74230 - ARMREST ASSY, REAR, RH
74210-1211003	CE90,EE90..STD GRAY,TRIM1#	05/1987 - 09/1990	1
74210-1211005	CE90,EE90..STD DARK BEIGE,TRIM4#	05/1987 - 08/1989	1
74210-12110J0	CE90,EE90..STD DARK BLUE,TRIM8#	09/1989 - 05/1992	1
74210-1211024	CE90,EE90..STD DARK BLUE,TRIM8#	08/1989 - 09/1989	1
74210-12110B1	CE90,EE90..STD SHADOW GRAY,TRIM1#	09/1990 - 05/1992	1
74240 - ARMREST ASSY, REAR, LH
74210-1211005	CE90,EE90..STD DARK BEIGE,TRIM4#	05/1987 - 08/1989	1
74210-12110B1	CE90,EE90..STD SHADOW GRAY,TRIM1#	09/1990 - 05/1992	1
74210-1211003	CE90,EE90..STD GRAY,TRIM1#	05/1987 - 09/1990	1
74210-1211024	CE90,EE90..STD DARK BLUE,TRIM8#	08/1989 - 09/1989	1
74210-12110J0	CE90,EE90..STD DARK BLUE,TRIM8#	09/1989 - 05/1992	1
Common parts
90163-60006
90164-60014
90189-06139
90467-10012
93560-54016

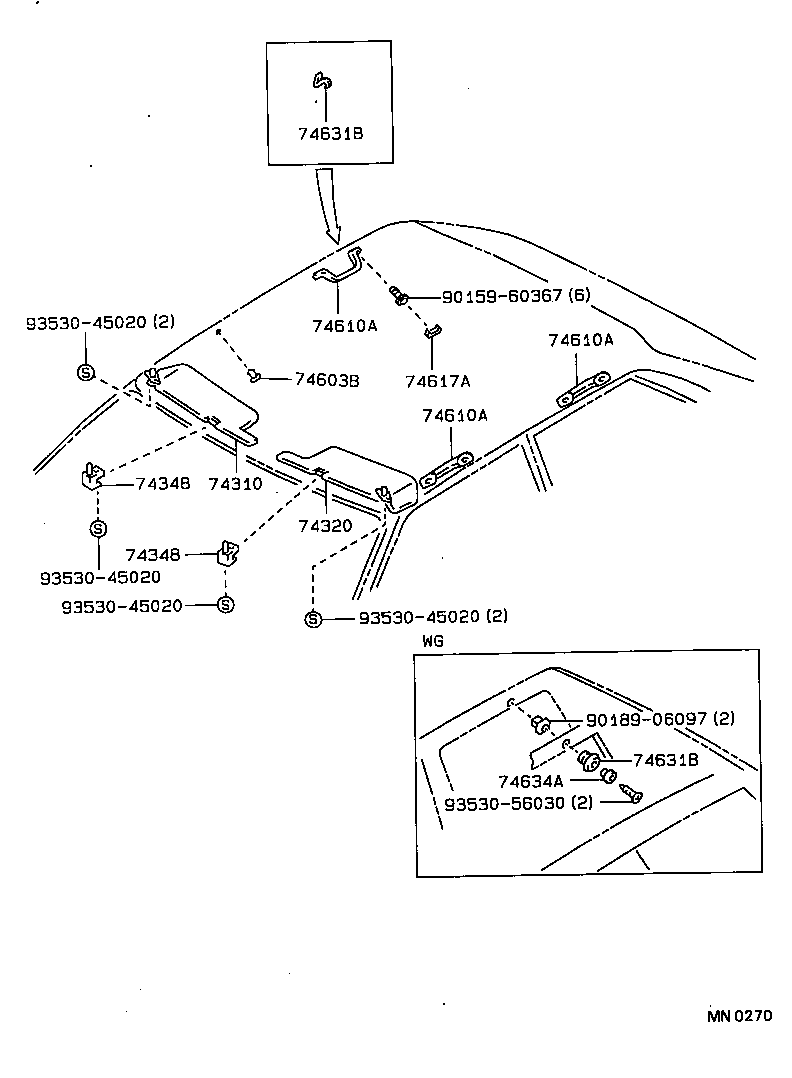

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
74310 - VISOR ASSY, RH
74310-1270005	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL) LIGHT BEIGE,TRIM4#	05/1987 - 09/1988	1
74310-1270003	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL) LIGHT GRAY,TRIM1#	05/1987 - 09/1988	1
74310-1271005	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL) VINYL & W(PROTECTOR),LIGHT BEIGE,TRIM4#	05/1987 - 08/1989	1
74310-12700E0	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL) LIGHT BEIGE,TRIM4#	09/1988 - 08/1989	1
74310-1271003	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL,XLI) VINYL & W(PROTECTOR),LIGHT GRAY,TRIM1#	05/1987 - 05/1992	1
74310-1271004	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL,XLI) VINYL & W(PROTECTOR),LIGHT BLUE,TRIM8#	08/1989 - 05/1992	1
74310-12700J0	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL,XLI) LIGHT BLUE,TRIM8#	08/1989 - 05/1992	1
74310-12700B0	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL,XLI) LIGHT GRAY,TRIM1#	09/1988 - 05/1992	1
74320 - VISOR ASSY, LH
74320-1255003	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL) LIGHT GRAY,TRIM1#	05/1987 - 09/1988	1
74320-1255005	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL) LIGHT BEIGE,TRIM4#	05/1987 - 09/1988	1
74320-1256005	CE90,EE90..STD VINYL & W(PROTECTOR),LIGHT BEIGE,TRIM4#	05/1987 - 08/1989	1
74320-12550E0	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL) LIGHT BEIGE,TRIM4#	09/1988 - 08/1989	1
74320-1256003	CE90,EE90..STD VINYL & W(PROTECTOR),LIGHT GRAY,TRIM1#	05/1987 - 05/1992	1
74320-12550J0	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL,XLI) LIGHT BLUE,TRIM8#	08/1989 - 05/1992	1
74320-12550B0	AE95..SED..(XL,XLI);AE92,CE90,EE90..LHD..(SED,WG)..(STD,XL,XLI) LIGHT GRAY,TRIM1#	09/1988 - 05/1992	1
74320-1256004	CE90,EE90..STD VINYL & W(PROTECTOR),LIGHT BLUE,TRIM8#	08/1989 - 05/1992	1
74348 - HOLDER, VISOR
74348-1202004	AE9#,CE90,EE90..GL,GLI,STD,XL,XLI LIGHT BLUE,TRIM8#	08/1989 - 05/1992	2
74348-1202005	AE9#,CE90,EE90..GL,GLI,STD,XL,XLI LIGHT BEIGE,TRIM4#	10/1987 - 08/1989	2
74348-1202003	AE9#,CE90,EE90 LIGHT GRAY,TRIM1#	10/1987 - 05/1992	2
74348 - HOLDER, VISOR
74348-1202004	AE9#,CE90,EE90..GL,GLI,STD,XL,XLI LIGHT BLUE,TRIM8#	08/1989 - 05/1992	2
74348-1202005	AE9#,CE90,EE90..GL,GLI,STD,XL,XLI LIGHT BEIGE,TRIM4#	10/1987 - 08/1989	2
74348-1202003	AE9#,CE90,EE90 LIGHT GRAY,TRIM1#	10/1987 - 05/1992	2
74603B - CLIP (FOR ASSIST GRIP)
90467-0604825	CE90,EE90..SED..STD LIGHT BEIGE,TRIM4#	05/1987 - 09/1988	6
90467-0604833	CE90,EE90..SED..STD LIGHT GRAY,TRIM1#	05/1987 - 09/1988	6
90467-06048E0	CE90,EE90..SED..STD LIGHT BEIGE,TRIM4#	09/1988 - 08/1989	6
90467-06048B1	CE90,EE90..SED..STD LIGHT GRAY,TRIM1#	09/1988 - 05/1992	6
90467-06048J0	EE90..SED..STD LIGHT BLUE,TRIM8#	08/1989 - 05/1992	6
74610A - GRIP SUB-ASSY, ASSIST
74610-1601005	CE90,EE90..STD LIGHT BEIGE,TRIM4#	05/1987 - 08/1989	1
74610-1601003	CE90,EE90..STD LIGHT GRAY,TRIM1#	05/1987 - 09/1991	1
74610-1601004	CE90,EE90..STD LIGHT BLUE,TRIM8#	08/1989 - 09/1991	1
74610-1601003	EE90..SED..STD LIGHT GRAY,TRIM1#	09/1991 - 05/1992	1
74610-1601004	EE90..SED..STD LIGHT BLUE,TRIM8#	09/1991 - 05/1992	1
74610A - GRIP SUB-ASSY, ASSIST
74610-1601005	CE90,EE90..STD LIGHT BEIGE,TRIM4#	05/1987 - 08/1989	1
74610-1601003	CE90,EE90..STD LIGHT GRAY,TRIM1#	05/1987 - 09/1991	1
74610-1601004	CE90,EE90..STD LIGHT BLUE,TRIM8#	08/1989 - 09/1991	1
74610-1601003	EE90..SED..STD LIGHT GRAY,TRIM1#	09/1991 - 05/1992	1
74610-1601004	EE90..SED..STD LIGHT BLUE,TRIM8#	09/1991 - 05/1992	1
74610A - GRIP SUB-ASSY, ASSIST
74610-1601005	CE90,EE90..STD LIGHT BEIGE,TRIM4#	05/1987 - 08/1989	1
74610-1601003	CE90,EE90..STD LIGHT GRAY,TRIM1#	05/1987 - 09/1991	1
74610-1601004	CE90,EE90..STD LIGHT BLUE,TRIM8#	08/1989 - 09/1991	1
74610-1601003	EE90..SED..STD LIGHT GRAY,TRIM1#	09/1991 - 05/1992	1
74610-1601004	EE90..SED..STD LIGHT BLUE,TRIM8#	09/1991 - 05/1992	1
74617A - PLUG, ASSIST GRIP
74617-1601053	CE90,EE90..STD LIGHT GRAY,TRIM1#	05/1987 - 09/1991	2
74617-1601024	CE90,EE90..STD DEEP BLUE,TRIM8#	08/1989 - 09/1991	2
74617-1601053	EE90..SED..STD LIGHT GRAY,TRIM1#	09/1991 - 05/1992	2
74617-1601020	CE90,EE90..STD LIGHT BEIGE,TRIM4#	05/1987 - 08/1989	2
74617-1601024	EE90..SED..STD DEEP BLUE,TRIM8#	09/1991 - 05/1992	2
Common parts
90159-60367
90189-06097
93530-45020
93530-56030

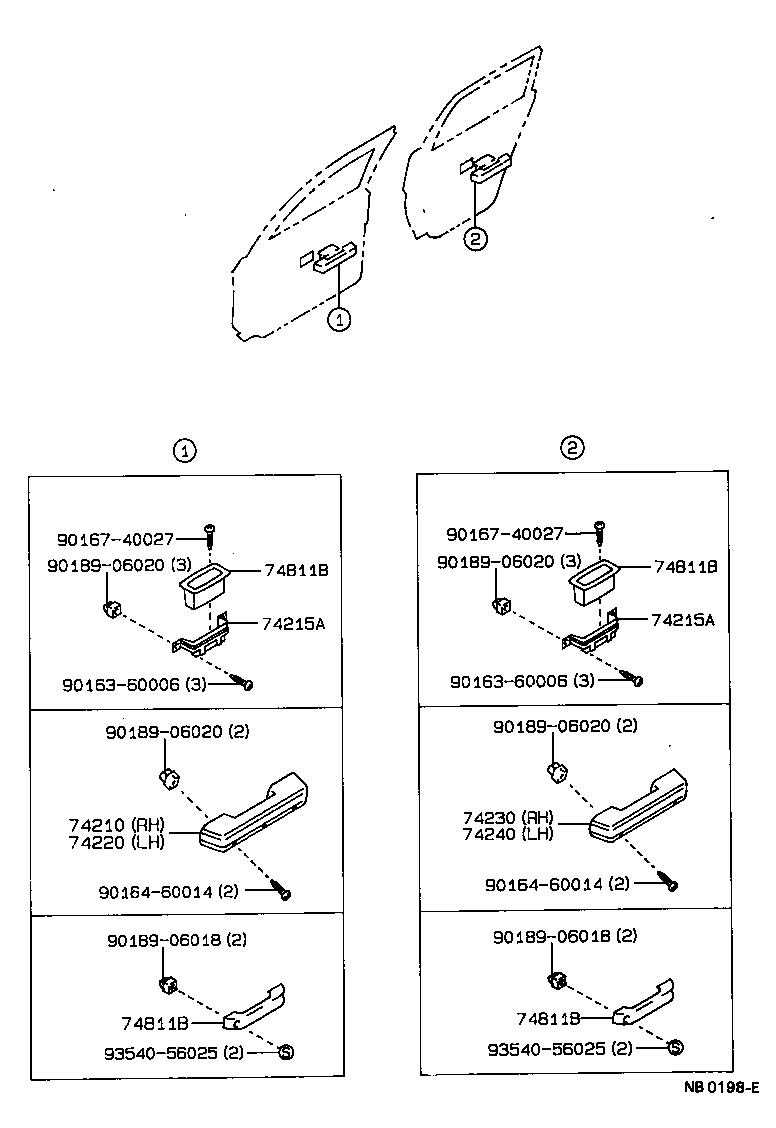

ILLUST NO. 1 OF 2(8705-8908)

Click highlighted areas on diagram

Part #	Description	Period	Qty
74210 - ARMREST ASSY, FRONT, RH
74210-1211005	CE90,EE90..STD DARK BEIGE,TRIM4#	05/1987 - 08/1989	1
74210-1211024	CE90,EE90..STD DARK BLUE,TRIM8#	08/1989 - 09/1989	1
74210-12110J0	CE90,EE90..STD DARK BLUE,TRIM8#	09/1989 - 05/1992	1
74210-1211003	CE90,EE90..STD GRAY,TRIM1#	05/1987 - 09/1990	1
74210-12110B1	CE90,EE90..STD SHADOW GRAY,TRIM1#	09/1990 - 05/1992	1
74220 - ARMREST ASSY, FRONT, LH
74210-1211005	CE90,EE90..STD DARK BEIGE,TRIM4#	05/1987 - 08/1989	1
74210-1211003	CE90,EE90..STD GRAY,TRIM1#	05/1987 - 09/1990	1
74210-12110B1	CE90,EE90..STD SHADOW GRAY,TRIM1#	09/1990 - 05/1992	1
74210-12110J0	CE90,EE90..STD DARK BLUE,TRIM8#	09/1989 - 05/1992	1
74210-1211024	CE90,EE90..STD DARK BLUE,TRIM8#	08/1989 - 09/1989	1
74230 - ARMREST ASSY, REAR, RH
74210-1211003	CE90,EE90..STD GRAY,TRIM1#	05/1987 - 09/1990	1
74210-1211005	CE90,EE90..STD DARK BEIGE,TRIM4#	05/1987 - 08/1989	1
74210-12110J0	CE90,EE90..STD DARK BLUE,TRIM8#	09/1989 - 05/1992	1
74210-1211024	CE90,EE90..STD DARK BLUE,TRIM8#	08/1989 - 09/1989	1
74210-12110B1	CE90,EE90..STD SHADOW GRAY,TRIM1#	09/1990 - 05/1992	1
74240 - ARMREST ASSY, REAR, LH
74210-1211005	CE90,EE90..STD DARK BEIGE,TRIM4#	05/1987 - 08/1989	1
74210-12110B1	CE90,EE90..STD SHADOW GRAY,TRIM1#	09/1990 - 05/1992	1
74210-1211003	CE90,EE90..STD GRAY,TRIM1#	05/1987 - 09/1990	1
74210-1211024	CE90,EE90..STD DARK BLUE,TRIM8#	08/1989 - 09/1989	1
74210-12110J0	CE90,EE90..STD DARK BLUE,TRIM8#	09/1989 - 05/1992	1
Common parts
90163-60006
90164-60014
90167-40027
90189-06018
90189-06020
93540-56025
