EE90L-AEKRSW (1987)
Toyota Corolla Sed/Lb/Wg

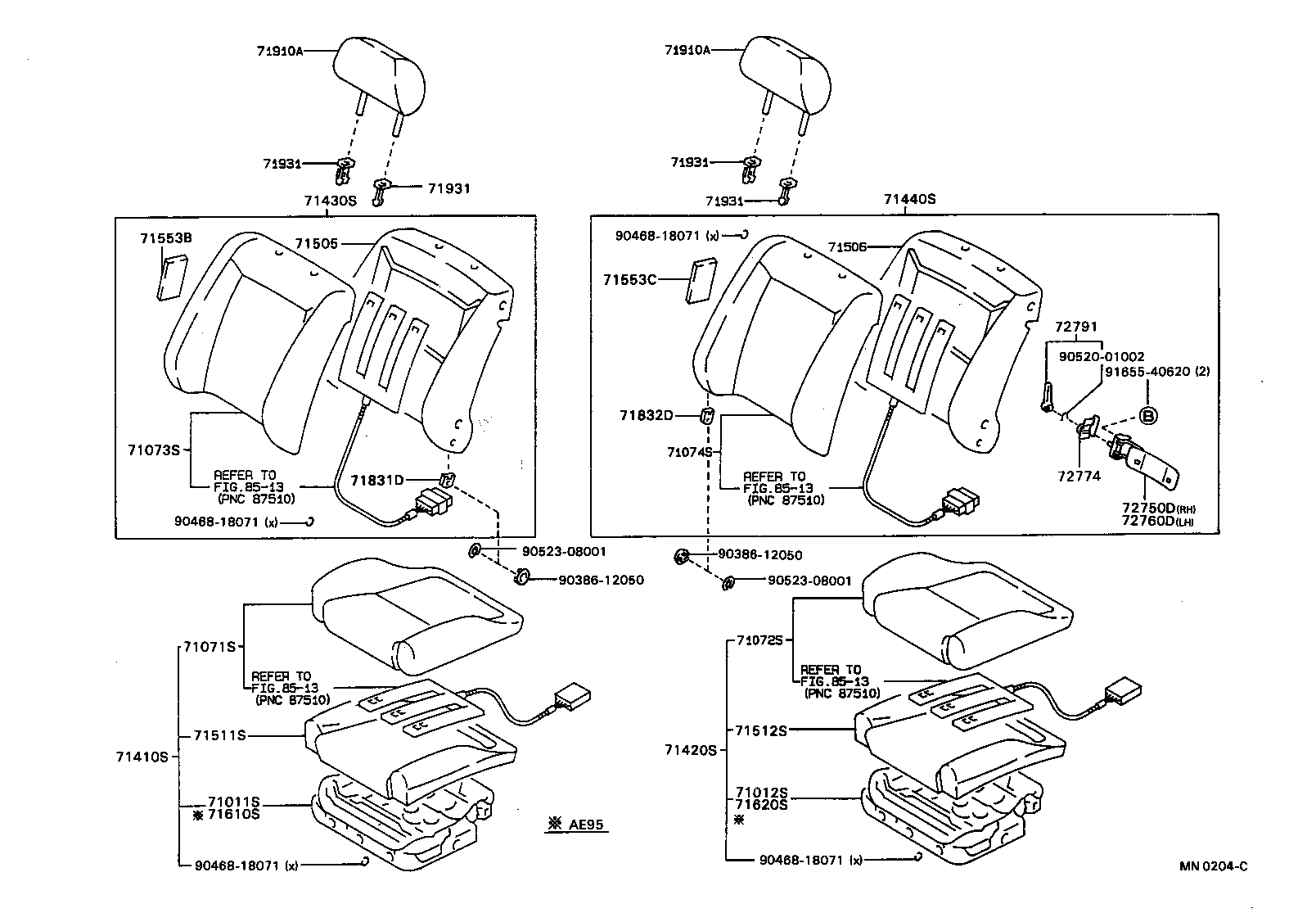

ILLUST NO. 1 OF 2(8705- )GL,GLI,STD,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12280 |
AE92,CE90,EE90 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12280 |
AE92,CE90,EE90 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1H28005 |
CE90,EE90..STD W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H15005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H28003 |
CE90,EE90..STD W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H15003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H15004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28103 |
CE90,EE90..STD W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H28104 |
CE90,EE90..STD W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1H15005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H28005 |
CE90,EE90..STD W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H28003 |
CE90,EE90..STD W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H15003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H28104 |
CE90,EE90..STD W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H15004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28103 |
CE90,EE90..STD W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1H21005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 71073-1H21004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 71073-1H21003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28005 |
CE90,EE90..STD W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71073-1H28104 |
CE90,EE90..STD W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H28103 |
CE90,EE90..STD W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1E17005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E24003 |
CE90,EE90..STD W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E24005 |
CE90,EE90..STD W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E24104 |
CE90,EE90..STD W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E17003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E17004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 71074-1E24103 |
CE90,EE90..STD W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1H66003 |
AE92,CE90,EE90..XL;CE90,EE90..SED..STD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66005 |
AE92,CE90,EE90..XL;CE90,EE90..SED..STD ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H50005 |
CE90,EE90..STD ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H66003 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66005 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H50004 |
CE90,EE90..STD ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1H50003 |
CE90,EE90..STD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66103 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66104 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1H66003 |
AE92,CE90,EE90..XL;CE90,EE90..SED..STD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66005 |
AE92,CE90,EE90..XL;CE90,EE90..SED..STD ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H66003 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H50005 |
CE90,EE90..STD ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H66005 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H50003 |
CE90,EE90..STD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H50004 |
CE90,EE90..STD ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1H66104 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H66103 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1H52005 |
CE90,EE90..STD ***,DARK BEIGE,TRIM4# |
1 | ||
| 71430-1H52003 |
CE90,EE90..STD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H52004 |
CE90,EE90..STD ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1H61103 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61104 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1H46005 |
CE90,EE90..STD ***,DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H46004 |
CE90,EE90..STD ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1H46003 |
CE90,EE90..STD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H54103 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H54104 |
CE90,EE90..STD ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12050 |
AE9#,CE90,EE90..STD,XL,XLI |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-12040 |
AE9#,CE90,EE90..STD,XL,XLI |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12590 |
AE92,CE90,EE90..STD,XL,XLI |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12590 |
AE92,CE90,EE90..STD,XL,XLI |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12200 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 71553C - PAD, FRONT SEAT BACK, C | ||||
| 71553-12200 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-12010 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-12010 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1278005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
2 | ||
| 71910-1278003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A16003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A16004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1278005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
2 | ||
| 71910-1278003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A16003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A16004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201005 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205004 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201005 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205004 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201005 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205004 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201005 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205004 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90386-12050 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8513 | ||||

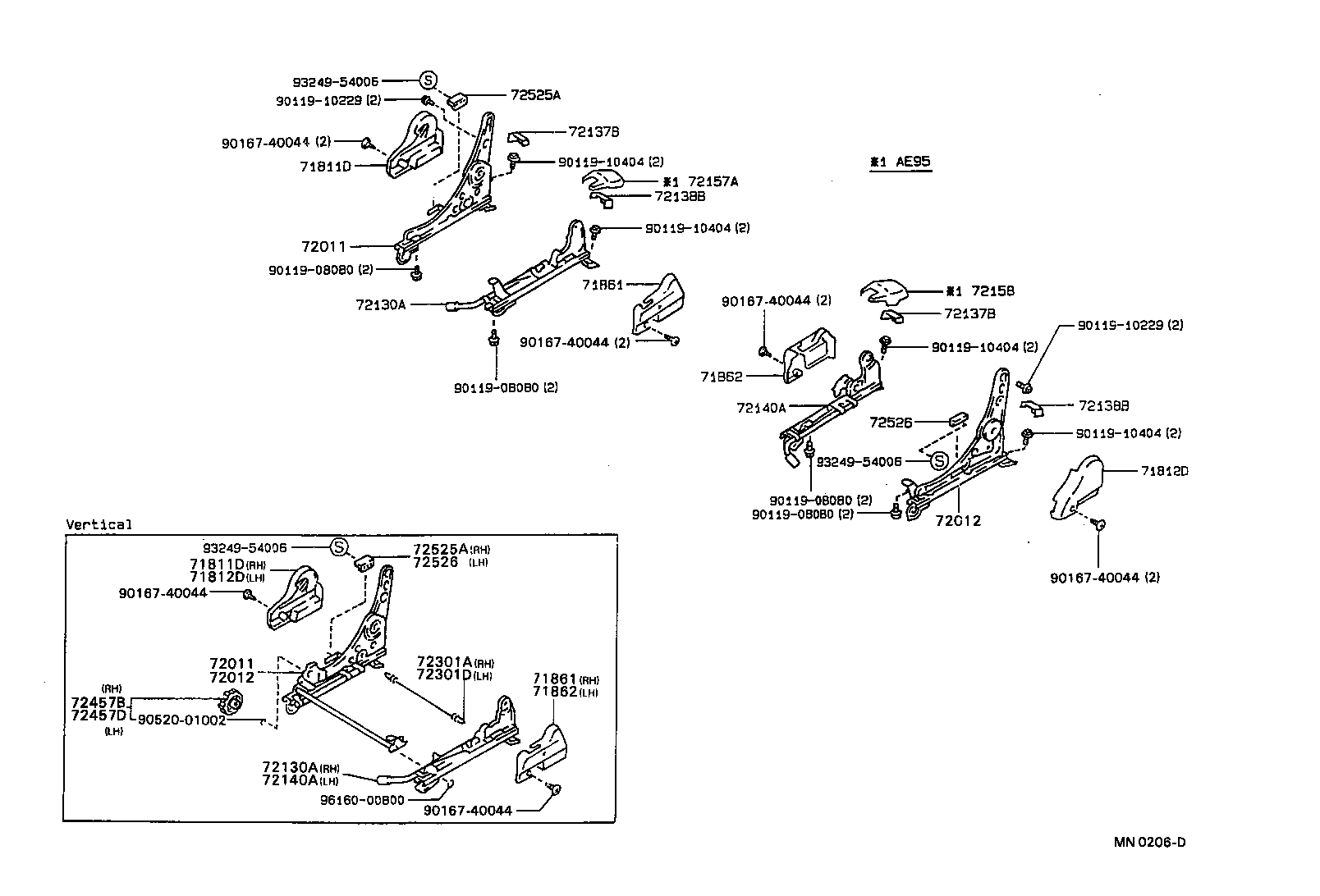

ILLUST NO. 2 OF 2(8705- )GL,GLI,STD,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1218005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71811-1218003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1218004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1218005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71811-1218003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1218004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1215005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71812-1215003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71812-1215004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1215005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71812-1215003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71812-1215004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1210005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71861-1210003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1210004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1210005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71861-1210003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1210004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1210003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71862-1210005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71862-1210004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1210003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 71862-1210005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71862-1210004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12310 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12310 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12330 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12330 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12460 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12460 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72137-1202003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-12020J0 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 72137-12020E0 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72137-1202003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-12020J0 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 72137-12020E0 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72138-12030J0 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 72138-12030E0 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72138-1203003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72138-12030J0 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 72138-12030E0 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72138-1203003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12310 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12310 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209025 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209003 |
AE9#,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 72525-1209034 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209025 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209003 |
AE9#,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 72525-1209034 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203025 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203003 |
AE9#,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 72526-1203034 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203025 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203003 |
AE9#,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 72526-1203034 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90167-40044 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
