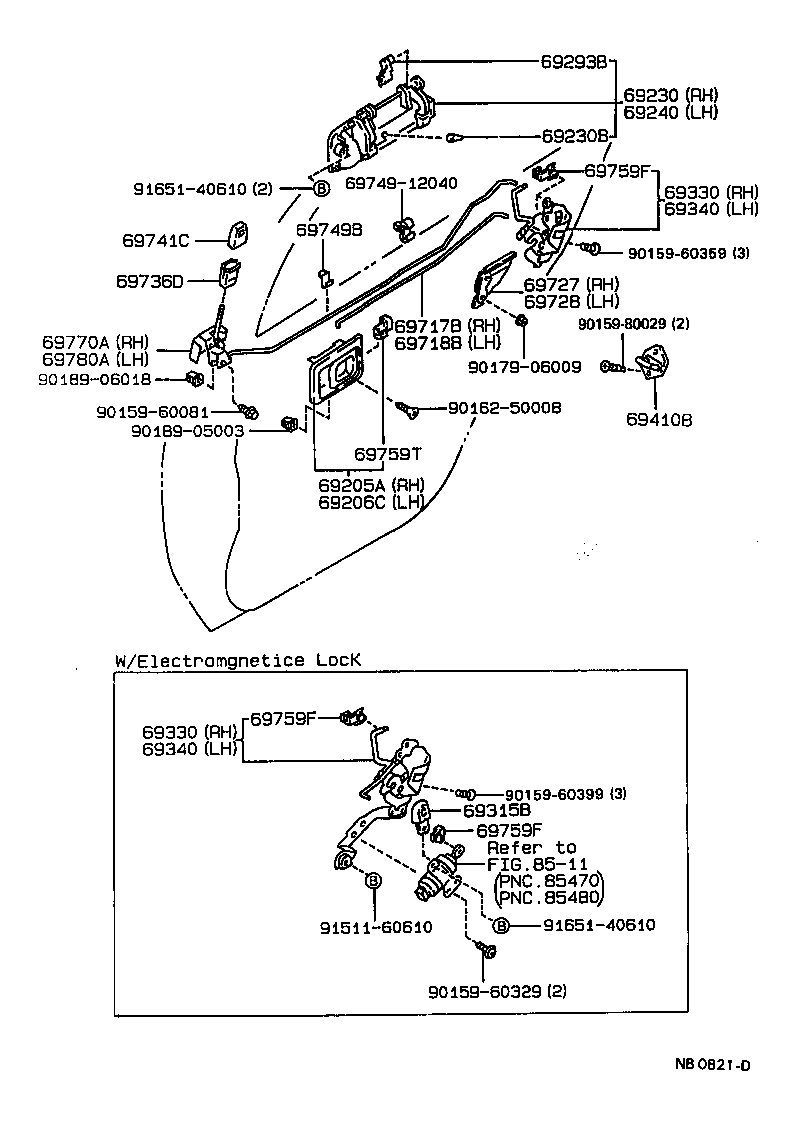

EE90L-AEKRSW (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-1004013 |
CE90,EE90..STD GRAY,TRIM1# |
2 | ||
| 69205-1004005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69205-1004013 |
CE90,EE90..STD GRAY,TRIM1# |
1 | ||
| 69205-1004005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
2 | ||
| 69205-1004034 |
CE90,EE90..STD BLUE,TRIM8# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-1004013 |
CE90,EE90..STD GRAY,TRIM1# |
1 | ||
| 69206-1004005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69206-1004034 |
CE90,EE90..STD BLUE,TRIM8# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-12110 |
AE9#,CE90,EE90 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
AE9#,CE90,EE90 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-12110 |
AE9#,CE90,EE90 |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
AE9#,CE90,EE90 RH |
1 | ||
| 69293-12040 |
AE9#,CE90,EE90 LH |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-12211 |
AE9#,CE90,EE90 |
1 | ||
| 69330-12210 |
AE9#,CE90,EE90 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-12211 |
AE9#,CE90,EE90 |
1 | ||
| 69330-12210 |
AE9#,CE90,EE90 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-12210 |
AE9#,CE90,EE90 |
1 | ||
| 69340-12211 |
AE9#,CE90,EE90 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-12210 |
AE9#,CE90,EE90 |
1 | ||
| 69340-12211 |
AE9#,CE90,EE90 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE9#,CE90,EE90 |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-12040 |
AE9#,CE90,EE90 |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-12050 |
AE9#,CE90,EE90 |
1 | ||
| 69736D - GUIDE, REAR DOOR LOCKING LINK | ||||
| 69736-12030 |
AE9#,CE90,EE90 |
2 | ||
| 69736-12030 |
AE9#,CE90,EE90 |
2 | ||
| 69736-20090 |
AE92,CE90,EE90 |
2 | ||
| 69736-20090 |
AE9#,CE90,EE90 |
2 | ||
| 69736-12030 |
AE9#,CE90,EE90 |
2 | ||
| 69736-20090 |
AE92,CE90,EE90 |
2 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-90K0003 |
AE9#,CE90,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 69741-90K0005 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BEIGE,TRIM4# |
2 | ||
| 69741-90K0003 |
AE9#,CE90,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 69741-90K00E0 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BEIGE,TRIM4# |
2 | ||
| 69741-90K00 |
AE95,CE90..SED,WG;AE92,EE90..(SED,WG)..CBR |
2 | ||
| 69741-90K00J0 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20010 |
AE9#,CE90,EE90 FR |
2 | ||
| 69749-20010 |
AE92,CE90,EE90 FR |
2 | ||
| 69749-12040 |
AE92,CE90,EE90 RR |
2 | ||
| 69749-20010 |
AE9#,CE90,EE90 FR |
2 | ||
| 69749-12040 |
AE9#,CE90,EE90 RR |
2 | ||
| 69749-12040 |
AE9#,CE90,EE90 RR |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-12070 |
AE9#,CE90,EE90 RH,CREAM |
2 | ||
| 69759-20040 |
AE9#,CE90,EE90 LH,YELLOW |
2 | ||
| 69759-12070 |
AE9#,CE90,EE90 RH,CREAM |
2 | ||
| 69759-20040 |
AE9#,CE90,EE90 LH,YELLOW |
2 | ||
| 69759-12070 |
AE92,CE90,EE90 RH,CREAM |
2 | ||
| 69759-12070 |
AE9#,CE90,EE90 RH,CREAM |
2 | ||
| 69759-20040 |
AE9#,CE90,EE90 LH,YELLOW |
2 | ||
| 69759-20040 |
AE92,CE90,EE90 LH,YELLOW |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-12070 |
AE9#,CE90,EE90 RH,CREAM |
2 | ||
| 69759-20040 |
AE9#,CE90,EE90 LH,YELLOW |
2 | ||
| 69759-12070 |
AE9#,CE90,EE90 RH,CREAM |
2 | ||
| 69759-20040 |
AE9#,CE90,EE90 LH,YELLOW |
2 | ||
| 69759-12070 |
AE92,CE90,EE90 RH,CREAM |
2 | ||
| 69759-12070 |
AE9#,CE90,EE90 RH,CREAM |
2 | ||
| 69759-20040 |
AE9#,CE90,EE90 LH,YELLOW |
2 | ||
| 69759-20040 |
AE92,CE90,EE90 LH,YELLOW |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-12070 |
AE9#,CE90,EE90 RH,CREAM |
2 | ||
| 69759-20040 |
AE9#,CE90,EE90 LH,YELLOW |
2 | ||
| 69759-12070 |
AE9#,CE90,EE90 RH,CREAM |
2 | ||
| 69759-20040 |
AE9#,CE90,EE90 LH,YELLOW |
2 | ||
| 69759-12070 |
AE92,CE90,EE90 RH,CREAM |
2 | ||
| 69759-12070 |
AE9#,CE90,EE90 RH,CREAM |
2 | ||
| 69759-20040 |
AE9#,CE90,EE90 LH,YELLOW |
2 | ||
| 69759-20040 |
AE92,CE90,EE90 LH,YELLOW |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-20070 |
AE9#,CE90,EE90 LH |
2 | ||
| 69759-20060 |
AE9#,CE90,EE90 RH |
2 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-12040 |
AE9#,CE90,EE90 |
1 | ||
| 69770-12040 |
AE9#,CE90,EE90 |
1 | ||
| 69770-12040 |
AE92,CE90,EE90 |
1 | ||
| 69770-12040 |
AE9#,CE90,EE90 |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-12040 |
AE9#,CE90,EE90 |
1 | ||
| 69780-12040 |
AE9#,CE90,EE90 |
1 | ||
| 69780-12040 |
AE9#,CE90,EE90 |
1 | ||
| 69780-12040 |
AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 69749-12040 | ||||
| 90159-60081 | ||||
| 90159-60329 | ||||
| 90159-60359 | ||||
| 90159-60399 | ||||
| 90159-80029 | ||||
| 90162-50008 | ||||
| 90179-06009 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| 91511-60610 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8511 | ||||
