EE90L-AEKRSW (1987)
Toyota Corolla Sed/Lb/Wg

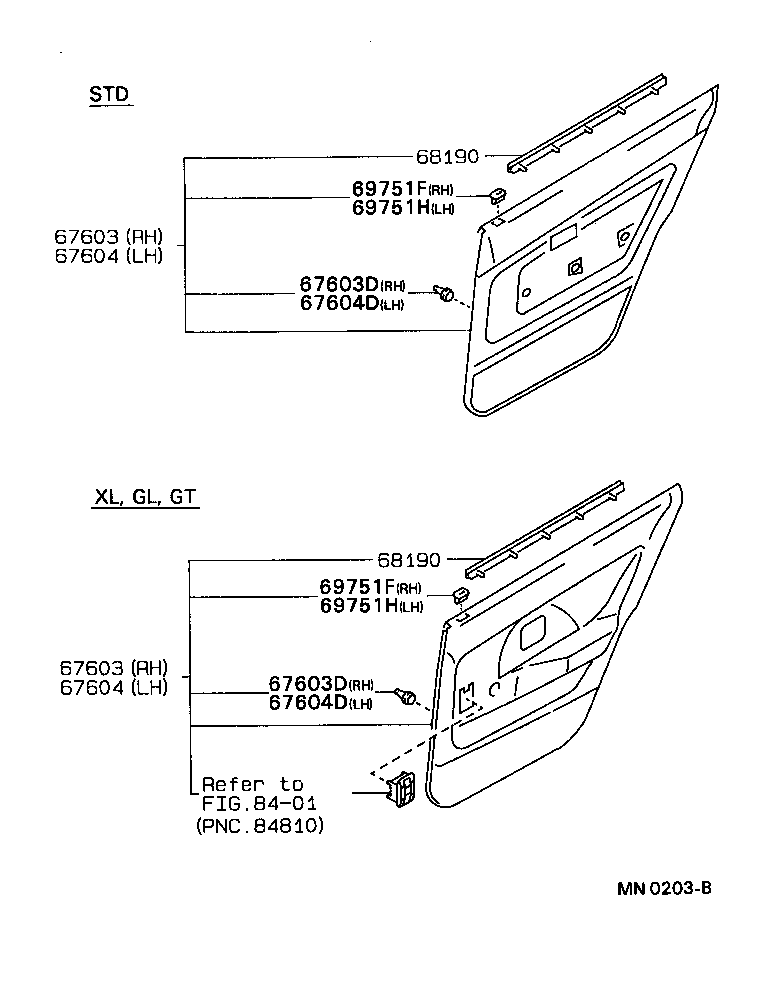

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1287003 |
CE90,EE90..SED..STD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1287005 |
CE90,EE90..SED..STD DARK BEIGE,TRIM4# |
1 | ||
| 67630-1287003 |
CE90,EE90..SED..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1287004 |
EE90..SED..STD BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1287003 |
CE90,EE90..SED..STD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1287005 |
CE90,EE90..SED..STD DARK BEIGE,TRIM4# |
1 | ||
| 67630-1287003 |
CE90,EE90..SED..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1287004 |
EE90..SED..STD BLUE,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
CE90,EE90..STD |
8 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
CE90,EE90..STD |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1287005 |
CE90,EE90..SED..STD DARK BEIGE,TRIM4# |
1 | ||
| 67640-1287003 |
CE90,EE90..SED..STD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1287003 |
CE90,EE90..SED..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1287004 |
EE90..SED..STD BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1287005 |
CE90,EE90..SED..STD DARK BEIGE,TRIM4# |
1 | ||
| 67640-1287003 |
CE90,EE90..SED..STD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1287003 |
CE90,EE90..SED..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1287004 |
EE90..SED..STD BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
CE90,EE90..STD |
8 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
CE90,EE90..STD |
8 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12160 |
CE90,EE90..STD |
2 | ||
| 68173-12160 |
CE90,EE90..STD |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12160 |
CE90,EE90..STD |
2 | ||
| 68173-12160 |
CE90,EE90..STD |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

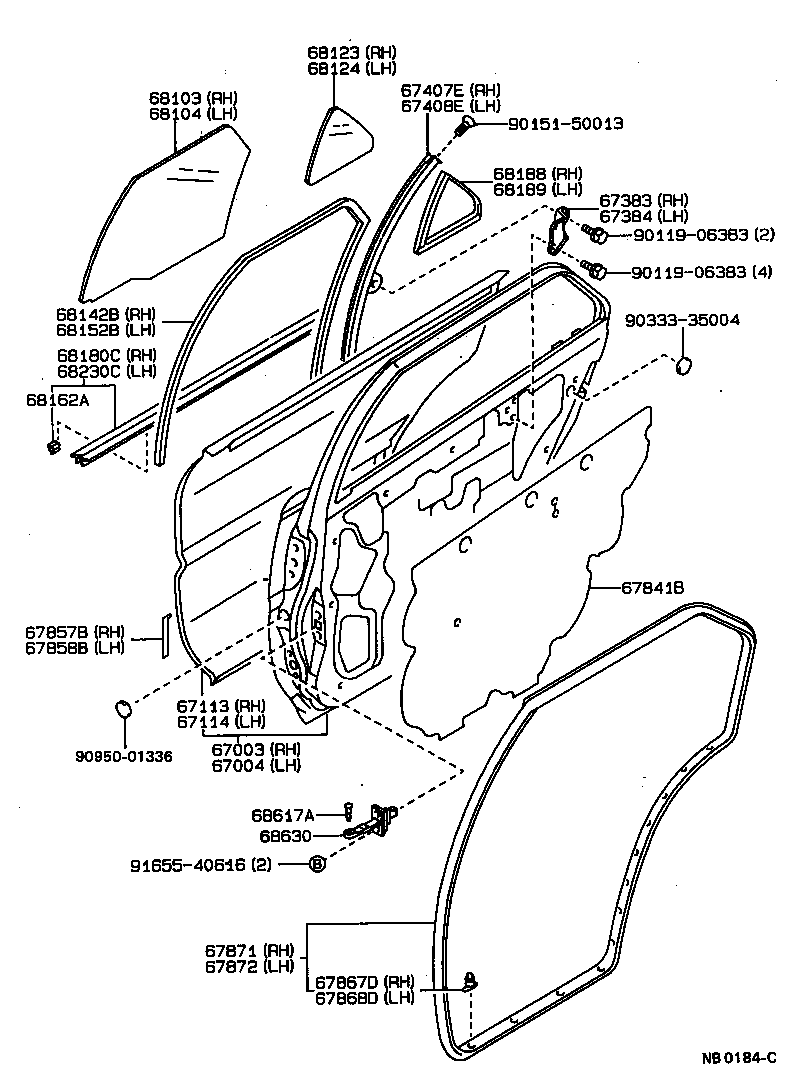

ILLUST NO. 1 OF 2(8705- )SED,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12500 |
AE9#,CE90,EE90..SED |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12500 |
AE9#,CE90,EE90..SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12140 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12140 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67383 - BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH | ||||
| 67383-12030 |
AE9#,CE90,EE90..SED,WG |
1 | ||
| 67384 - BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH | ||||
| 67384-12030 |
AE9#,CE90,EE90..SED,WG |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12140 |
AE9#,CE90,EE90..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12140 |
AE9#,CE90,EE90..SED |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-12220 |
AE9#,CE90,EE90 |
2 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-12010 |
AE9#,CE90,EE90 |
1 | ||
| 67857-12020 |
AE9#,CE90,EE90 |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-12020 |
AE9#,CE90,EE90 |
1 | ||
| 67858-12010 |
AE9#,CE90,EE90 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE95;AE92,CE90,EE90..LB,SED |
17 | ||
| 67868-12050 |
AE9#,CE90,EE90..SED ORANGE |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12080 |
AE9#,CE90,EE90..LB,SED |
17 | ||
| 67868-12050 |
AE9#,CE90,EE90..SED ORANGE |
17 | ||
| 67868-12050 |
AE95;AE92,CE90,EE90..LB,SED |
17 | ||
| 67868-12030 |
AE9#,CE90,EE90..LB,SED |
17 | ||
| 67868-12050 |
AE95;AE92,CE90,EE90..LB,SED |
17 | ||
| 67868-12050 |
AE95;AE92,CE90,EE90..LB,SED |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12290 |
AE9#,CE90,EE90..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12290 |
AE9#,CE90,EE90..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12150 |
AE9#,CE90,EE90..SED *TEM,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12180 |
AE9#,CE90,EE90..SED *TEM,T=3.5 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-12380 |
AE9#,CE90,EE90..SED *TEM,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-12380 |
AE9#,CE90,EE90..SED *TEM,T=3.5 |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-12090 |
AE9#,CE90,EE90..SED |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-12010 |
AE9#,CE90,EE90..SED |
2 | ||
| 68152-12010 |
AE9#,CE90,EE90..SED |
1 | ||
| 68162A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12160 |
CE90..STD;EE90..WG..STD;EE90..SED..(STD,XL,XLI);AE9#,CE90..SED..(XL,XLI) |
12 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-12080 |
AE9#,CE90,EE90..SED..(STD,XL,XLI) |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12200 |
AE9#,CE90,EE90..SED |
1 | ||
| 68188-12200 |
AE9#,CE90,EE90..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12190 |
AE9#,CE90,EE90..SED |
1 | ||
| 68189-12190 |
AE9#,CE90,EE90..SED |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-12050 |
AE9#,CE90,EE90..SED..(STD,XL,XLI) |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-12030 |
AE9#,CE90,EE90 |
2 | ||
| 68617-22020 |
AE9#,CE90,EE90 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12040 |
AE9#,CE90,EE90 |
2 | ||
| Common parts | ||||
| 90119-06383 | ||||
| 90151-50013 | ||||
| 90333-35004 | ||||
| 90950-01336 | ||||
| 91655-40616 | ||||
