EE90L-AEKRSW (1987)
Toyota Corolla Sed/Lb/Wg

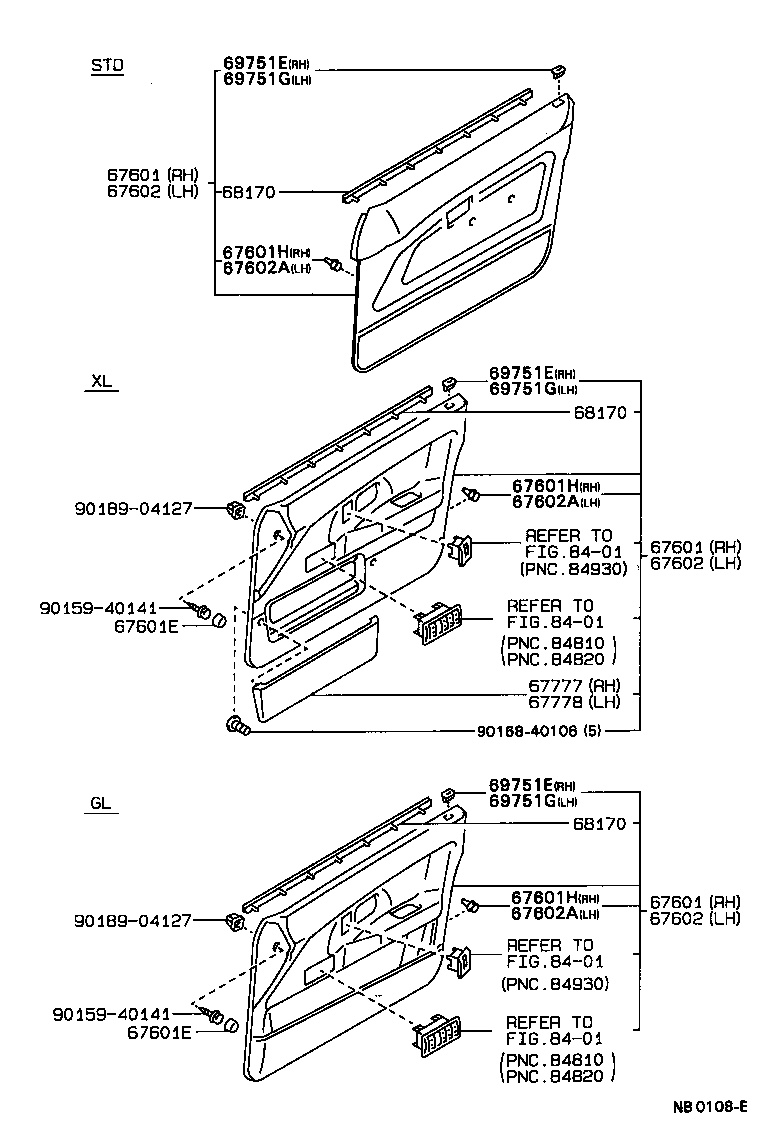

ILLUST NO. 2 OF 2(8908- )STD,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A18005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A18003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A18004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A18005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A18003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A18004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A18005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A18003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A18004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E53004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67620-1E53003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E53004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67620-1E53003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E53004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67620-1E53003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
CE90,EE90..STD;AE92..RHD..5F..CBR LH |
1 | ||
| 68172-12130 |
CE90,EE90..STD LH |
1 | ||
| 68171-12200 |
CE90,EE90..STD;AE92..RHD..5F..CBR RH |
1 | ||
| 68171-12200 |
CE90,EE90..STD RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
CE90,EE90..STD;AE92..RHD..5F..CBR LH |
1 | ||
| 68172-12130 |
CE90,EE90..STD LH |
1 | ||
| 68171-12200 |
CE90,EE90..STD;AE92..RHD..5F..CBR RH |
1 | ||
| 68171-12200 |
CE90,EE90..STD RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
CE90,EE90..STD;AE92..RHD..5F..CBR LH |
1 | ||
| 68172-12130 |
CE90,EE90..STD LH |
1 | ||
| 68171-12200 |
CE90,EE90..STD;AE92..RHD..5F..CBR RH |
1 | ||
| 68171-12200 |
CE90,EE90..STD RH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90168-40106 | ||||
| 90189-04127 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||

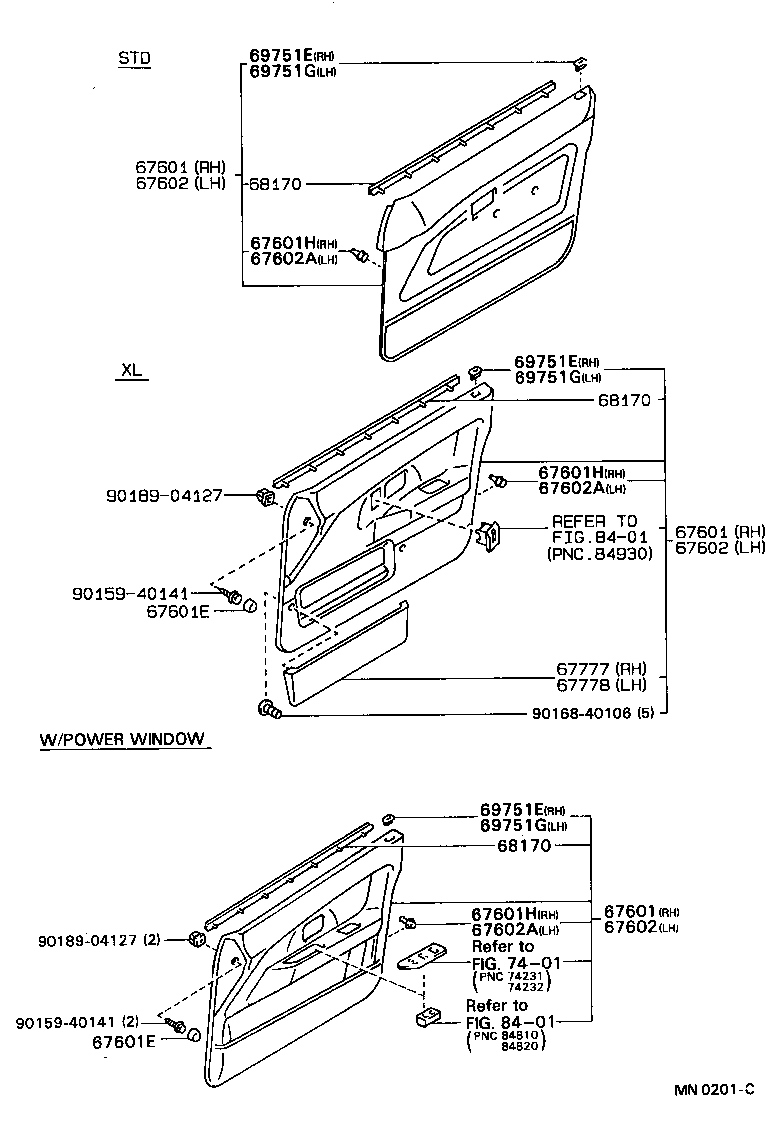

ILLUST NO. 2 OF 2(8705-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A18005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A18003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A18004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A18005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A18003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A18004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A18005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A18003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A18004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E53004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67620-1E53003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E53004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67620-1E53003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E53004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 67620-1E53003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE90,EE90..STD |
10 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
CE90,EE90..STD;AE92..RHD..5F..CBR LH |
1 | ||
| 68172-12130 |
CE90,EE90..STD LH |
1 | ||
| 68171-12200 |
CE90,EE90..STD;AE92..RHD..5F..CBR RH |
1 | ||
| 68171-12200 |
CE90,EE90..STD RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
CE90,EE90..STD;AE92..RHD..5F..CBR LH |
1 | ||
| 68172-12130 |
CE90,EE90..STD LH |
1 | ||
| 68171-12200 |
CE90,EE90..STD;AE92..RHD..5F..CBR RH |
1 | ||
| 68171-12200 |
CE90,EE90..STD RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
CE90,EE90..STD;AE92..RHD..5F..CBR LH |
1 | ||
| 68172-12130 |
CE90,EE90..STD LH |
1 | ||
| 68171-12200 |
CE90,EE90..STD;AE92..RHD..5F..CBR RH |
1 | ||
| 68171-12200 |
CE90,EE90..STD RH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
CE90,EE90..STD DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
CE90,EE90..STD SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
CE90,EE90..STD DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90168-40106 | ||||
| 90189-04127 | ||||
| Linked diagrams | ||||
| 8401 | ||||

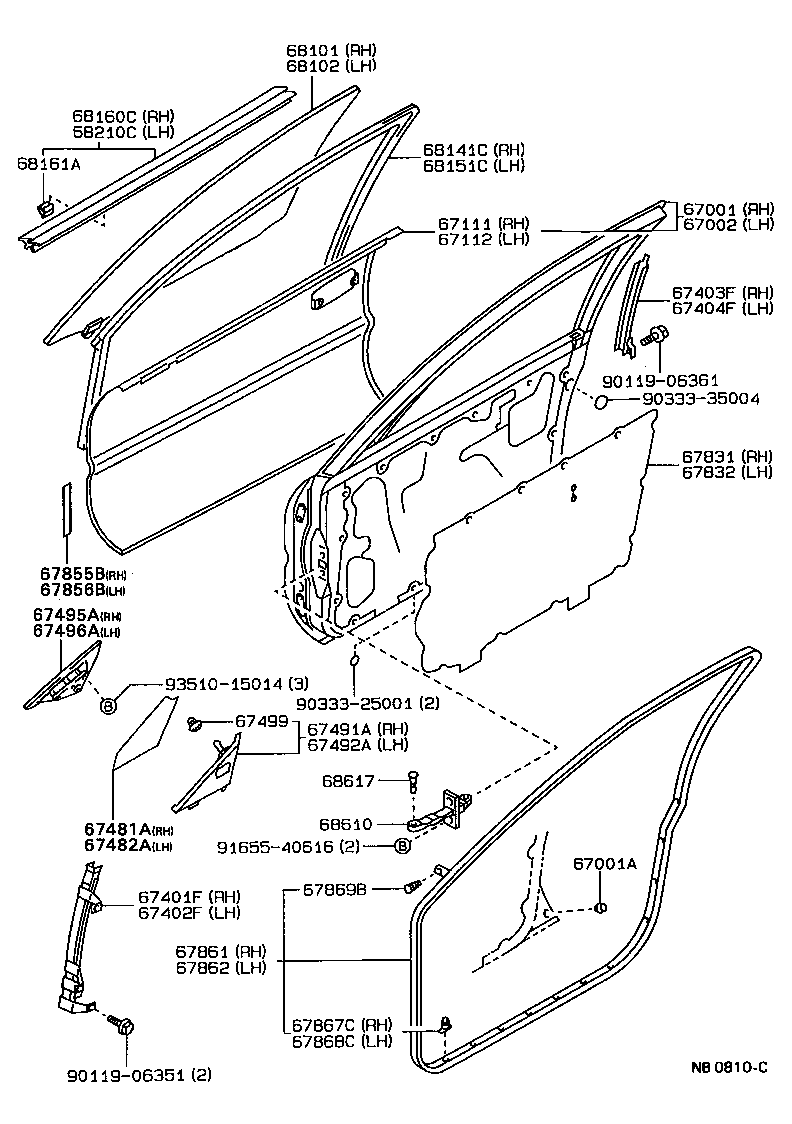

ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A140 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67001-1A141 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09035 |
AE9#,CE90,EE90 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A120 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67002-1A121 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12440 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12430 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12290 |
AE9#,CE90,EE90 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12310 |
AE9#,CE90,EE90 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12100 |
AE9#,CE90,EE90 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12100 |
AE9#,CE90,EE90 |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-12210 |
AE9#,CE90,EE90 |
1 | ||
| 67481-12210 |
AE9#,CE90,EE90..LHD |
2 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-12140 |
AE9#,CE90,EE90 |
1 | ||
| 67482-12140 |
CE90,EE90..STD |
2 | ||
| 67482-12140 |
AE9#,CE90,EE90..LHD |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12150 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67491-12160 |
AE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG) W(*RCM) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12160 |
AE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG) W(*RCM) |
1 | ||
| 67492-12130 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-12120 |
AE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
AE92,CE90,EE90 |
2 | ||
| 67499-12030 |
AE9#,CE90,EE90 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12360 |
AE9#,CE90,EE90 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-12360 |
AE9#,CE90,EE90 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 58741-12060 |
AE9#,CE90,EE90 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 58741-12060 |
AE9#,CE90,EE90 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12440 |
AE92,CE90,EE90..SED,WG |
1 | ||
| 67861-12710 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67861-12710 |
AE92,CE90,EE90..SED,WG |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12670 |
AE92,CE90,EE90..SED,WG |
1 | ||
| 67862-12670 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 67862-12580 |
AE92,CE90,EE90..SED,WG |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE9#,CE90,EE90 |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-12030 |
AE92,CE90,EE90 |
16 | ||
| 67868-12050 |
AE9#,CE90,EE90 |
16 | ||
| 67868-12050 |
AE9#,CE90,EE90 |
16 | ||
| 67868-12050 |
AE9#,CE90,EE90 |
16 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AE9#,CE90,EE90 |
2 | ||
| 67869-12020 |
AE95..SED;AE92,CE90,EE90 |
4 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12530 |
AE95..SED;AE92,CE90,EE90..SED,WG *TEM,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12530 |
AE95..SED;AE92,CE90,EE90..SED,WG *TEM,T=3.5 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12310 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 68141-12311 |
AE9#,CE90,EE90..SED |
2 | ||
| 68141-12311 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12030 |
AE95..SED;AE92,CE90,EE90..SED,WG |
2 | ||
| 68151-12031 |
AE95..SED;AE92,CE90,EE90..SED,WG |
1 | ||
| 68151-12031 |
AE9#,CE90,EE90..SED |
2 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-12170 |
CE90..STD;EE90..WG..STD;EE90..SED..(STD,XL,XLI);AE9#,CE90..SED..(XL,XLI) |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12160 |
CE90..STD;EE90..WG..STD;EE90..SED..(STD,XL,XLI);AE9#,CE90..SED..(XL,XLI) |
12 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-12120 |
CE90..STD;EE90..WG..STD;EE90..SED..(STD,XL,XLI);AE9#,CE90..SED..(XL,XLI) |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12050 |
AE9#,CE90,EE90 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-12030 |
AE9#,CE90,EE90 |
2 | ||
| 68617-22020 |
AE9#,CE90,EE90 |
2 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06361 | ||||
| 90333-25001 | ||||
| 90333-35004 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
