Toyota Corolla sed/lb/wg EE90 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty

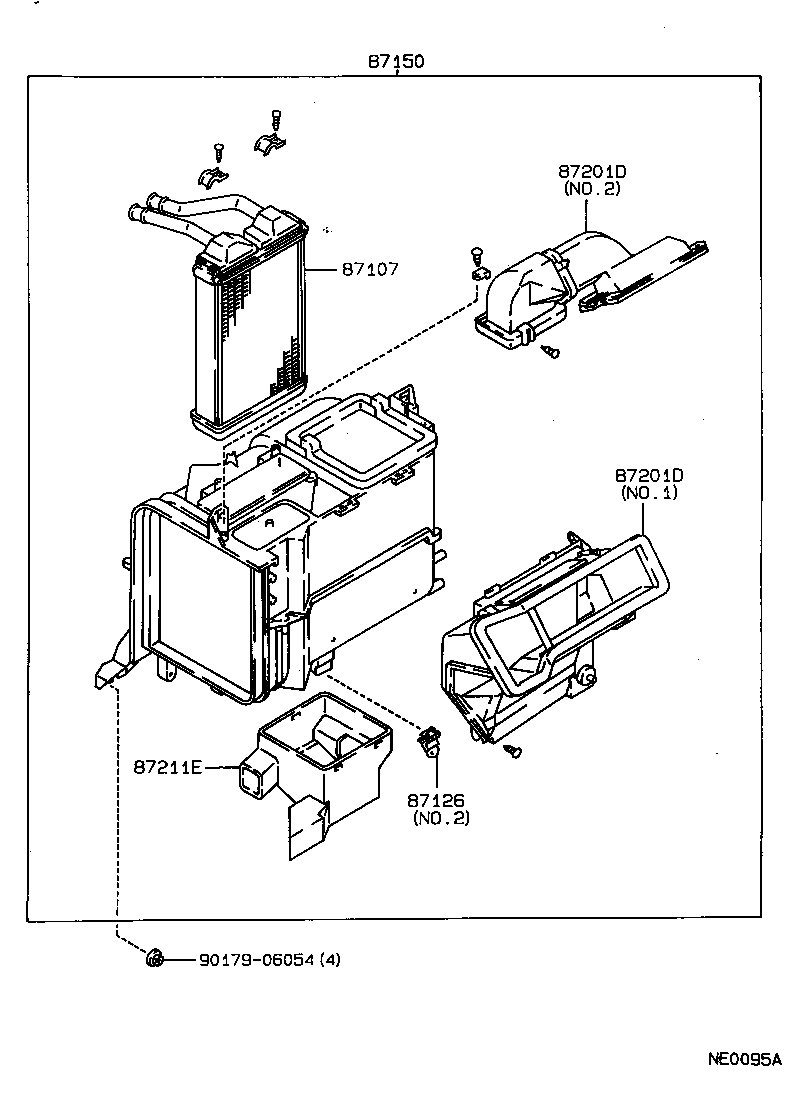

87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12410	AE9#,CE90,EE90..LHD	05/1987 - 05/1992	1
87107-12420	AE9#,CE90,EE90..LHD COLD SPEC	08/1989 - 05/1992	1
87107-12420	AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED) COLD SPEC	08/1987 - 08/1989	1
87126 - CLAMP, HEATER CONTROL
87126-12040	AE9#,CE90,EE90 NO.1	05/1987 - 08/1989	1
87126-12040	AE92,CE90,EE90 NO.1	06/1991 - 05/1992	1
87126-12050	AE9#,CE90,EE90 NO.2	08/1989 - 05/1992	2
87126-12050	AE9#,CE90,EE90 NO.2	05/1987 - 08/1989	2
87126-12040	AE9#,CE90,EE90..LHD NO.1	08/1989 - 06/1991	1
87150 - RADIATOR ASSY, HEATER
87150-12490	AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED) COLD SPEC	08/1987 - 08/1989	1
87150-12490	AE9#,CE90,EE90..LHD COLD SPEC	08/1989 - 06/1991	1
87150-12500	AE9#,CE90,EE90..LHD	05/1987 - 05/1992	1
87150-12490	AE92,CE90,EE90..LHD COLD SPEC	06/1991 - 05/1992	1
87201D - DUCT SUB-ASSY, AIR
87201-12200	AE9#,CE90,EE90..LHD NO.2	05/1987 - 05/1992	1
87201-12170	AE9#,CE90,EE90..LHD COLD SPEC,NO.1	08/1989 - 05/1992	1
87201-12220	AE9#,CE90,EE90..LHD NO.1	05/1987 - 05/1992	1
87201-12170	AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED) COLD SPEC,NO.1	08/1987 - 08/1989	1
87201D - DUCT SUB-ASSY, AIR
87201-12200	AE9#,CE90,EE90..LHD NO.2	05/1987 - 05/1992	1
87201-12170	AE9#,CE90,EE90..LHD COLD SPEC,NO.1	08/1989 - 05/1992	1
87201-12220	AE9#,CE90,EE90..LHD NO.1	05/1987 - 05/1992	1
87201-12170	AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED) COLD SPEC,NO.1	08/1987 - 08/1989	1
87211E - DUCT, AIR
87211-12150	AE9#,CE90,EE90..LHD COLD SPEC	08/1989 - 05/1992	1
87211-12150	AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED) COLD SPEC	08/1987 - 08/1989	1
87211-12140	AE9#,CE90,EE90..LHD	05/1987 - 05/1992	1
Common parts
90179-06054

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-12020	AE9#,CE90,EE90..LHD	05/1987 - 05/1992	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32020	AE9#,CE90,EE90..LHD	05/1987 - 05/1992	1
87126 - CLAMP, HEATER CONTROL
87126-12040	AE9#,CE90,EE90 NO.1	05/1987 - 08/1989	1
87126-12040	AE92,CE90,EE90 NO.1	06/1991 - 05/1992	1
87126-12050	AE9#,CE90,EE90 NO.2	08/1989 - 05/1992	2
87126-12050	AE9#,CE90,EE90 NO.2	05/1987 - 08/1989	2
87126-12040	AE9#,CE90,EE90..LHD NO.1	08/1989 - 06/1991	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-12270	AE9#,CE90,EE90..LHD	05/1987 - 05/1992	1
87138 - RESISTOR, HEATER BLOWER
87138-12120	AE9#,CE90,EE90	05/1987 - 05/1992	1
Common parts
90179-06054

EE90L-AEKDSW (1987)

ILLUST NO. 2 OF 2(8705- )

ILLUST NO. 1 OF 2(8705- )
