EE90L-AEHDSW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )LHD

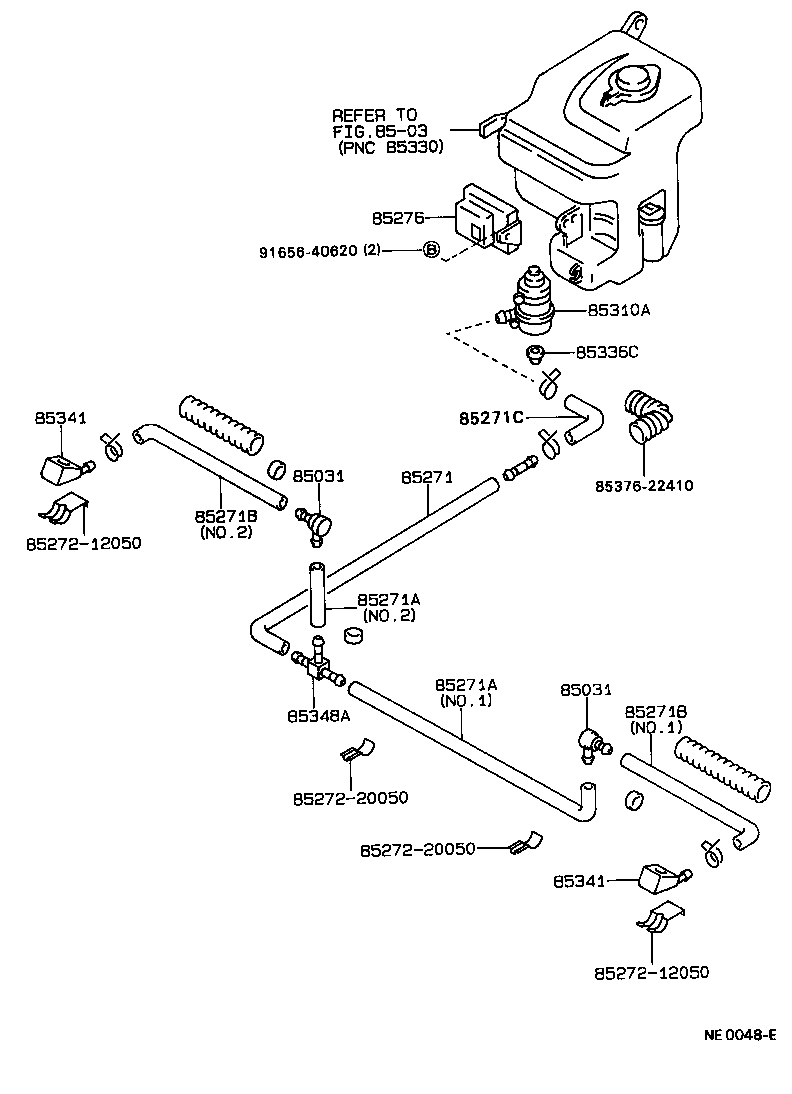

Click highlighted areas on diagram

diagram 8503 85031 85031 85271 85271A 85271A 85271B 85271B 85271C 8527212050 8527212050 8527220050 8527220050 85276 85310A 85336C 85341 85341 85348A 8537622410 9165640620
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

AE95,CE90,EE90..LHD..(LB,SED)

 2
85031-30020

AE95,CE90,EE90..LHD

 2
85031-30020

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

AE95,CE90,EE90..LHD..(LB,SED)

 2
85031-30020

AE95,CE90,EE90..LHD

 2
85031-30020

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

 2
85271 - HOSE, HEADLAMP CLEANER, NO.1
85375-12380

AE95,CE90,EE90..LHD..(LB,SED)

 1
85375-12380

AE95,CE90,EE90..LHD

 1
85375-12380

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,XL)

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85376-14301

CE90,EE90..LHD..(LB,SED)

L=75,NO.2

 1
85343-12050

CE90,EE90..LHD..(LB,SED)

NO.1

 1
90445-14071

AE95,CE90,EE90..LHD

L=50,NO.2

 1
90445-14071

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

L=50,NO.2

 1
85343-12050

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

NO.1

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85376-14301

CE90,EE90..LHD..(LB,SED)

L=75,NO.2

 1
85343-12050

CE90,EE90..LHD..(LB,SED)

NO.1

 1
90445-14071

AE95,CE90,EE90..LHD

L=50,NO.2

 1
90445-14071

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

L=50,NO.2

 1
85343-12050

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

NO.1

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85375-12510

AE95,CE90,EE90..LHD..(LB,SED)

NO.1

 1
85376-12380

AE95,CE90,EE90..LHD..(LB,SED)

NO.2

 1
85377-12380

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

NO.2

 1
85375-12510

AE95,CE90,EE90..LHD

NO.1

 1
85375-12510

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

NO.1

 1
85377-12380

AE95,CE90,EE90..LHD

NO.2

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85375-12510

AE95,CE90,EE90..LHD..(LB,SED)

NO.1

 1
85376-12380

AE95,CE90,EE90..LHD..(LB,SED)

NO.2

 1
85377-12380

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

NO.2

 1
85375-12510

AE95,CE90,EE90..LHD

NO.1

 1
85375-12510

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

NO.1

 1
85377-12380

AE95,CE90,EE90..LHD

NO.2

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
85343-95700

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

L=135

 1
85343-95700

AE95,CE90,EE90..LHD

L=135

 1
85276 - RELAY, CLEANER CONTROL
85276-12050

AE9#,CE90,EE90..LHD

 1
85276-12050

AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI)

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85280-12050

AE9#,CE90,EE90..LHD

 1
85310-12190

AE9#,CE90,EE90..LHD

 1
85280-12050

AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI)

 1
85336C - PACKING, HEADLAMP CLEANER MOTOR
85336-10010

AE9#,CE90,EE90..LHD

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-12320

AE95,CE90,EE90..LHD..(LB,SED)

 2
85035-12320

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

 2
85035-12320

AE95,CE90,EE90..LHD

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-12320

AE95,CE90,EE90..LHD..(LB,SED)

 2
85035-12320

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

 2
85035-12320

AE95,CE90,EE90..LHD

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010

AE95,CE90,EE90..LHD..(LB,SED)

 1
85352-12010

AE95,CE90,EE90..LHD

 1
85352-12010

AE95,CE90..LHD;EE90..LHD..CBR;AE92..(LB,SED)..XLI;EE90..(LB,SED)..EFI;AE92..LHD..(GL,GLI,GTI,XL)

 1
Common parts
85272-12050
85272-20050
85376-22410
91656-40620
