EE90L-AEHDSW (1987)
Toyota Corolla Sed/Lb/Wg
Production
May 1987
-
May 1992
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )EE90..3FC

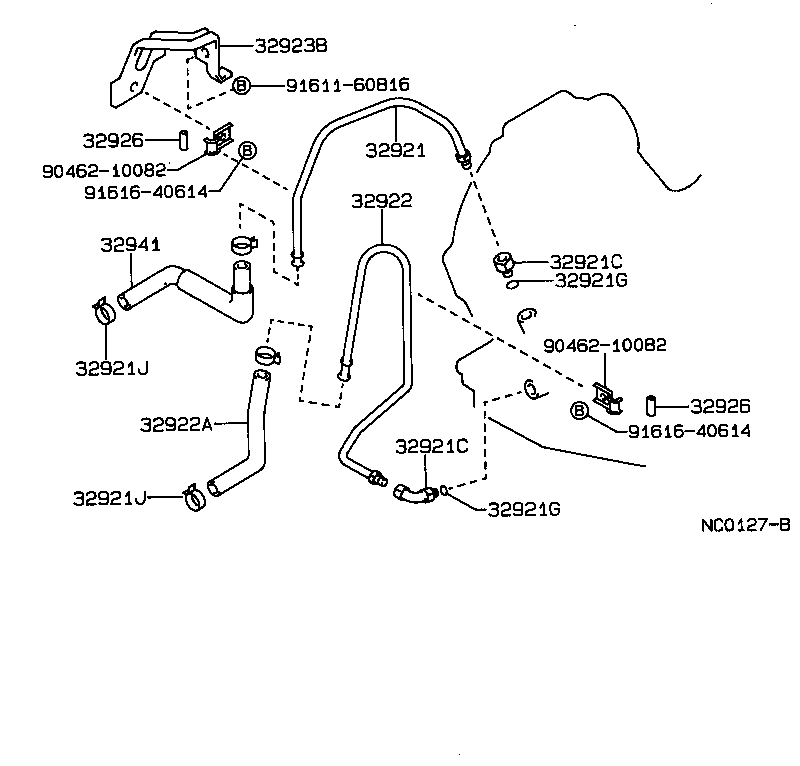

Click highlighted areas on diagram
A132L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-12371 |
EE90..3FC |
1 | ||
| 32921-12370 |
EE90..3FC |
1 | ||
| 32921-12370 |
EE90..3FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE92,EE90..3FC INLET |
1 | ||
| 90407-14003 |
AE92,EE90..3FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE92,EE90..3FC INLET |
1 | ||
| 90407-14003 |
AE92,EE90..3FC OUTLET |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE92,EE90..3FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE92,EE90..3FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE92,EE90..3FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE92,EE90..3FC |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-12201 |
EE90..3FC |
1 | ||
| 32922-12200 |
EE90..3FC |
1 | ||
| 32922-12200 |
EE90..3FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15034 |
AE92,EE90..3FC |
1 | ||
| 90445-15050 |
AE92,EE90..3FC |
1 | ||
| 90445-15034 |
AE92,EE90..3FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-12110 |
EE90..3FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
AE92,EE90..3FC L=25,ID=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
AE92,EE90..3FC L=25,ID=8 |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-12130 |
AE92,EE90..3FC |
1 | ||
| 32941-12130 |
AE92,EE90..3FC |
1 | ||
| 32941-12131 |
AE92,EE90..3FC |
1 | ||
| Common parts | ||||
| 90462-10082 | ||||
| 91611-60816 | ||||
| 91616-40614 | ||||
