COROLLA SED/LB/WG
CE90R-AEMDSW (1987)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

CE90R-AEMDSW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992

Engine 1C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8705- )CE90

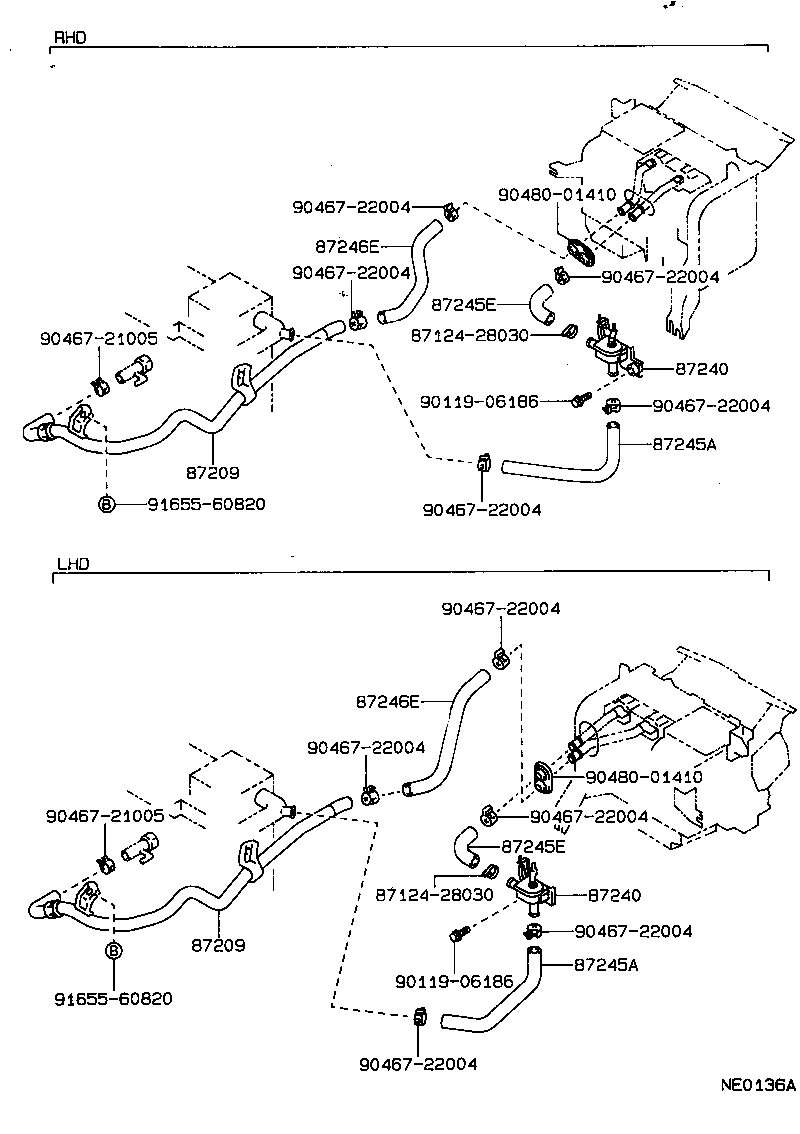

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
87209 - HOSE SUB-ASSY, WATER
87209-12400	CE90	05/1987 - 05/1992	1
87209 - HOSE SUB-ASSY, WATER
87209-12400	CE90	05/1987 - 05/1992	1
87240 - VALVE ASSY, HEATER WATER
87240-12230	AE9#,CE90,EE90..RHD	05/1987 - 05/1992	1
87240 - VALVE ASSY, HEATER WATER
87240-12230	AE9#,CE90,EE90..RHD	05/1987 - 05/1992	1
87245A - HOSE, HEATER WATER, INLET A
87245-1A170	CE90..RHD	05/1987 - 05/1992	1
87245A - HOSE, HEATER WATER, INLET A
87245-1A170	CE90..RHD	05/1987 - 05/1992	1
87245E - HOSE, HEATER WATER, INLET E
87245-1A300	AE9#,CE90,EE90..RHD PLANT.A31,M12	05/1987 - 05/1992	1
87245-1A300	AE9#,CE90,EE90..RHD	08/1989 - 05/1992	1
87245E - HOSE, HEATER WATER, INLET E
87245-1A300	AE9#,CE90,EE90..RHD PLANT.A31,M12	05/1987 - 05/1992	1
87245-1A300	AE9#,CE90,EE90..RHD	08/1989 - 05/1992	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1A250	CE90..RHD	05/1987 - 05/1992	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1A250	CE90..RHD	05/1987 - 05/1992	1
Common parts
87124-28030
90119-06186
90467-21005
90467-22004
90480-01410
91655-60820
