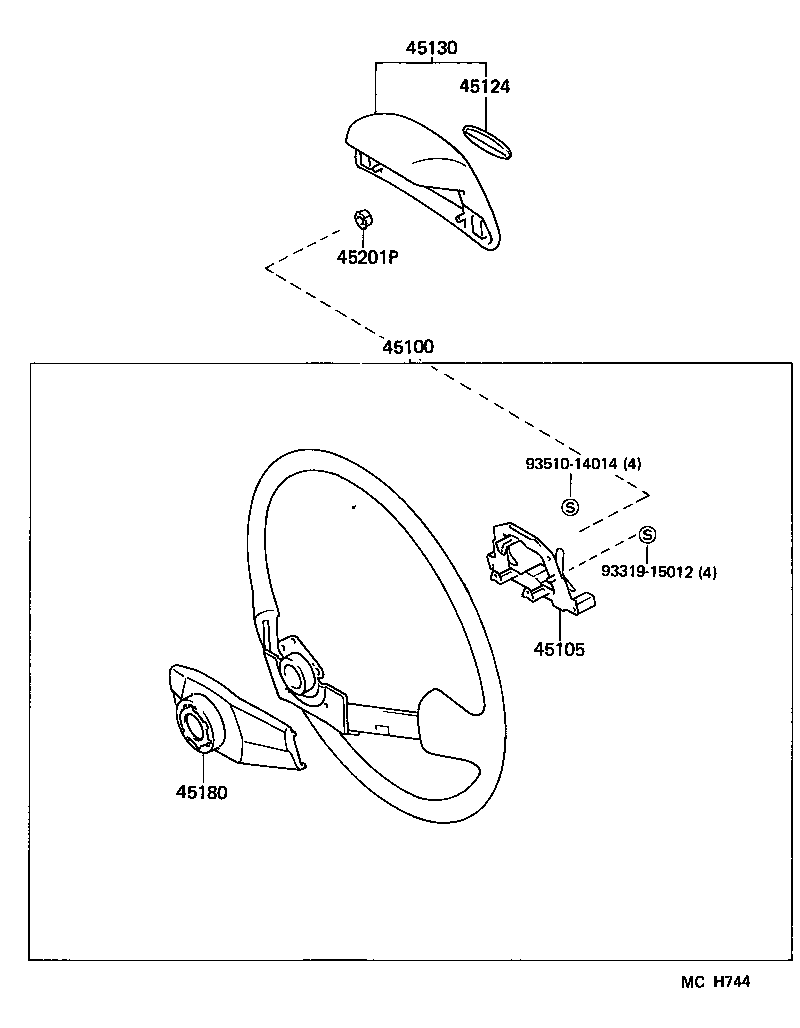

CE90L-AWMDSW (1987)
Toyota Corolla Sed/Lb/Wg
(8908- )STD,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-1253001 |
AE9#,EE90..RHD..GL;AE92,CE90,EE90..LHD..WG..XL 3-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-1253001 |
AE92,EE90..RHD..GL;AE92,CE90,EE90..WG..XL 3-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-1253005 |
AE9#,CE90,EE90..XL,XLI 3-SPOKE,URETHANE,3 SPOKE,DARK BEIGE,TRIM4# |
1 | ||
| 45100-1253001 |
AE9#,CE90,EE90..LHD..(XL,XLI) 3-SPOKE,URETHANE,3 SPOKE,BLACK,TRIM1#,8# |
1 | ||
| 45100-1250001 |
AE9#,CE90,EE90..LHD..(XL,XLI) 2-SPOKE,URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45100-1253205 |
AE9#,CE90,EE90..XL,XLI 3-SPOKE,URETHANE,3 SPOKE,DARK BEIGE,TRIM4# |
1 | ||
| 45100-1250005 |
AE9#,CE90,EE90..STD,XL,XLI 2-SPOKE,URETHANE,DARK BEIGE,TRIM4# |
1 | ||
| 45100-1250005 |
AE92,CE90,EE90..WG..(STD,XL) 2-SPOKE,URETHANE,DARK BEIGE |
1 | ||
| 45100-1257001 |
AE9#,CE90,EE90..STD,XL,XLI 2-SPOKE,URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45100-1253201 |
AE9#,CE90,EE90..XL,XLI 3-SPOKE,URETHANE,3 SPOKE,BLACK,TRIM1#,8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-12050 |
AE9#,CE90,EE90..XL,XLI 3 SPOKE |
1 | ||
| 45105-12060 |
AE92,CE90,EE90..STD,XL |
1 | ||
| 45105-12050 |
AE9#,CE90,EE90..XL,XLI 3 SPOKE |
1 | ||
| 45105-12110 |
AE9#,CE90,EE90..STD,XL,XLI |
2 | ||
| 45124 - ORNAMENT, STEERING WHEEL MARK | ||||
| 45124-1202001 |
AE92,CE90,EE90..LHD..XL BLACK,TRIM1#,8# |
1 | ||
| 45124-1202005 |
AE92,CE90,EE90..STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 45124-1213001 |
AE92,CE90,EE90..STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 45124-12040 |
AE92,CE90,EE90..GL,GLI,XL,XLI |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-1253001 |
AE92,CE90,EE90..LHD..XL 3 SPOKE,BLACK,TRIM1#,8# |
1 | ||
| 45130-1253005 |
AE92,CE90,EE90..XL 3 SPOKE,DARK BEIGE,TRIM4# |
1 | ||
| 45130-1252001 |
AE92,CE90,EE90..LHD..XL BLACK,TRIM1#,8# |
1 | ||
| 45130-1253105 |
AE92,CE90,EE90..XL 3 SPOKE,DARK BEIGE,TRIM4# |
1 | ||
| 45130-1253101 |
AE92,CE90,EE90..GL,GLI,XL,XLI BLACK,TRIM1# |
1 | ||
| 45130-1252005 |
AE92,CE90,EE90..STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 45130-1261001 |
AE92,CE90,EE90..STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 45130-1253104 |
AE92,CE90,EE90..GL,GLI,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-1207005 |
AE9#,CE90,EE90..XL,XLI 3 SPOKE,DARK BEIGE,TRIM4# |
1 | ||
| 45180-1207001 |
AE92,EE90..RHD..GL;AE92,CE90,EE90..WG..XL BLACK,TRIM1# |
1 | ||
| 45180-1206001 |
AE9#,CE90,EE90..LHD..(XL,XLI) BLACK,TRIM1#,8# |
1 | ||
| 45180-1206005 |
AE92,CE90,EE90..WG..(STD,XL) DARK BEIGE |
1 | ||
| 45180-1207001 |
AE9#,CE90,EE90..XL,XLI 3 SPOKE,BLACK,TRIM1#,8# |
1 | ||
| 45180-1206005 |
AE9#,CE90,EE90..STD,XL,XLI DARK BEIGE,TRIM4# |
1 | ||
| 45180-1204001 |
AE9#,CE90,EE90..STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 45180-1207001 |
AE9#,CE90,EE90..LHD..(XL,XLI) 3 SPOKE,BLACK,TRIM1#,8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE9#,CE90;EE90..CBR;EE90..GLI,XLI;EE90..WG..STD..EFI |
1 | ||
| Common parts | ||||
| 93319-15012 | ||||
| 93510-14014 | ||||
(8705-8908)STD,XL,XLI
2 SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45015B - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2 | ||||
| 45015-12010 |
AE95..XL,XLI;AE92,CE90,EE90..(STD,XL)..(CBR,DSL) |
1 | ||
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-1253001 |
AE9#,EE90..RHD..GL;AE92,CE90,EE90..LHD..WG..XL 3-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-1253001 |
AE92,EE90..RHD..GL;AE92,CE90,EE90..WG..XL 3-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-1253005 |
AE9#,CE90,EE90..XL,XLI 3-SPOKE,URETHANE,3 SPOKE,DARK BEIGE,TRIM4# |
1 | ||
| 45100-1253001 |
AE9#,CE90,EE90..LHD..(XL,XLI) 3-SPOKE,URETHANE,3 SPOKE,BLACK,TRIM1#,8# |
1 | ||
| 45100-1250001 |
AE9#,CE90,EE90..LHD..(XL,XLI) 2-SPOKE,URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45100-1253205 |
AE9#,CE90,EE90..XL,XLI 3-SPOKE,URETHANE,3 SPOKE,DARK BEIGE,TRIM4# |
1 | ||
| 45100-1250005 |
AE9#,CE90,EE90..STD,XL,XLI 2-SPOKE,URETHANE,DARK BEIGE,TRIM4# |
1 | ||
| 45100-1250005 |
AE92,CE90,EE90..WG..(STD,XL) 2-SPOKE,URETHANE,DARK BEIGE |
1 | ||
| 45100-1257001 |
AE9#,CE90,EE90..STD,XL,XLI 2-SPOKE,URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45100-1253201 |
AE9#,CE90,EE90..XL,XLI 3-SPOKE,URETHANE,3 SPOKE,BLACK,TRIM1#,8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-12050 |
AE9#,CE90,EE90..XL,XLI 3 SPOKE |
1 | ||
| 45105-12060 |
AE92,CE90,EE90..STD,XL |
1 | ||
| 45105-12050 |
AE9#,CE90,EE90..XL,XLI 3 SPOKE |
1 | ||
| 45105-12110 |
AE9#,CE90,EE90..STD,XL,XLI |
2 | ||
| 45124 - ORNAMENT, STEERING WHEEL MARK | ||||
| 45124-1202001 |
AE92,CE90,EE90..LHD..XL BLACK,TRIM1#,8# |
1 | ||
| 45124-1202005 |
AE92,CE90,EE90..STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 45124-1213001 |
AE92,CE90,EE90..STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 45124-12040 |
AE92,CE90,EE90..GL,GLI,XL,XLI |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-1253001 |
AE92,CE90,EE90..LHD..XL 3 SPOKE,BLACK,TRIM1#,8# |
1 | ||
| 45130-1253005 |
AE92,CE90,EE90..XL 3 SPOKE,DARK BEIGE,TRIM4# |
1 | ||
| 45130-1252001 |
AE92,CE90,EE90..LHD..XL BLACK,TRIM1#,8# |
1 | ||
| 45130-1253105 |
AE92,CE90,EE90..XL 3 SPOKE,DARK BEIGE,TRIM4# |
1 | ||
| 45130-1253101 |
AE92,CE90,EE90..GL,GLI,XL,XLI BLACK,TRIM1# |
1 | ||
| 45130-1252005 |
AE92,CE90,EE90..STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 45130-1261001 |
AE92,CE90,EE90..STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 45130-1253104 |
AE92,CE90,EE90..GL,GLI,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-1207005 |
AE9#,CE90,EE90..XL,XLI 3 SPOKE,DARK BEIGE,TRIM4# |
1 | ||
| 45180-1207001 |
AE92,EE90..RHD..GL;AE92,CE90,EE90..WG..XL BLACK,TRIM1# |
1 | ||
| 45180-1206001 |
AE9#,CE90,EE90..LHD..(XL,XLI) BLACK,TRIM1#,8# |
1 | ||
| 45180-1206005 |
AE92,CE90,EE90..WG..(STD,XL) DARK BEIGE |
1 | ||
| 45180-1207001 |
AE9#,CE90,EE90..XL,XLI 3 SPOKE,BLACK,TRIM1#,8# |
1 | ||
| 45180-1206005 |
AE9#,CE90,EE90..STD,XL,XLI DARK BEIGE,TRIM4# |
1 | ||
| 45180-1204001 |
AE9#,CE90,EE90..STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 45180-1207001 |
AE9#,CE90,EE90..LHD..(XL,XLI) 3 SPOKE,BLACK,TRIM1#,8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE9#,CE90;EE90..CBR;EE90..GLI,XLI;EE90..WG..STD..EFI |
1 | ||
| Common parts | ||||
| 93319-15012 | ||||
| 93510-14014 | ||||
