Toyota Corolla sed/lb/wg CE90 BACK DOOR LOCK & HANDLE

Part #	Description	Period	Qty
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-12050	AE92,CE90,EE90..LHD..LB	05/1987 - 05/1992	1
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-12050	AE92,CE90,EE90..LHD..LB	05/1987 - 05/1992	1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034	AE92,CE90,EE90..LB	05/1987 - 08/1989	2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034	AE92,CE90,EE90..LB	05/1987 - 08/1989	2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-12180	AE92,CE90,EE90..LHD..LB	05/1987 - 05/1992	1
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-12180	AE92,CE90,EE90..LHD..LB	05/1987 - 05/1992	1
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-12030	AE92,CE90,EE90..LB	05/1987 - 08/1988	2
68801-12031	AE92,CE90,EE90..LB	08/1988 - 05/1992	2
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-12030	AE92,CE90,EE90..LB	05/1987 - 08/1988	2
68801-12031	AE92,CE90,EE90..LB	08/1988 - 05/1992	2
68810B - PAD, BACK DOOR HINGE
68838-14021	AE92,CE90,EE90..LB..(CBR,DSL)	05/1987 - 08/1988	2
68838-14022	AE9#,CE90,EE90..LB,WG	08/1988 - 05/1992	2
68810B - PAD, BACK DOOR HINGE
68838-14021	AE92,CE90,EE90..LB..(CBR,DSL)	05/1987 - 08/1988	2
68838-14022	AE9#,CE90,EE90..LB,WG	08/1988 - 05/1992	2
68950C - STAY ASSY, BACK DOOR, RH
68950-19585	AE92,CE90,EE90..LB..(CBR,DSL) W(*RW)	05/1987 - 08/1988	1
68950-19575	AE92,CE90,EE90..LB..(CBR,DSL)	05/1987 - 08/1988	1
68950-19595	AE92,CE90,EE90..LB..XL W(REAR AIR SPOILER)	05/1988 - 08/1988	1
68950-19576	AE92,CE90,EE90..LB..(GL,GLI,XL,XLI)	08/1988 - 05/1992	1
68950-19596	AE92,CE90,EE90..LB..XL W(REAR AIR SPOILER)	08/1988 - 08/1989	1
68950-19586	AE92,CE90,EE90..LB..(GL,GLI,XL,XLI) W(*RW)	08/1988 - 05/1992	1
68950-19596	AE92,CE90,EE90..LB..(XL,XLI) W(REAR AIR SPOILER & *RW)	08/1989 - 05/1992	1
68960 - STAY ASSY, BACK DOOR, LH
68960-19275	AE92,CE90,EE90..LB..(CBR,DSL) W(*RW)	05/1987 - 08/1988	1
68960-19265	AE92,CE90,EE90..LB..(CBR,DSL)	05/1987 - 08/1988	1
68960-19285	AE92,CE90,EE90..LB..XL W(REAR AIR SPOILER)	05/1988 - 08/1988	1
68960-19286	AE92,CE90,EE90..LB..XL W(REAR AIR SPOILER)	08/1988 - 08/1989	1
68960-19276	AE92,CE90,EE90..LB..(GL,GLI,XL,XLI) W(*RW)	08/1988 - 05/1992	1
68960-19286	AE92,CE90,EE90..LB..(XL,XLI) W(REAR AIR SPOILER & *RW)	08/1989 - 05/1992	1
68960-19266	AE92,CE90,EE90..LB..(GL,GLI,XL,XLI)	08/1988 - 05/1992	1
68961 - BOLT, BACK DOOR STAY
68961-12040	AE92,CE90,EE90..LB..(CBR,DSL)	05/1987 - 08/1989	2
68961-14030	AE92,CE90,EE90..LB TOKICO	08/1989 - 05/1992	1
68961-12040	AE92,CE90,EE90..LB KAYABA	08/1989 - 05/1992	2
68961 - BOLT, BACK DOOR STAY
68961-12040	AE92,CE90,EE90..LB..(CBR,DSL)	05/1987 - 08/1989	2
68961-14030	AE92,CE90,EE90..LB TOKICO	08/1989 - 05/1992	1
68961-12040	AE92,CE90,EE90..LB KAYABA	08/1989 - 05/1992	2
69350 - LOCK ASSY, BACK DOOR
69350-12110	AE92,CE90,EE90..LB	05/1987 - 05/1992	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-12180	AE92,CE90,EE90..LB	05/1987 - 05/1992	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-12180	AE92,CE90,EE90..LB	05/1987 - 05/1992	1
Common parts
90105-06119
90105-08147
90119-06239
90159-80019
90179-08069
90179-08096
91651-40610
91651-40612

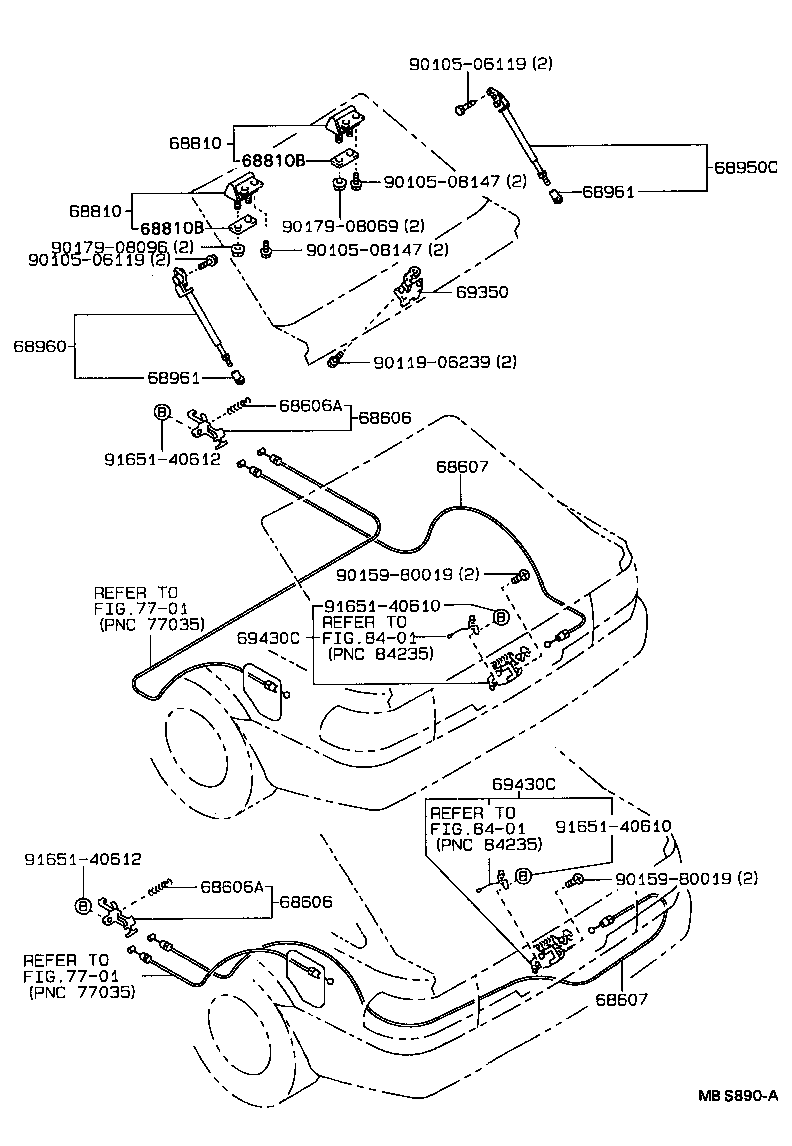

Linked diagrams
7701
8401

CE90L-ALMDSW (1987)

(8705- )LB
