CE90L-ALMDSW (1987)
Toyota Corolla Sed/Lb/Wg
Production
May 1987
-
May 1992
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-32010 |
CE90 |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-32010 |
CE90 |
1 | ||
| 31204-20100 |
CE90 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-32120 |
CE90 |
1 | ||
| 31210-32030 |
CE90 |
1 | ||
| 31210-32121 |
CE90 |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-32020 |
CE90 L=81.2 |
1 | ||
| 31230-32060 |
CE90 L=84.4 |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-32020 |
CE90 TYPE 7 |
1 | ||
| 31232-32010 |
CE90 TYPE 6 |
1 | ||
| 31232-20020 |
AE95,CE90 TYPE 5 |
1 | ||
| 31232-32030 |
CE90 TYPE 8 |
1 | ||
| 31232-20020 |
CE90 TYPE 5 |
1 | ||
| 31232-32050 |
CE90 TYPE 9 |
1 | ||
| 31232-32030 |
AE95,CE90 TYPE 8 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-30030 |
CE90 |
1 | ||
| 31236-32010 |
CE90 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-12220 |
CE90 |
1 | ||
| 31250-12220 |
CE90 |
1 | ||
| 31250-12280 |
CE90 |
1 | ||
| 31250-12163 |
CE90 |
1 | ||
| 31250-12260 |
CE90 |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
(8705- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

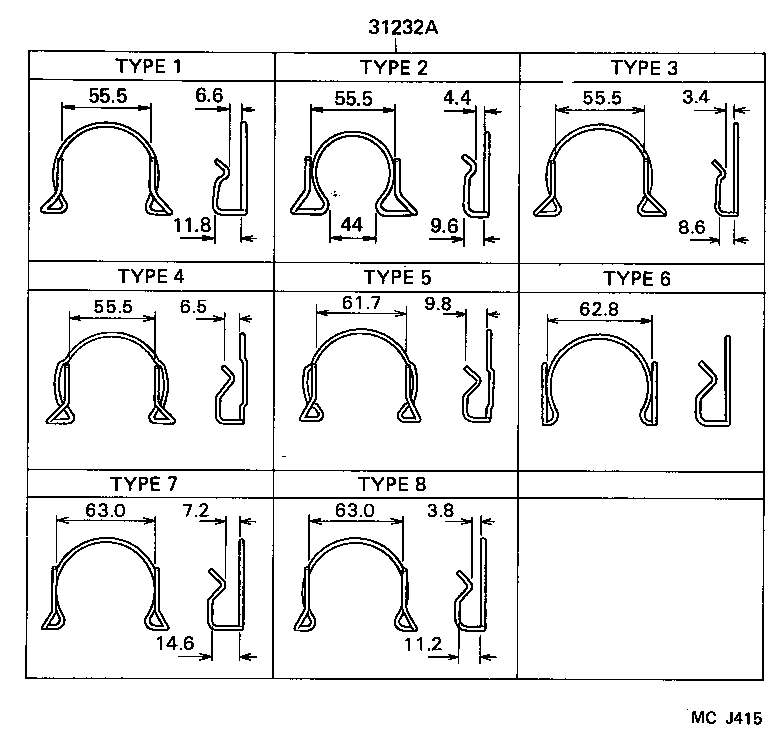

| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-32020 |
CE90 TYPE 7 |
1 | ||
| 31232-32010 |
CE90 TYPE 6 |
1 | ||
| 31232-20020 |
AE95,CE90 TYPE 5 |
1 | ||
| 31232-32030 |
CE90 TYPE 8 |
1 | ||
| 31232-20020 |
CE90 TYPE 5 |
1 | ||
| 31232-32050 |
CE90 TYPE 9 |
1 | ||
| 31232-32030 |
AE95,CE90 TYPE 8 |
1 | ||
