CE90L-AEMRSW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - Aug 1989
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )CE90..LHD

Click highlighted areas on diagram

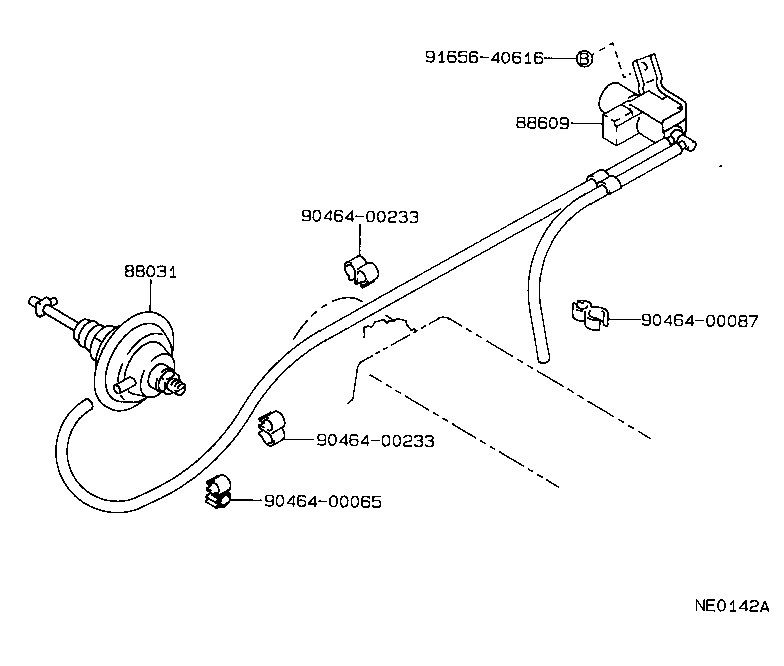

HEATER IDLE UP

diagram 88031 88609 9046400065 9046400087 9046400233 9046400233 9165640616
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12150

CE90..LHD

 1
88031-12150

CE90..LHD

 1
88609 - DEVICE SUB-ASSY, IDLE UP
88609-12510

CE90..LHD

COLD SPEC

 1
88609-12490

CE90..LHD

ANTI-PROJECT MESURE COUNTRIES

 1
88609-12510

CE90..LHD

COLD SPEC

 1
Common parts
90464-00065
90464-00087
90464-00233
91656-40616

(8705- )CE90,EE90..LHD

Click highlighted areas on diagram

AIR CONDITIONER IDLE UP

diagram 88031 88031 88609 88609 88691 88691C 88691C 9046400065 9046400082 9046400087 9046400132 9046400233 9046400233 9046400248 9064600082 9165140614 9165160614
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12150

CE90..LHD

 1
88031-12150

CE90..LHD

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12150

CE90..LHD

 1
88031-12150

CE90..LHD

 1
88609 - DEVICE SUB-ASSY, IDLE UP
88609-12510

CE90..LHD

COLD SPEC

 1
88609-12490

CE90..LHD

ANTI-PROJECT MESURE COUNTRIES

 1
88609-12510

CE90..LHD

COLD SPEC

 1
88609 - DEVICE SUB-ASSY, IDLE UP
88609-12510

CE90..LHD

COLD SPEC

 1
88609-12490

CE90..LHD

ANTI-PROJECT MESURE COUNTRIES

 1
88609-12510

CE90..LHD

COLD SPEC

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12430

CE90..LHD

ANTI-PROJECT MESURE COUNTRIES

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

CE90..LHD

*H,L=420,MARK=#0

 1
90999-92004

CE90..LHD

*H,L=900,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

CE90..LHD

*H,L=420,MARK=#0

 1
90999-92004

CE90..LHD

*H,L=900,MARK=#*

 1
Common parts
90464-00065
90464-00082
90464-00087
90464-00132
90464-00233
90464-00248
90646-00082
91651-40614
91651-60614
