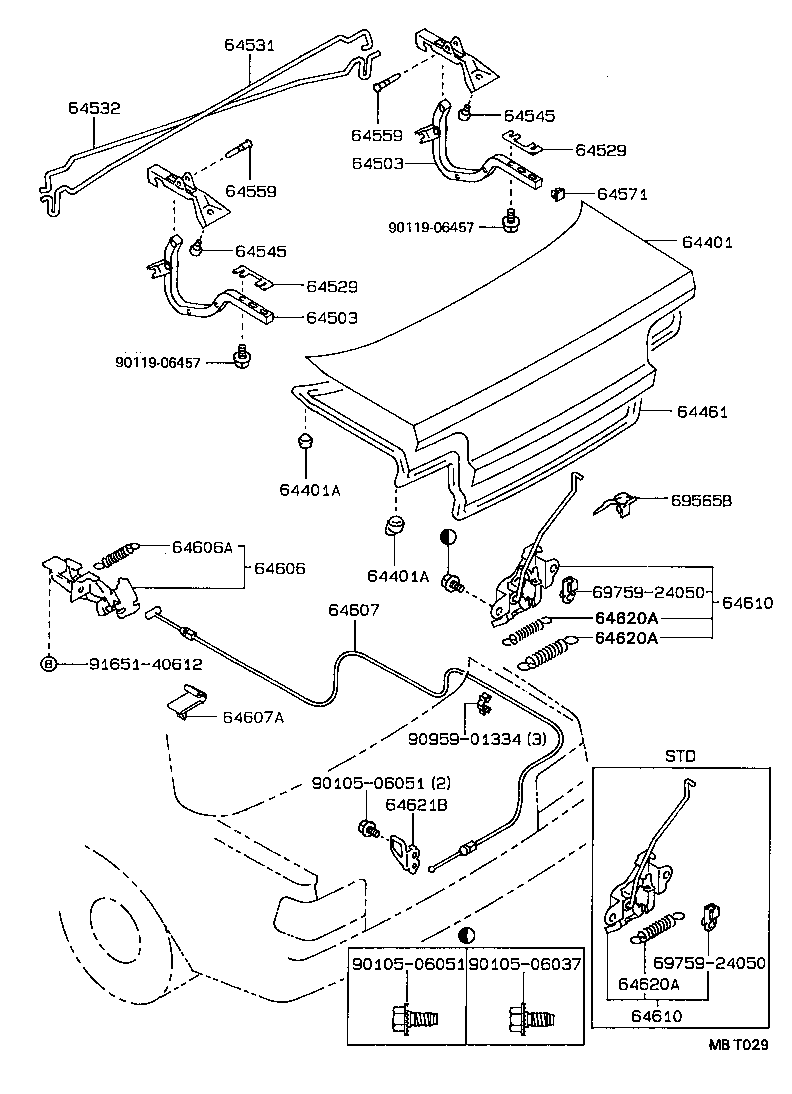

CE90L-AEMDSW (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-1A370 |
AE9#,CE90,EE90..SED |
1 | ||
| 64401-1A372 |
AE9#,CE90,EE90..SED |
1 | ||
| 64401-1A370 |
AE9#,CE90,EE90..SED |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
AE9#,CE90,EE90..SED FR |
2 | ||
| 90541-20002 |
AE9#,CE90,EE90..SED RR |
4 | ||
| 64459-12010 |
AE9#,CE90,EE90..SED RR |
4 | ||
| 90541-20002 |
AE9#,CE90,EE90..SED RR |
4 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
AE9#,CE90,EE90..SED FR |
2 | ||
| 90541-20002 |
AE9#,CE90,EE90..SED RR |
4 | ||
| 64459-12010 |
AE9#,CE90,EE90..SED RR |
4 | ||
| 90541-20002 |
AE9#,CE90,EE90..SED RR |
4 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-12350 |
AE9#,CE90,EE90..SED |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-12030 |
AE9#,CE90,EE90..SED |
2 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-12030 |
AE9#,CE90,EE90..SED |
2 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
AE9#,CE90,EE90..SED |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
AE9#,CE90,EE90..SED |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-12240 |
AE9#,CE90,EE90..SED |
1 | ||
| 64531-12250 |
AE9#,CE90,EE90..SED |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-12240 |
AE9#,CE90,EE90..SED |
1 | ||
| 64532-12230 |
AE9#,CE90,EE90..SED |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-09014 |
AE9#,CE90,EE90..SED |
2 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-09014 |
AE9#,CE90,EE90..SED |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32010 |
AE9#,CE90,EE90..SED |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32010 |
AE9#,CE90,EE90..SED |
2 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-30020 |
AE9#,CE90,EE90..SED |
2 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-12050 |
AE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI) |
2 | ||
| 90506-09034 |
AE9#,CE90,EE90..SED..(GL,GLI,XL,XLI) |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-12340 |
AE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) |
1 | ||
| 64607-12340 |
AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI) |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-12120 |
AE9#,CE90,EE90..SED..(GL,GLI,XL,XLI) |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-12120 |
AE9#,CE90,EE90..SED..(GL,GLI,XL,XLI) |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-07013 |
AE9#,CE90,EE90..SED WD=0.65,CW=12.5 |
1 | ||
| 90506-07013 |
AE9#,CE90,EE90..SED..(GL,GLI,XL,XLI) WD=0.65,CW=12.5 |
1 | ||
| 90506-06008 |
AE9#,CE90,EE90..SED..(GL,GLI,XL,XLI) WD=0.55,CW=13.25 |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-07013 |
AE9#,CE90,EE90..SED WD=0.65,CW=12.5 |
1 | ||
| 90506-07013 |
AE9#,CE90,EE90..SED..(GL,GLI,XL,XLI) WD=0.65,CW=12.5 |
1 | ||
| 90506-06008 |
AE9#,CE90,EE90..SED..(GL,GLI,XL,XLI) WD=0.55,CW=13.25 |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-07013 |
AE9#,CE90,EE90..SED WD=0.65,CW=12.5 |
1 | ||
| 90506-07013 |
AE9#,CE90,EE90..SED..(GL,GLI,XL,XLI) WD=0.65,CW=12.5 |
1 | ||
| 90506-06008 |
AE9#,CE90,EE90..SED..(GL,GLI,XL,XLI) WD=0.55,CW=13.25 |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-12070 |
AE9#,CE90,EE90..SED |
1 | ||
| 69565B - FUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69565-12040 |
AE9#,CE90,EE90..SED |
1 | ||
| Common parts | ||||
| 69759-24050 | ||||
| 90105-06037 | ||||
| 90105-06051 | ||||
| 90119-06457 | ||||
| 90959-01334 | ||||
| 91651-40612 | ||||
