AE95R-AEMNUW (1987)

Toyota Corolla Sed/Lb/Wg

Production Oct 1987 - Aug 1990
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

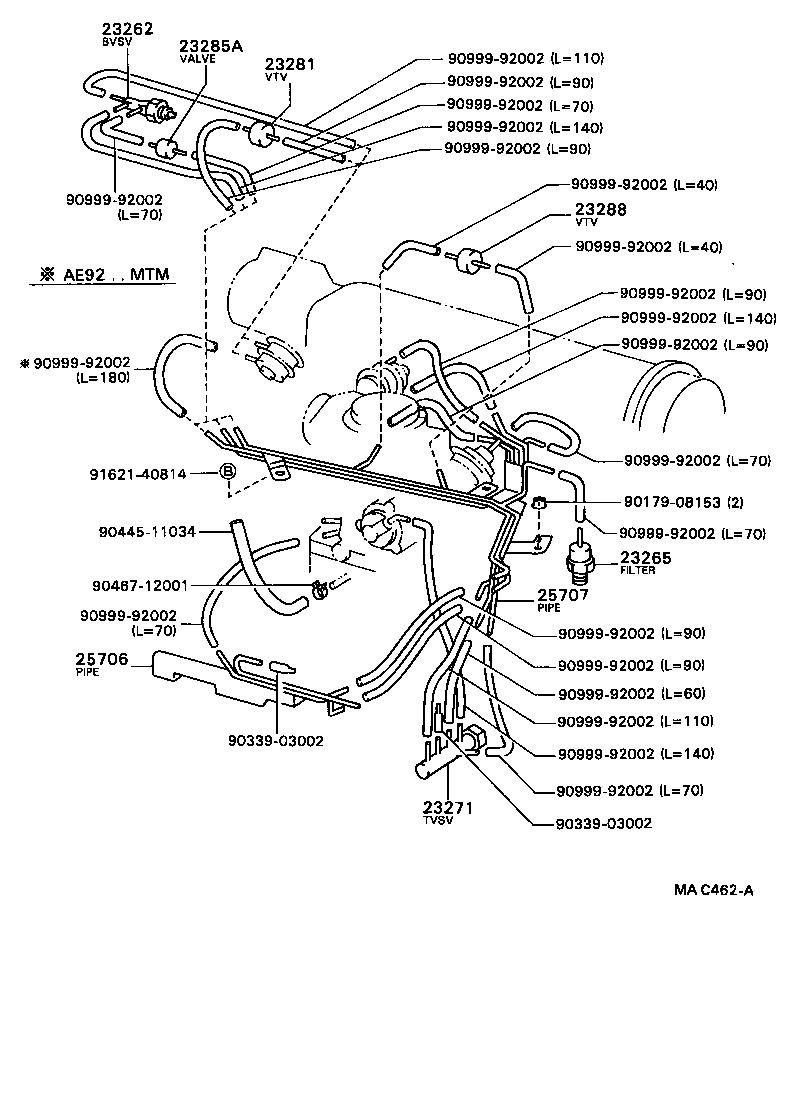

(8908- )4AF

Click highlighted areas on diagram

diagram 23262 23265 23271 23281 23285A 23288 25706 25707 9017908153 9033903002 9033903002 9044511034 9046712001 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9162140814
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05085

4AF..AE95;4AF..AE92..LB,SED

 1
90925-05085

4AF..AE9#

 1
23265 - FILTER, GAS, NO.1
90917-11022

4AF#..AE9#

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AE9#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01095

4AF..AE95;4AF..AE92..3FC

 1
90925-01095

4AF..AE9#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AE9#

 1
23288 - JET, NO.1
90925-01091

4AF..AE9#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AE9#

 1
25706-16210

4AF..AE9#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16040

4AF..AE9#

 1
25707-16140

4AF..AE9#

 1
Common parts
90179-08153
90339-03002
90445-11034
90467-12001
90999-92002
91621-40814

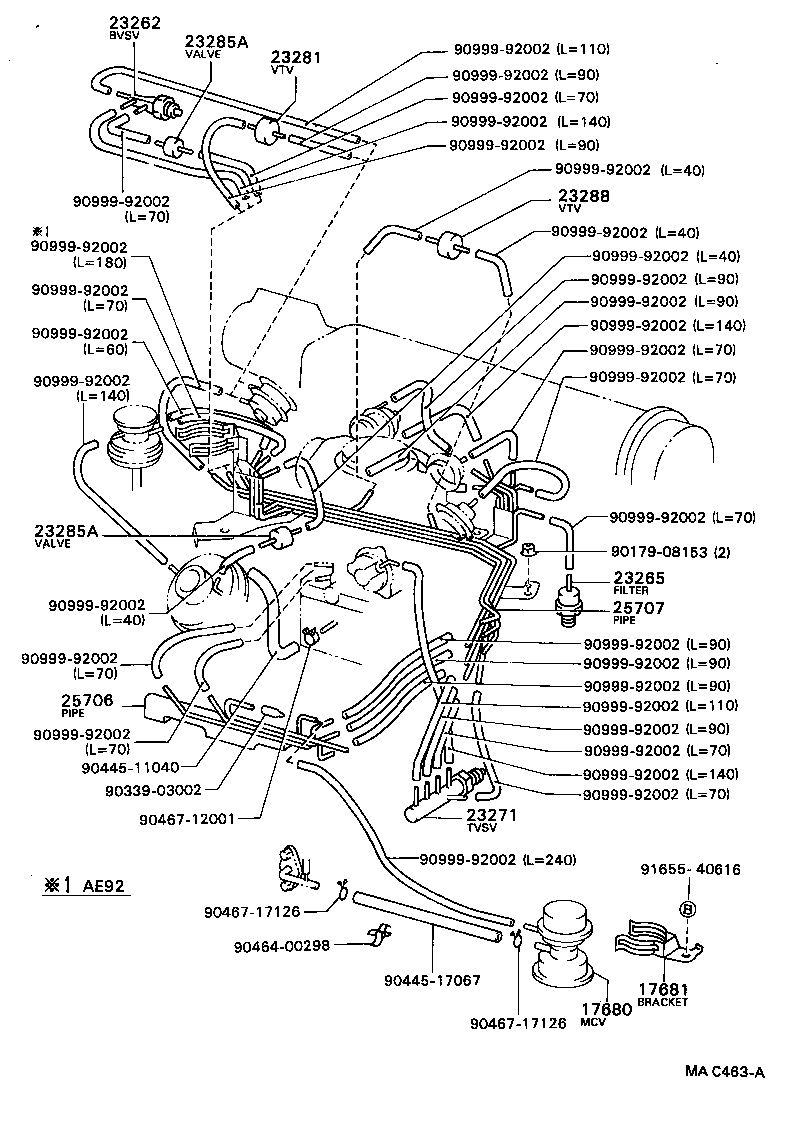

(8908-8911)4AF

Click highlighted areas on diagram

EX.EMISSION CONT.=PHASE C/ANNEX25

diagram 17680 17681 23262 23265 23271 23281 23285A 23285A 23288 25706 25707 9017908153 9033903002 9044511040 9044517067 9046400298 9046712001 9046717126 9046717126 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9165540616
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05085

4AF..AE95;4AF..AE92..LB,SED

 1
90925-05085

4AF..AE9#

 1
23265 - FILTER, GAS, NO.1
90917-11022

4AF#..AE9#

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AE9#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01095

4AF..AE95;4AF..AE92..3FC

 1
90925-01095

4AF..AE9#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AE9#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AE9#

 1
23288 - JET, NO.1
90925-01091

4AF..AE9#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AE9#

 1
25706-16210

4AF..AE9#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16040

4AF..AE9#

 1
25707-16140

4AF..AE9#

 1
Common parts
90179-08153
90339-03002
90445-11040
90445-17067
90464-00298
90467-12001
90467-17126
90999-92002
91655-40616

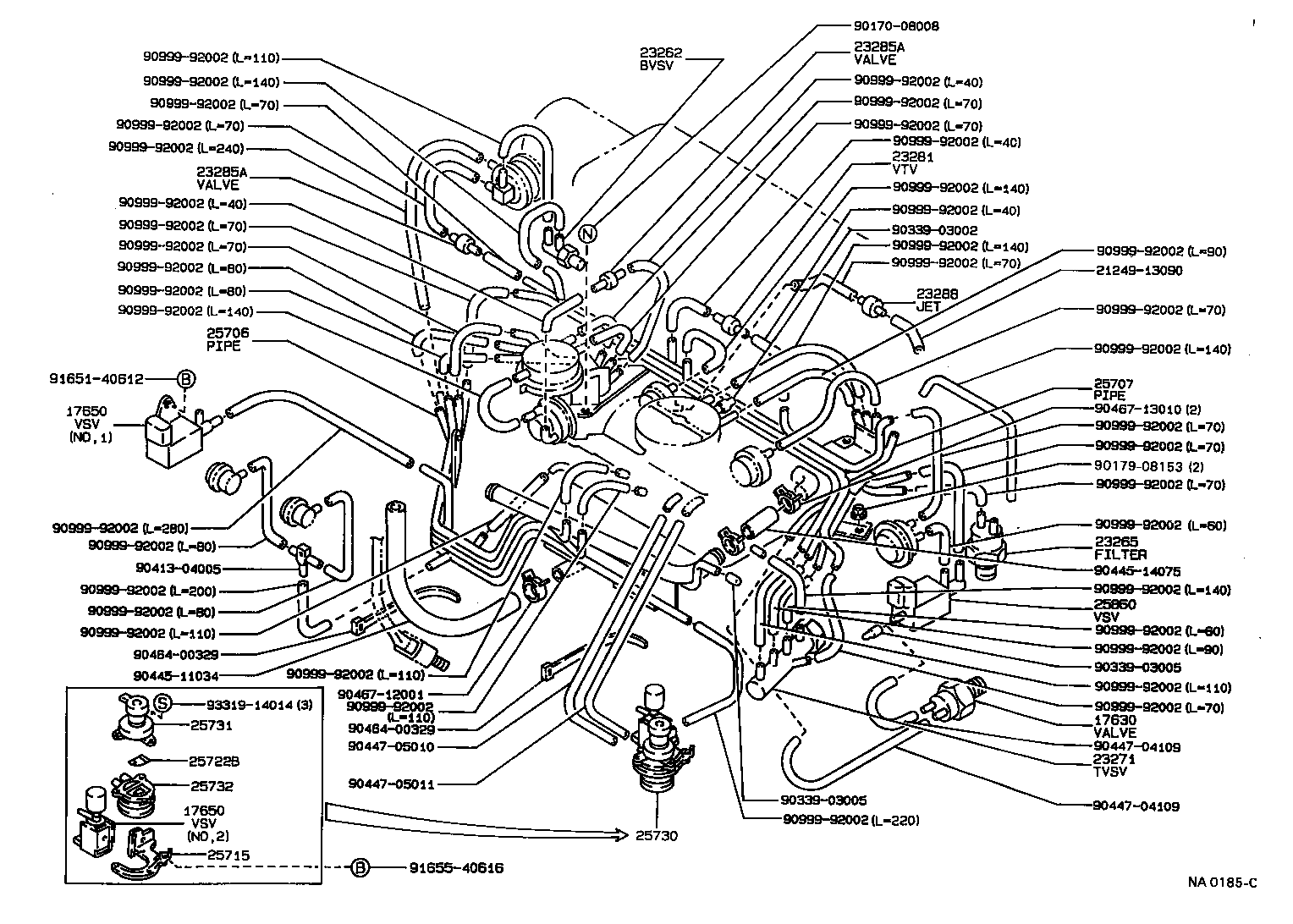

(8705-8908)4AF

Click highlighted areas on diagram

EXHAUST EMISSION CONTROL(US'83)

diagram 17630 17650 17650 2124913090 23262 23265 23271 23281 23285A 23285A 23288 25706 25707 25715 25722B 25730 25731 25732 25860 9017008008 9017908153 9033903002 9033903005 9033903005 9041304005 9044511034 9044514075 9044704109 9044704109 9044705010 9044705011 9046400329 9046400329 9046712001 9046713010 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9165140612 9165540616 9331914014
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05085

4AF..AE95;4AF..AE92..LB,SED

 1
90925-05085

4AF..AE9#

 1
23265 - FILTER, GAS, NO.1
90917-11022

4AF#..AE9#

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AE9#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01095

4AF..AE95;4AF..AE92..3FC

 1
90925-01095

4AF..AE9#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AE9#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AE9#

 1
23288 - JET, NO.1
90925-01091

4AF..AE9#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AE9#

 1
25706-16210

4AF..AE9#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16040

4AF..AE9#

 1
25707-16140

4AF..AE9#

 1
Common parts
21249-13090
90170-08008
90179-08153
90339-03002
90339-03005
90413-04005
90445-11034
90445-14075
90447-04109
90447-05010
90447-05011
90464-00329
90467-12001
90467-13010
90999-92002
91651-40612
91655-40616
93319-14014

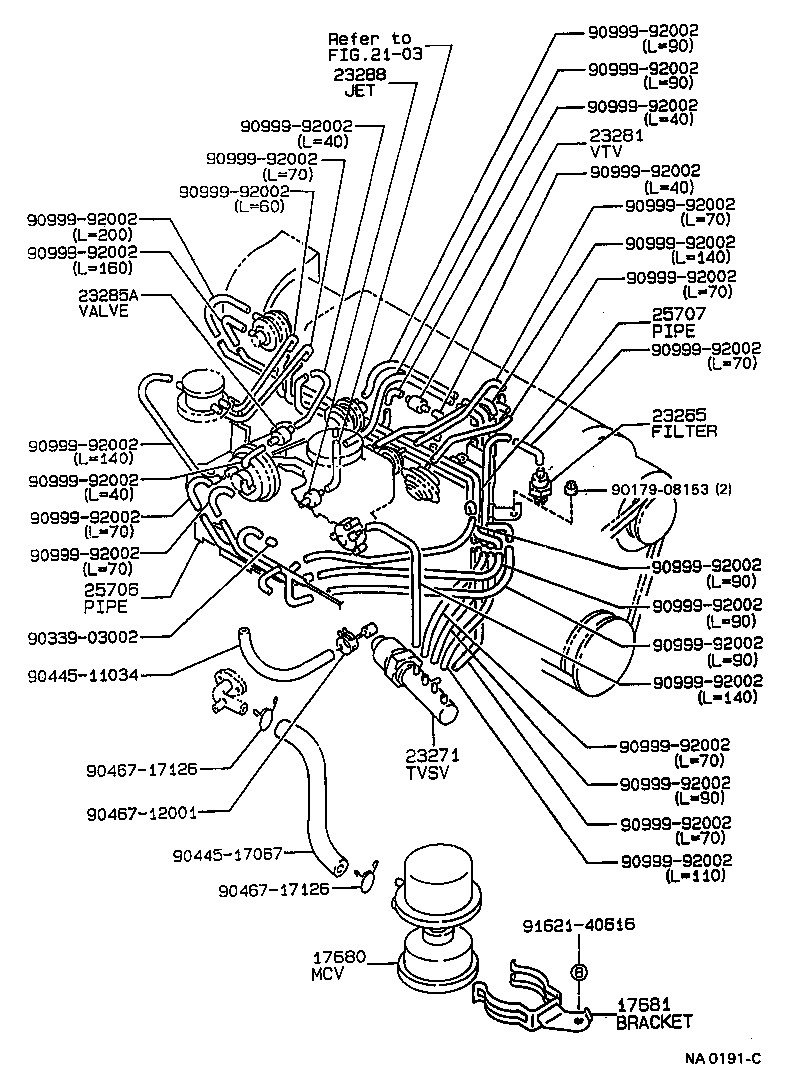

(8705-8908)4AF

Click highlighted areas on diagram

EX.EMISSION CONT.=PHASE C/ANNEX25

diagram 17680 17681 2103 23265 23271 23281 23285A 23288 25706 25707 9017908153 9033903002 9044511034 9044517067 9046712001 9046717126 9046717126 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9162140616
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11022

4AF#..AE9#

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AE9#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01095

4AF..AE95;4AF..AE92..3FC

 1
90925-01095

4AF..AE9#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AE9#

 1
23288 - JET, NO.1
90925-01091

4AF..AE9#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AE9#

 1
25706-16210

4AF..AE9#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16040

4AF..AE9#

 1
25707-16140

4AF..AE9#

 1
Common parts
90179-08153
90339-03002
90445-11034
90445-17067
90467-12001
90467-17126
90999-92002
91621-40616
Linked diagrams
2103

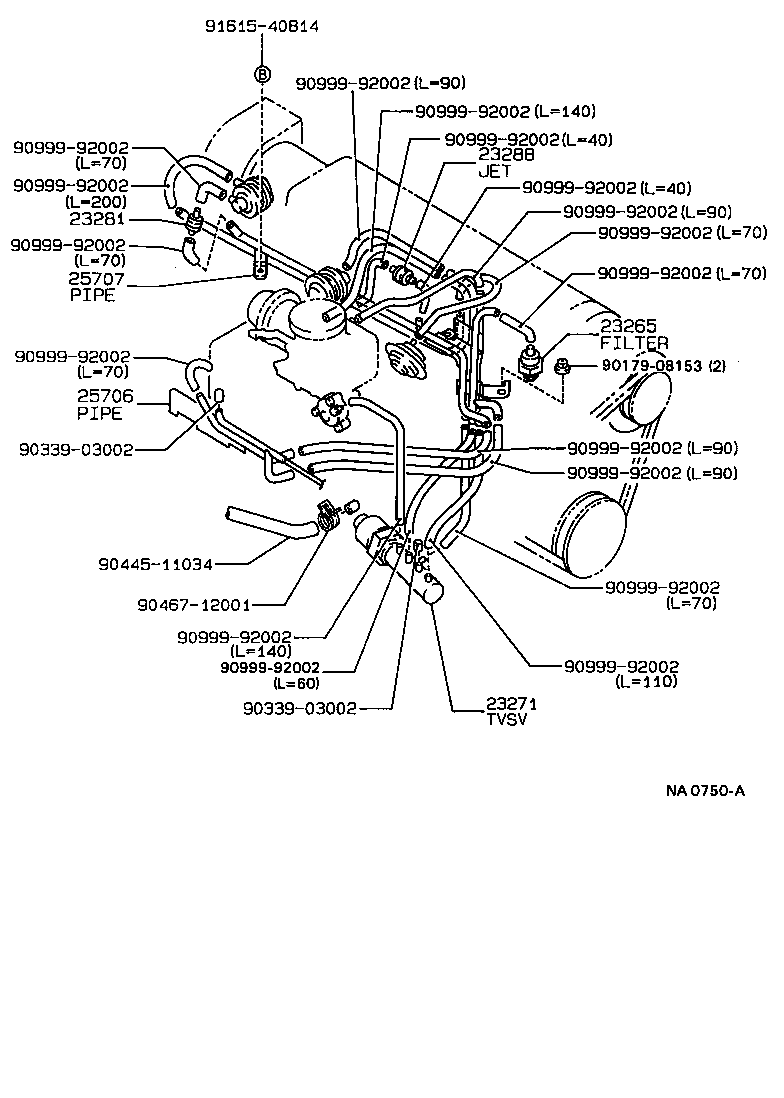

(8705-8908)4AF

Click highlighted areas on diagram

diagram 23265 23271 23281 23288 25706 25707 9017908153 9033903002 9033903002 9044511034 9046712001 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9161540814
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11022

4AF#..AE9#

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AE9#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01095

4AF..AE95;4AF..AE92..3FC

 1
90925-01095

4AF..AE9#

 1
23288 - JET, NO.1
90925-01091

4AF..AE9#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AE9#

 1
25706-16210

4AF..AE9#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16040

4AF..AE9#

 1
25707-16140

4AF..AE9#

 1
Common parts
90179-08153
90339-03002
90445-11034
90467-12001
90999-92002
91615-40814
