AE95L-CWMNUW (1988)

Toyota Corolla Sed/Lb/Wg

Production Feb 1988 - Sep 1990
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8802- )AE95..WG

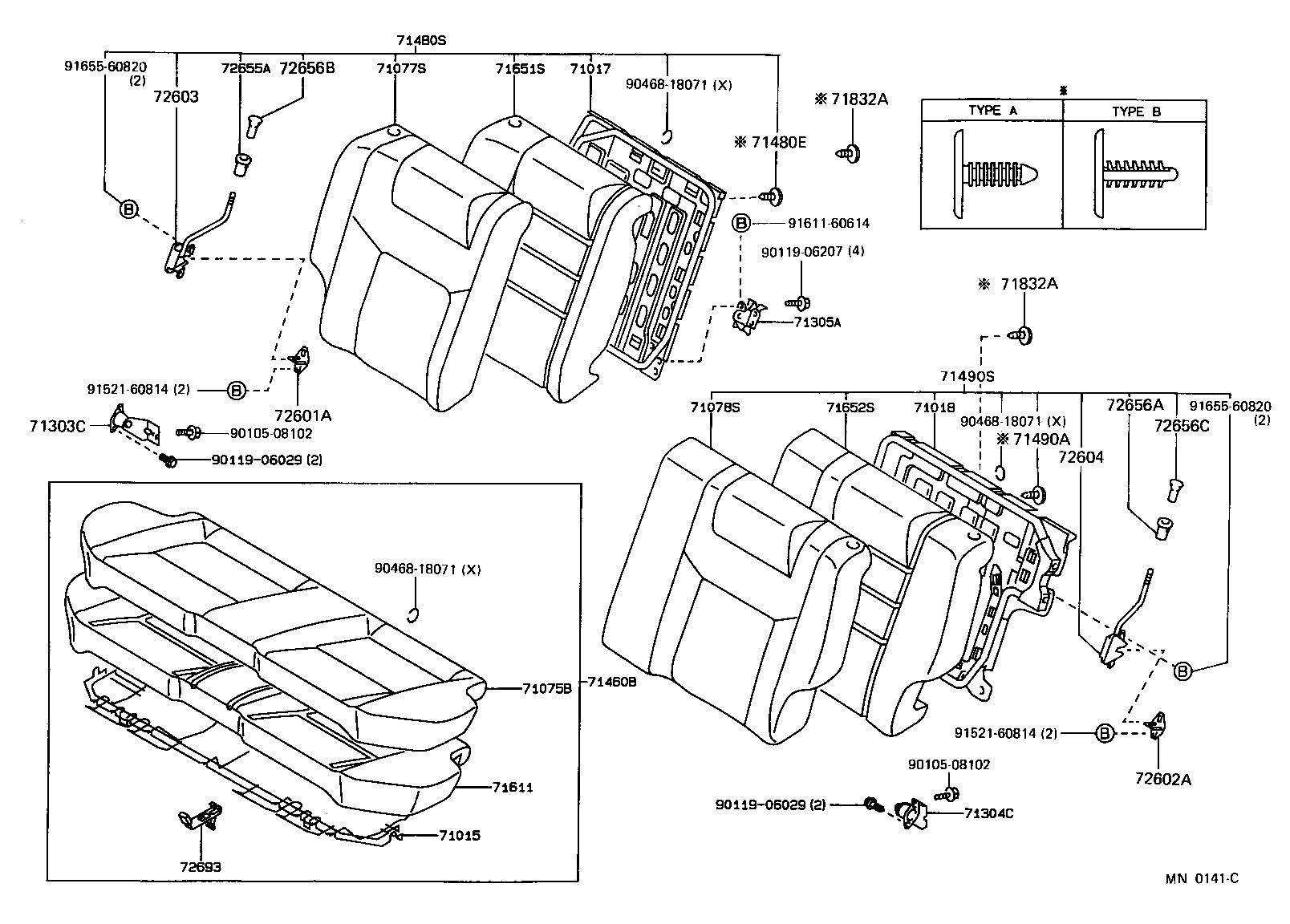

Click highlighted areas on diagram

diagram 71015 71017 71018 71075B 71077S 71078S 71303C 71304C 71305A 71460B 71480E 71480S 71490A 71490S 71611 71651S 71652S 71832A 71832A 72601A 72602A 72603 72604 72655A 72656A 72656B 72656C 72693 9010508102 9010508102 9011906029 9011906029 9011906207 9046818071 9046818071 9046818071 9152160814 9152160814 9161160614 9165560820 9165560820
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-12320

AE95..WG

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-12090

AE95..WG

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1E43005

AE95..WG..(GL,GLI)

DARK BEIGE,TRIM4#

 1
71075-1E43003

AE95..WG..(GL,GLI)

SHADOW GRAY,TRIM1#

 1
71075-1E43004

AE95..WG..(GL,GLI)

DARK BLUE,TRIM8#

 1
71075-1E39004

AE95..WG..(GL,GLI)

DARK BLUE,TRIM8#

 1
71075-1E39003

AE95..WG..(GL,GLI)

SHADOW GRAY,TRIM1#

 1
71075-1E39006

AE95..LHD..WG..(GL,GLI)

BROWN,TRIM4#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1K20004

AE95..LHD..WG..(GL,GLI)

DARK BLUE,TRIM8#

 1
71077-1K20103

AE95..LHD..WG..(GL,GLI)

SHADOW GRAY,TRIM1#

 1
71077-1K20104

AE95..LHD..WG..(GL,GLI)

DARK BLUE,TRIM8#

 1
71077-1K20003

AE95..LHD..WG..(GL,GLI)

SHADOW GRAY,TRIM1#

 1
71077-1K20005

AE95..LHD..WG..(GL,GLI)

DARK BEIGE,TRIM4#

 1
71077-1K20106

AE95..LHD..WG..(GL,GLI)

BROWN,TRIM4#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1A70005

AE95..LHD..WG..(GL,GLI)

DARK BEIGE,TRIM4#

 1
71078-1A70003

AE95..LHD..WG..(GL,GLI)

SHADOW GRAY,TRIM1#

 1
71078-1A70004

AE95..LHD..WG..(GL,GLI)

DARK BLUE,TRIM8#

 1
71078-1A70104

AE95..LHD..WG..(GL,GLI)

DARK BLUE,TRIM8#

 1
71078-1A70106

AE95..LHD..WG..(GL,GLI)

BROWN,TRIM4#

 1
71078-1A70103

AE95..LHD..WG..(GL,GLI)

SHADOW GRAY,TRIM1#

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-12090

AE95..WG

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-12030

AE95..WG

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-12090

AE95..WG

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1E43004

AE95..WG..(GL,GLI)

***,DAEK BLUE,TRIM8#

 1
71460-1E43005

AE95..WG..(GL,GLI)

***,DARK BEIGE,TRIM4#

 1
71460-1E41003

AE95..WG..(GL,GLI)

***,SHADOW GRAY,TRIM1#

 1
71460-1E43003

AE95..WG..(GL,GLI)

***,SHADOW GRAY,TRIM1#

 1
71460-1E41004

AE95..WG..(GL,GLI)

***,DARK BLUE,TRIM8#

 1
71460-1E41006

AE95..LHD..WG..(GL,GLI)

***,SHADOW GRAY,TRIM4#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1K26003

AE95..LHD..WG..(GL,GLI)

***,SHADOW GRAY,TRIM1#

 1
71480-1K26103

AE95..LHD..WG..(GL,GLI)

***,SHADOW GRAY,TRIM1#

 1
71480-1K26104

AE95..LHD..WG..(GL,GLI)

***,DARK BLUE,TRIM8#

 1
71480-1K26004

AE95..LHD..WG..(GL,GLI)

***,DARK BLUE,TRIM8#

 1
71480-1K26005

AE95..LHD..WG..(GL,GLI)

***,DARK BEIGE,TRIM4#

 1
71480-1K26106

AE95..LHD..WG..(GL,GLI)

***,BROWN,TRIM4#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1A69003

AE95..LHD..WG..(GL,GLI)

***,SHADOW GRAY,TRIM1#

 1
71490-1A69004

AE95..LHD..WG..(GL,GLI)

***,DARK BLUE,TRIM8#

 1
71490-1A69005

AE95..LHD..WG..(GL,GLI)

***,DARK BEIGE,TRIM4#

 1
71490-1A69103

AE95..LHD..WG..(GL,GLI)

***,SHADOW GRAY,TRIM1#

 1
71490-1A69104

AE95..LHD..WG..(GL,GLI)

***,DARK BLUE,TRIM8#

 1
71490-1A69106

AE95..LHD..WG..(GL,GLI)

***,BROWN,TRIM4#

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-12700

AE95..WG

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-12490

AE95..WG

 1
71832A - CLIP, REAR SEAT BACK CARPET OR MAT
90467-0704914

AE95..WG

DARK BLUE,TRIM8#,TYPE B

 6
90467-0704915

AE95..WG

BEIGE,TRIM4#,TYPE B

 6
90467-0603725

AE95..WG

DARK BEIGE,TRIM4#,TYPE A

 6
90467-0603713

AE95..WG

GRAY,TRIM1#,TYPE A

 6
90467-0603724

AE95..WG

DARK BLUE,TRIM8#,TYPE A

 6
90467-07049J0

AE95..WG

DARK BLUE,TRIM8#,TYPE B

 6
90467-0704926

AE95..LHD..WG

BROWN,TRIM4#,TYPE B

 6
90467-0603726

AE95..LHD..WG

BROWN,TRIM4#,TYPE A

 6
90467-0704903

AE95..WG

GRAY,TRIM1#,TYPE B

 6
71832A - CLIP, REAR SEAT BACK CARPET OR MAT
90467-0704914

AE95..WG

DARK BLUE,TRIM8#,TYPE B

 6
90467-0704915

AE95..WG

BEIGE,TRIM4#,TYPE B

 6
90467-0603725

AE95..WG

DARK BEIGE,TRIM4#,TYPE A

 6
90467-0603713

AE95..WG

GRAY,TRIM1#,TYPE A

 6
90467-0603724

AE95..WG

DARK BLUE,TRIM8#,TYPE A

 6
90467-07049J0

AE95..WG

DARK BLUE,TRIM8#,TYPE B

 6
90467-0704926

AE95..LHD..WG

BROWN,TRIM4#,TYPE B

 6
90467-0603726

AE95..LHD..WG

BROWN,TRIM4#,TYPE A

 6
90467-0704903

AE95..WG

GRAY,TRIM1#,TYPE B

 6
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-16050

AE95..WG

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72601-16050

AE95..WG

 1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-12180

AE95..WG

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-12170

AE95..WG

 1
72655A - GROMMET, REAR SEAT BACK STOP BUTTON
72655-2002030

AE9#,CE90,EE90..(LB,WG)..(GL,GLI,STD,XL,XLI)

DARK BEIGE,TRIM4#

 1
72655-2002059

AE95..WG;AE92,CE90,EE90..LHD..(LB,WG)..(GL,XL)

DARK BLUE,TRIM8#

 1
72655-2002023

AE9#,CE90,EE90..LB,WG

GRAY,TRIM1#

 1
72655-2002048

AE95..LHD

BROWN,TRIM4#

 1
72655-2002048

AE95..LHD..WG;AE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)

BROWN,TRIM4#

 1
72656A - GROMMET, REAR SEAT BACK STOP BUTTON
72655-2002048

AE95..LHD

BROWN,TRIM4#

 1
72655-2002048

AE95..LHD..WG;AE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)

BROWN,TRIM4#

 1
72656B - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001048

AE95..LHD..WG;AE92,EE90..LHD..SED..(GL,GLI);AE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)

BROWN,TRIM4#

 1
72656-2001055

EE90..RHD;CE90..RHD..SED;EE90..LHD..(LB,WG);AE92,EE90..LHD..SED..GL;AE9#,CE90..(LB,WG)..(GL,GLI,STD,XL,XLI)

DARK BEIGE,TRIM4#

 1
72656-2001059

AE95..WG;AE92,EE90..LHD..SED..GL;AE92,CE90,EE90..LHD..(LB,WG)..(GL,XL)

DARK BLUE,TRIM8#

 1
72656C - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001059

AE95..WG;AE92,EE90..LHD..SED..GL;AE92,CE90,EE90..LHD..(LB,WG)..(GL,XL)

DARK BLUE,TRIM8#

 1
72656-2001055

EE90..RHD;CE90..RHD..SED;EE90..LHD..(LB,WG);AE92,EE90..LHD..SED..GL;AE9#,CE90..(LB,WG)..(GL,GLI,STD,XL,XLI)

DARK BEIGE,TRIM4#

 1
72656-2001048

AE95..LHD..WG;AE92,EE90..LHD..SED..(GL,GLI);AE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)

BROWN,TRIM4#

 1
Common parts
90105-08102
90119-06029
90119-06207
90468-18071
91521-60814
91611-60614
91655-60820
