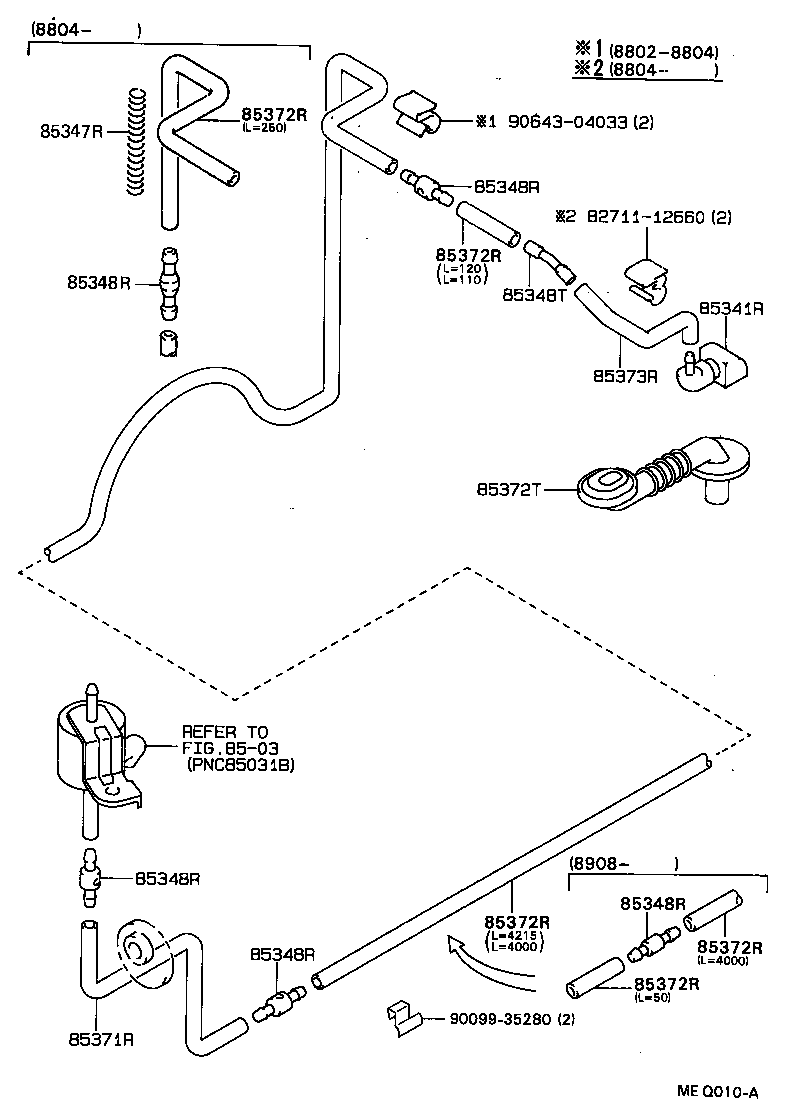

AE95L-CWMNKW (1988)
Toyota Corolla Sed/Lb/Wg
(8802-9008)AE95..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85341R - NOZZLE ASSY, WASHER | ||||
| 85341-12240 |
AE95..WG |
1 | ||
| 85347R - SPRING | ||||
| 85347-12150 |
AE95..WG |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE9#..LHD..WG;CE90,EE90..WG..(GL,XL) |
5 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE9#..LHD..WG;CE90,EE90..WG..(GL,XL) |
5 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE9#..LHD..WG;CE90,EE90..WG..(GL,XL) |
5 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE9#..LHD..WG;CE90,EE90..WG..(GL,XL) |
5 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE9#..LHD..WG;CE90,EE90..WG..(GL,XL) |
5 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33185 |
AE95..WG L=120 |
1 | ||
| 90099-33299 |
AE95..WG L=1000 |
1 | ||
| 90099-33533 |
AE95..WG *H,L=4345 |
1 | ||
| 90446-07001 |
AE95..WG |
1 | ||
| 90099-33511 |
AE95..WG L=4000 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33185 |
AE95..WG L=120 |
1 | ||
| 90099-33299 |
AE95..WG L=1000 |
1 | ||
| 90099-33533 |
AE95..WG *H,L=4345 |
1 | ||
| 90446-07001 |
AE95..WG |
1 | ||
| 90099-33511 |
AE95..WG L=4000 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33185 |
AE95..WG L=120 |
1 | ||
| 90099-33299 |
AE95..WG L=1000 |
1 | ||
| 90099-33533 |
AE95..WG *H,L=4345 |
1 | ||
| 90446-07001 |
AE95..WG |
1 | ||
| 90099-33511 |
AE95..WG L=4000 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33185 |
AE95..WG L=120 |
1 | ||
| 90099-33299 |
AE95..WG L=1000 |
1 | ||
| 90099-33533 |
AE95..WG *H,L=4345 |
1 | ||
| 90446-07001 |
AE95..WG |
1 | ||
| 90099-33511 |
AE95..WG L=4000 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33185 |
AE95..WG L=120 |
1 | ||
| 90099-33299 |
AE95..WG L=1000 |
1 | ||
| 90099-33533 |
AE95..WG *H,L=4345 |
1 | ||
| 90446-07001 |
AE95..WG |
1 | ||
| 90099-33511 |
AE95..WG L=4000 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-12020 |
AE9#,CE90,EE90..(LB,WG)..(GL,GLI,GTI,XL,XLI) |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
AE95..WG L=1000 |
1 | ||
| Common parts | ||||
| 82711-12660 | ||||
| 90099-35280 | ||||
| 90643-04033 | ||||
| Linked diagrams | ||||
| 8503 | ||||
