AE95L-CWMNKW (1988)
Toyota Corolla Sed/Lb/Wg
Production
Feb 1988
-
Sep 1990
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8802-9008)AE95..WG

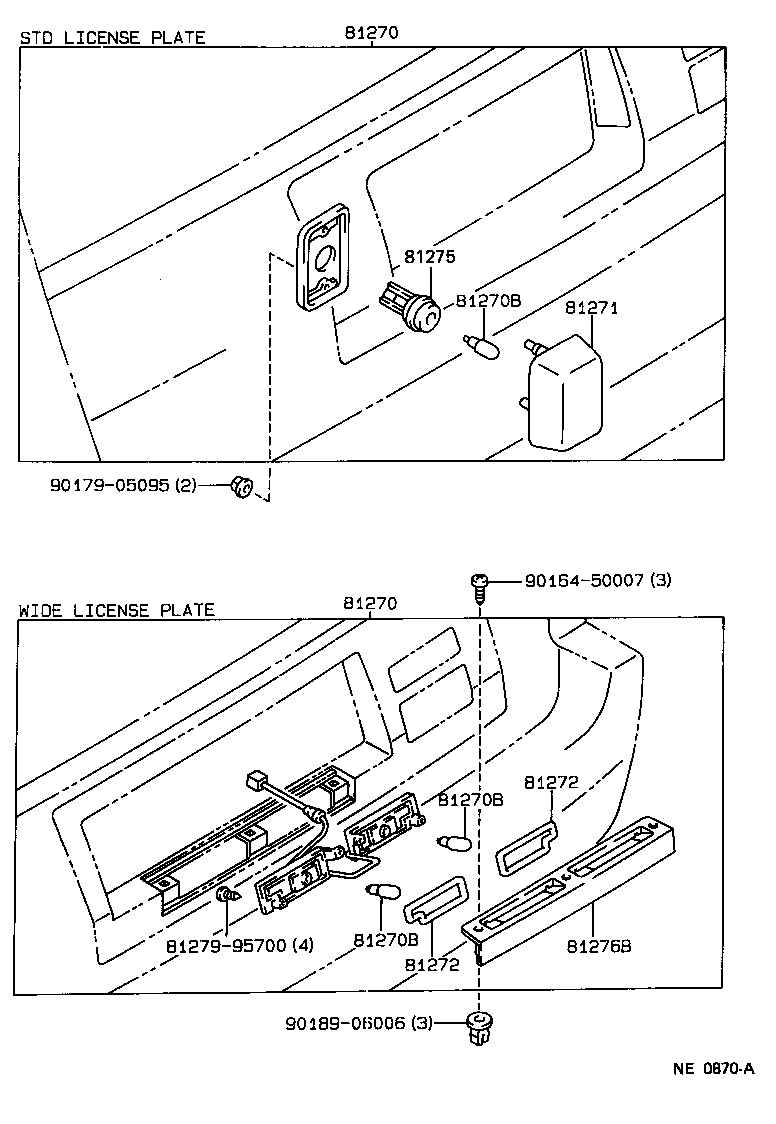

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-12310 |
AE95..LHD..WG W(BACK DOOR GARNISH) |
2 | ||
| 81270-12380 |
AE95..WG |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-12310 |
AE95..LHD..WG W(BACK DOOR GARNISH) |
2 | ||
| 81270-12380 |
AE95..WG |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AE9#,CE90,EE90..LB,WG 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AE9#,CE90,EE90..LB,WG 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AE9#,CE90,EE90..LB,WG 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-12310 |
AE95..LHD..WG |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-20240 |
AE95..WG |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-20240 |
AE95..WG |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 99159-10232 |
AE95..LHD..WG |
2 | ||
| 81276B - COVER, LICENSE PLATE LAMP | ||||
| 81276-12380 |
AE95..WG |
1 | ||
| Common parts | ||||
| 81279-95700 | ||||
| 90164-50007 | ||||
| 90179-05095 | ||||
| 90189-06006 | ||||
