AE95L-AEMNUW (1987)

Toyota Corolla Sed/Lb/Wg

Production Oct 1987 - Aug 1990
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE95..SED

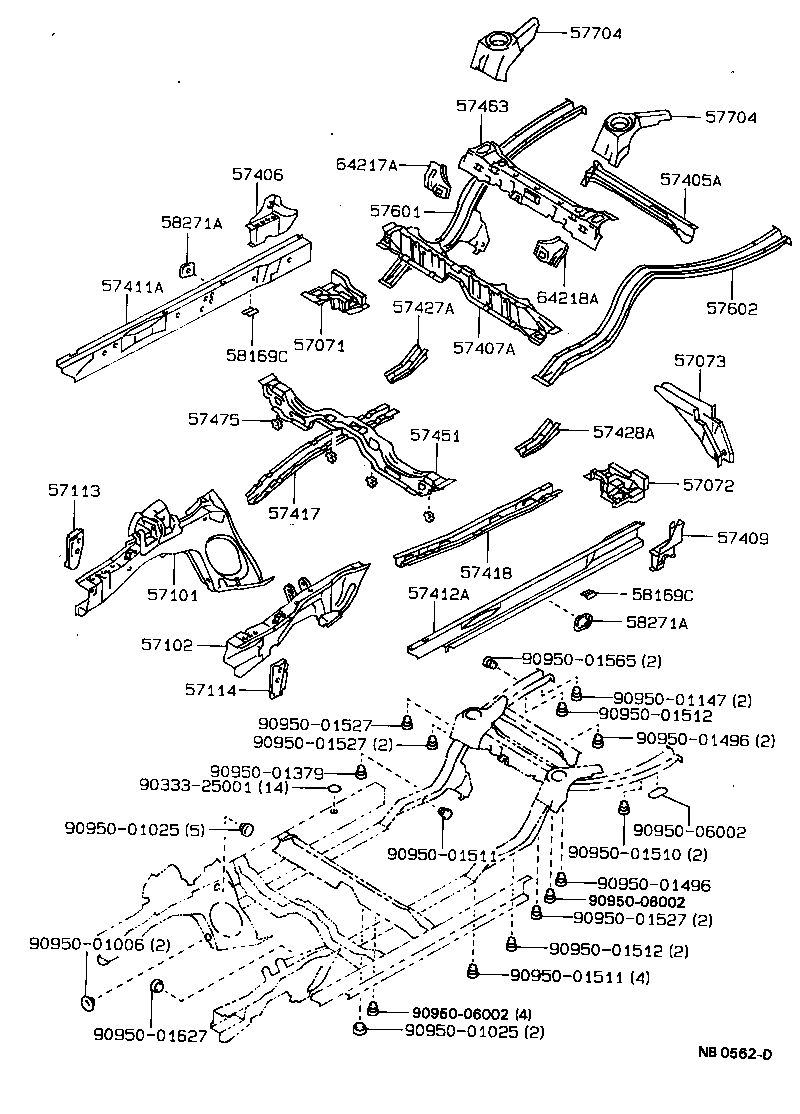

Click highlighted areas on diagram

diagram 57071 57072 57073 57101 57102 57113 57114 57405A 57406 57407A 57409 57411A 57412A 57417 57418 57427A 57428A 57451 57463 57475 57601 57602 57704 57704 58169C 58169C 58271A 58271A 64217A 64218A 9033325001 9095001006 9095001025 9095001025 9095001147 9095001379 9095001496 9095001496 9095001510 9095001511 9095001511 9095001512 9095001512 9095001527 9095001527 9095001527 9095001565 9095001627 9095006002 9095006002 9095006002
Part # Description Qty Price
57071 - BOX SUB-ASSY, TORQUE, REAR RH
57071-12030

AE95

 2
57072 - BOX SUB-ASSY, TORQUE, REAR LH
57072-12030

AE95

 2
57073 - BRACKET SUB-ASSY, LATERAL ROD
57073-12040

AE95

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12340

AE9#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12370

AE9#,EE90

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12110

AE9#,CE90,EE90

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12110

AE9#,CE90,EE90

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-12160

AE9#,CE90,EE90

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-12160

AE9#,CE90,EE90

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-12090

AE95..CBR

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-12050

AE95..CBR

 1
57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-12010

AE95..CBR

 1
57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH
57428-12030

AE95..CBR

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-12120

AE95

 1
57451-12120

AE95..CBR

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-12650

AE95..SED

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-12540

AE95..SED

 1
58169C - PATCH, FRONT FLOOR REAR
58169-12010

AE95

 2
58169C - PATCH, FRONT FLOOR REAR
58169-12010

AE95

 2
58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58271-12050

AE9#,CE90,EE90

 2
58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58271-12050

AE9#,CE90,EE90

 2
64217A - EXTENSION, CENTOR FLOOR TO PACKAGE TRAY, RH
64217-12030

AE95..SED

 1
64218A - EXTENSION, CENTOR FLOOR TO PACKAGE TRAY, LH
64218-12030

AE95..SED

 1
Common parts
90333-25001
90950-01006
90950-01025
90950-01147
90950-01379
90950-01496
90950-01510
90950-01511
90950-01512
90950-01527
90950-01565
90950-01627
90950-06002
