AE95L-AEMNUW (1987)
Toyota Corolla Sed/Lb/Wg
Production
Oct 1987
-
Aug 1990
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8710- )AE95

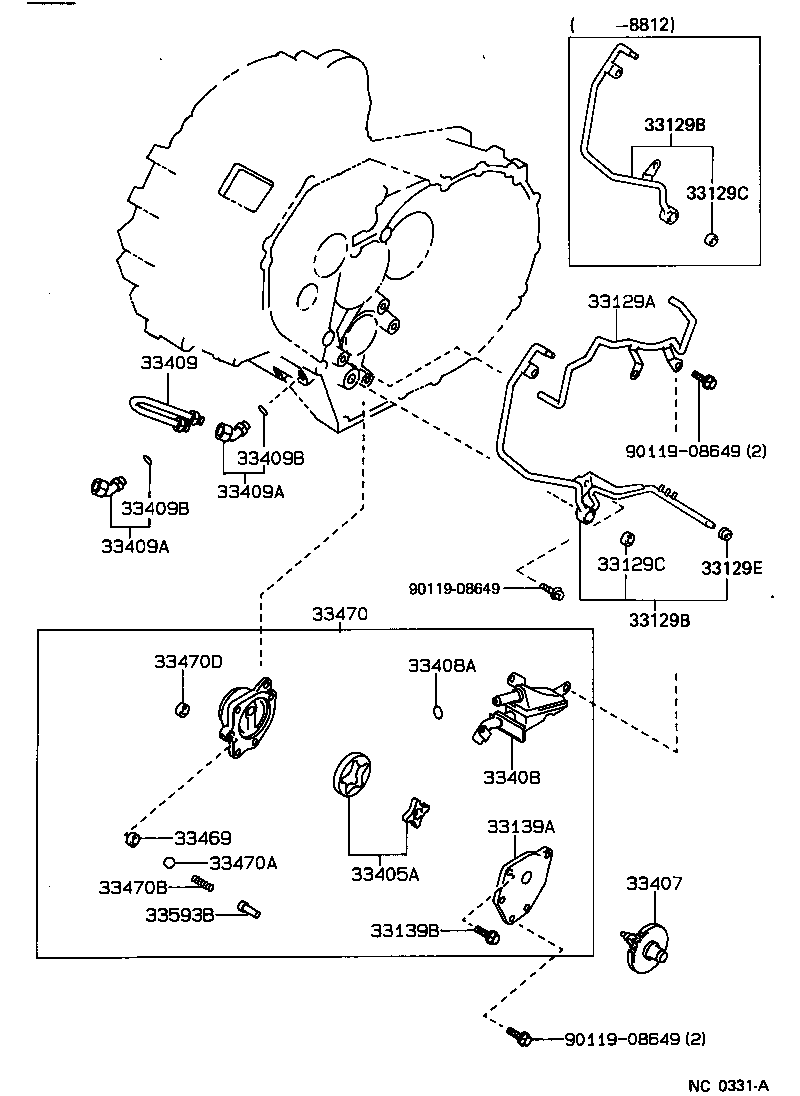

Click highlighted areas on diagram
E55F,E57F5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33129A - PIPE, MANUAL TRANSMISSION OIL, NO.1 | ||||
| 33129-12030 |
AE95 |
1 | ||
| 33129-12010 |
AE95 |
1 | ||
| 33129B - PIPE, MANUAL TRANSMISSION OIL, NO.2 | ||||
| 33106-20031 |
AE95 |
1 | ||
| 33106-12030 |
AE95 |
1 | ||
| 33129B - PIPE, MANUAL TRANSMISSION OIL, NO.2 | ||||
| 33106-20031 |
AE95 |
1 | ||
| 33106-12030 |
AE95 |
1 | ||
| 33129C - GASKET(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90430-09004 |
AE95 |
1 | ||
| 33129C - GASKET(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90430-09004 |
AE95 |
1 | ||
| 33129E - BUSH(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90389-05012 |
AE95 |
1 | ||
| 33139A - COVER, OIL PUMP(FOR MANUAL TRANSMISSION) | ||||
| 33139-20010 |
AE95 |
1 | ||
| 33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06199 |
AE95 |
3 | ||
| 33405A - ROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP | ||||
| 33405-20020 |
AE95 |
1 | ||
| 33405-20010 |
AE95 |
1 | ||
| 33407 - GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE | ||||
| 33407-12021 |
AE95..SED |
1 | ||
| 33408 - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33408-20010 |
AE95 |
1 | ||
| 33408A - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER) | ||||
| 96721-19012 |
AE95 |
1 | ||
| 33409 - TUBE SUB-ASSY, MANUAL TRANSMISSION OIL COOLER | ||||
| 33409-17010 |
AE95 |
1 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16017 |
AE95 |
2 | ||
| 90407-16014 |
AE95 |
2 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16017 |
AE95 |
2 | ||
| 90407-16014 |
AE95 |
2 | ||
| 33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-10189 |
AE95 |
4 | ||
| 90301-11006 |
AE95 |
2 | ||
| 33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-10189 |
AE95 |
4 | ||
| 90301-11006 |
AE95 |
2 | ||
| 33469 - SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33469-20010 |
AE95 |
1 | ||
| 33470 - PUMP ASSY, MANUAL TRANSMISSION OIL | ||||
| 33470-12010 |
AE95 |
1 | ||
| 33470-20010 |
AE95 |
1 | ||
| 33470A - BALL (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90360-10003 |
AE95 |
1 | ||
| 33470B - SPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90501-08092 |
AE95 |
1 | ||
| 33470D - GASKET (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90430-09004 |
AE95 |
1 | ||
| 33593B - HOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33593-20010 |
AE95 |
1 | ||
| Common parts | ||||
| 90119-08649 | ||||
