AE92R-ALMVFW (1987)
Toyota Corolla Sed/Lb/Wg
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12300 | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A330 | ||||
| 82711-1A400 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A430 | ||||
| 82711-1A440 | ||||
| 82711-1A450 | ||||
| 82711-1A500 | ||||
| 82711-1A510 | ||||
| 82711-1A540 | ||||
| 82711-1A630 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-24210 | ||||
| 82711-30130 | ||||
| 82711-95718 | ||||
ILLUST NO. 2 OF 5(8705- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12280 |
AE9#,CE90,EE90..RHD W(*EL) |
1 | ||
| 82151-12300 |
AE9#,CE90,EE90..RHD W(*PW & *EL) |
1 | ||
| 82151-12260 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI W(*RCM) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12210 |
AE9#,CE90,EE90..RHD W(*PW & *EL) |
1 | ||
| 82152-12200 |
AE9#,CE90,EE90..RHD W(*EL) |
1 | ||
| 82152-12400 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI W(*RCM) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12070 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI W(*EL) |
1 | ||
| 82153-12080 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI W(*PW & *EL) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12070 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI W(*PW & *EL) |
1 | ||
| 82154-12060 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI W(*EL) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1A260 |
AE92,EE90..RHD..LB |
1 | ||
| 82161-1A270 |
AE92,EE90..RHD..LB W(*EL) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12190 |
AE92,EE90..RHD..LB W(SUN ROOF) |
1 | ||
| 82171-12180 |
AE92,EE90..RHD..LB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12230 |
AE92..EFI |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12300 |
AE92..GTI W(RR WIPER) |
1 | ||
| 82344 - WIRE, MIRROR, RH | ||||
| 82344-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI |
1 | ||
| 82344A - WIRE, MIRROR, LH | ||||
| 82344-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE92,CE90,EE90 |
1 | ||
| 82817-12140 |
AE92,CE90,EE90..LB,SED |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
AE9#,EE90..RHD..(GL,GTI) NO.4 |
1 | ||
| 82345-12030 |
AE95,CE90;AE92..3FC;EE90..RHD;AE92..RHD..5F;AE92..LHD..EFI;EE90..LHD..3FC NO.2 |
1 | ||
| 82345-32020 |
AE92..RHD..EFI NO.8 |
1 | ||
| 82345-32020 |
AE92..EFI;AE92,EE90..LHD..3FC;AE95,CE90..LHD..(CBR,DSL) NO.8 |
2 | ||
| 82345-12040 |
AE92..GTI NO.3 |
1 | ||
| Common parts | ||||
| 82345-12030 | ||||
| 82345-12040 | ||||
| 82345-12050 | ||||
| 82345-32020 | ||||

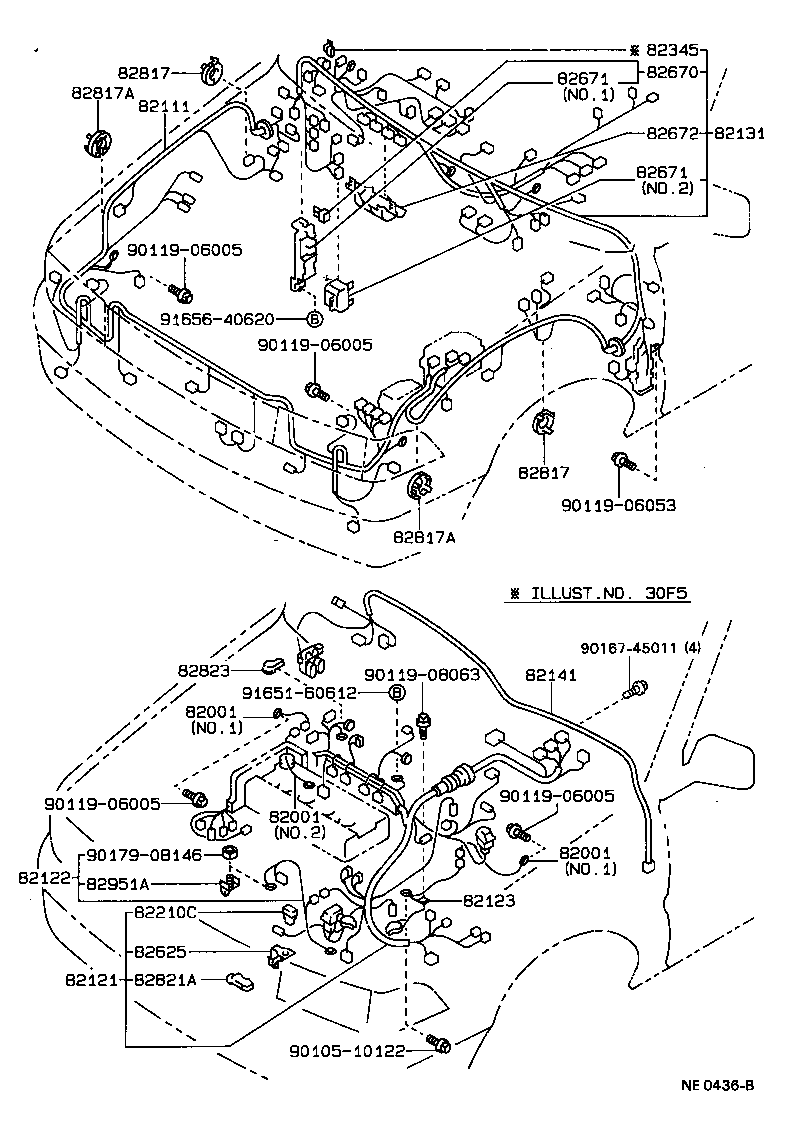

ILLUST NO. 1 OF 5(8705- )GTI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07235 |
AE92..GTI NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07235 |
AE92..GTI NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07235 |
AE92..GTI NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1A260 |
AE9#,EE90..RHD..(GL,GTI) ANTI-PROJECT MEASURE COUNTRIES |
1 | ||
| 82111-1A250 |
AE9#,CE90,EE90..RHD |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1A330 |
AE92..RHD..EFI |
1 | ||
| 82121-1A331 |
AE92..RHD..EFI |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-12310 |
AE92..GTI BATTERY=55D23L |
1 | ||
| 82122-12300 |
AE92..EFI |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12170 |
AE9#,EE90..MTM |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1A770 |
AE92..RHD..EFI |
1 | ||
| 82131-1A790 |
AE92..RHD..EFI ANTI-PROJECT MEASURE COUNTRIES |
1 | ||
| 82131-1A771 |
AE92..RHD..EFI |
1 | ||
| 82131-1A791 |
AE92..RHD..EFI ANTI-PROJECT MEASURE COUNTRIES |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-12010 |
AE9#,CE90,EE90..RHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08223 |
AE92..EFI 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08188 |
AE9#,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08203 |
AE92..EFI 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08203 |
AE95..EFI;AE92..LHD;AE92..RHD..EFI 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08223 |
AE95..EFI;AE92..LHD;AE92..RHD..EFI 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08189 |
AE9#,CE90,EE90..DSL,EFI 40A,TERM.:FEMALE,GRN |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE9#,EE90..RHD..(GL,GTI) NO.4 |
1 | ||
| 82345-12030 |
AE95,CE90;AE92..3FC;EE90..RHD;AE92..RHD..5F;AE92..LHD..EFI;EE90..LHD..3FC NO.2 |
1 | ||
| 82345-32020 |
AE92..RHD..EFI NO.8 |
1 | ||
| 82345-32020 |
AE92..EFI;AE92,EE90..LHD..3FC;AE95,CE90..LHD..(CBR,DSL) NO.8 |
2 | ||
| 82345-12040 |
AE92..GTI NO.3 |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12030 |
AE92..GTI;CE90..LHD |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12090 |
AE9#,CE90,EE90 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
AE92,CE90,EE90..RHD NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
AE92,CE90,EE90..RHD NO.1 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12080 |
AE9#,CE90,EE90..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE90,EE90 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE90,EE90 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE90,EE90 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE90,EE90 |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12190 |
CE90..LHD;AE9#,EE90..GL,GTI,STD,XL |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE95,EE90;AE92..GL,GTI,XL |
1 | ||
| 82951A - BRACKET, TERMINAL | ||||
| 82951-17010 |
AE92..EFI |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90167-45011 | ||||
| 90179-08146 | ||||
| 91651-60612 | ||||
| 91656-40620 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-17010 | ||||
| 82982-22050 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
| 82985-12010 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82991-12030 | ||||
| 82991-12040 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16470 | ||||
| 82711-1A620 | ||||
| 82711-22270 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 82715-12030 | ||||
| 82715-89113 | ||||
