AE92R-ALMNUW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE9#..RHD

Click highlighted areas on diagram

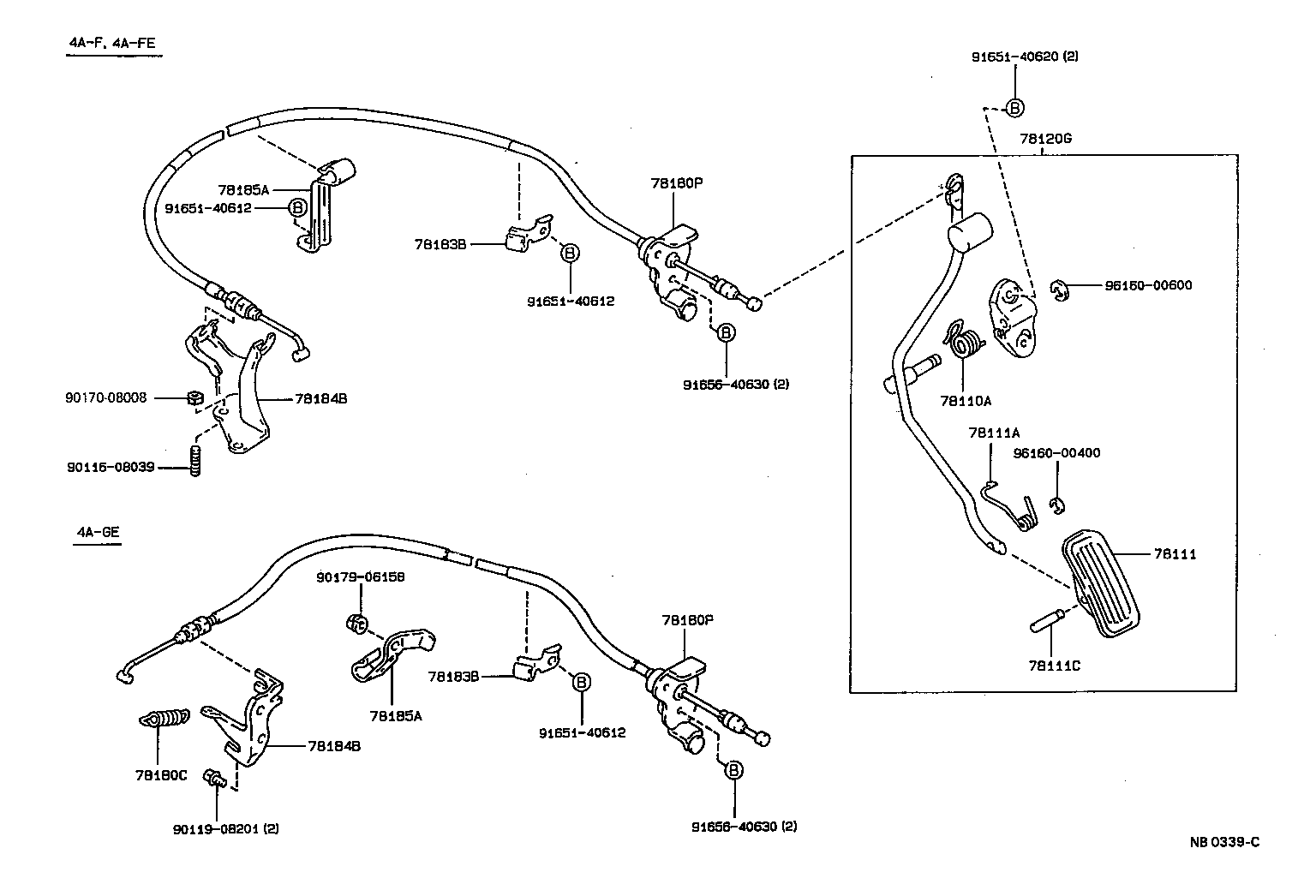

diagram 78110A 78111 78111A 78111C 78120G 78180C 78180P 78180P 78183B 78183B 78184B 78184B 78185A 78185A 9011608039 9011908201 9017008008 9017906158 9165140612 9165140612 9165140612 9165140620 9165640630 9165640630 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18025

AE9#,EE90..GL,GLI,STD,XL,XLI

 1
90508-18025

EE90..MTM;EE90..LHD..3FC;AE9#..GL,GLI,XL,XLI

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AE9#,CE90,EE90

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056

AE9#,CE90,EE90

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AE9#,CE90,EE90

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12080

AE9#..RHD;EE90..RHD..5F

 1
78120-12080

AE9#,EE90..RHD..CBR

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-12780

AE9#..RHD..CBR

 1
78180-12781

AE9#..RHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-12780

AE9#..RHD..CBR

 1
78180-12781

AE9#..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12100

AE9#,CE90,EE90..RHD

TYPE A

 1
78183-12100

AE9#,CE90,EE90..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12100

AE9#,CE90,EE90..RHD

TYPE A

 1
78183-12100

AE9#,CE90,EE90..RHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12230

AE9#..CBR

 1
78184-12230

AE92..CBR

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12230

AE9#..CBR

 1
78184-12230

AE92..CBR

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78183-12140

AE9#..RHD..CBR

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78183-12140

AE9#..RHD..CBR

 1
Common parts
90116-08039
90119-08201
90170-08008
90179-06158
91651-40612
91651-40620
91656-40630
96160-00400
96160-00600
