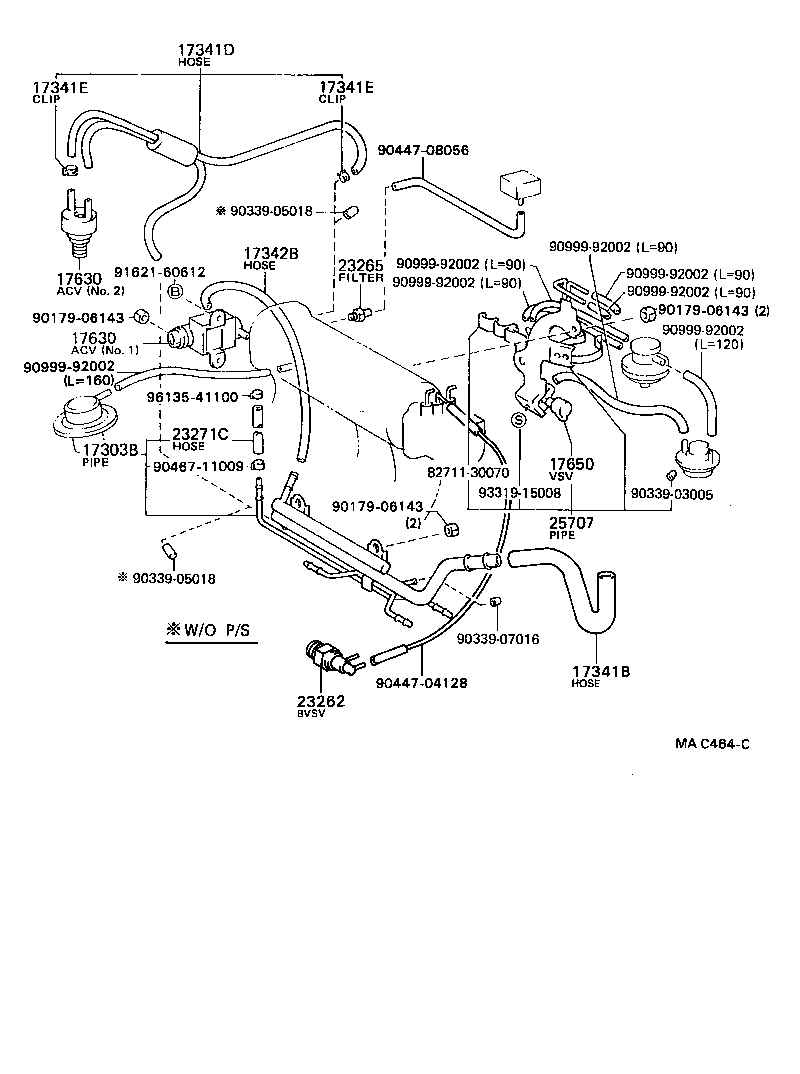

AE92L-AWMDKW (1989)
Toyota Corolla Sed/Lb/Wg
(8908- )4AF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05085 |
4AF..AE9# |
1 | ||
| 90925-05085 |
4AF..AE92 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4AF#..AE9# |
1 | ||
| 90917-11022 |
4AF#..AE92 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AF..AE9# |
1 | ||
| 90925-02076 |
4AF..AE92 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01095 |
4AF..AE9# |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4AF..AE95..LHD..SED;4AF,4AGE..AE92..LHD..5F EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
2 | ||
| 90917-10049 |
4AF..AE9# |
1 | ||
| 90917-10049 |
4AF..AE92 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-01091 |
4AF..AE9# |
1 | ||
| 90925-01091 |
4AF..AE92 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16210 |
4AF..AE92 |
1 | ||
| 25706-16210 |
4AF..AE9# |
1 | ||
| 25706-16220 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
1 | ||
| 25706-16210 |
4AF..AE9# |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-16040 |
4AF..AE9# |
1 | ||
| 25707-16140 |
4AF..AE9# |
1 | ||
| 25707-16050 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
1 | ||
| 25707-16051 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
1 | ||
| 25707-16140 |
4AF..AE92 |
1 | ||
| 25707-16190 |
4AFE..AE92 |
1 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90339-03002 | ||||
| 90445-11034 | ||||
| 90467-12001 | ||||
| 90999-92002 | ||||
| 91621-40814 | ||||
(8908-8911)4AF
EX.EMISSION CONT.=PHASE C/ANNEX25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17680 - VALVE ASSY, MIXTURE CONTROL | ||||
| 17680-16010 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED |
1 | ||
| 17681 - BRACKET, MIXTURE CONTROL VALVE | ||||
| 17681-16020 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05085 |
4AF..AE9# |
1 | ||
| 90925-05085 |
4AF..AE92 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4AF#..AE9# |
1 | ||
| 90917-11022 |
4AF#..AE92 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AF..AE9# |
1 | ||
| 90925-02076 |
4AF..AE92 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01095 |
4AF..AE9# |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4AF..AE95..LHD..SED;4AF,4AGE..AE92..LHD..5F EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
2 | ||
| 90917-10049 |
4AF..AE9# |
1 | ||
| 90917-10049 |
4AF..AE92 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4AF..AE95..LHD..SED;4AF,4AGE..AE92..LHD..5F EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
2 | ||
| 90917-10049 |
4AF..AE9# |
1 | ||
| 90917-10049 |
4AF..AE92 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-01091 |
4AF..AE9# |
1 | ||
| 90925-01091 |
4AF..AE92 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16210 |
4AF..AE92 |
1 | ||
| 25706-16210 |
4AF..AE9# |
1 | ||
| 25706-16220 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
1 | ||
| 25706-16210 |
4AF..AE9# |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-16040 |
4AF..AE9# |
1 | ||
| 25707-16140 |
4AF..AE9# |
1 | ||
| 25707-16050 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
1 | ||
| 25707-16051 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
1 | ||
| 25707-16140 |
4AF..AE92 |
1 | ||
| 25707-16190 |
4AFE..AE92 |
1 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90339-03002 | ||||
| 90445-11040 | ||||
| 90445-17067 | ||||
| 90464-00298 | ||||
| 90467-12001 | ||||
| 90467-17126 | ||||
| 90999-92002 | ||||
| 91655-40616 | ||||
(8908- )4AFE..AE92
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-16131 |
4AFE..AE92 |
1 | ||
| 17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-15170 |
4AFE..AE92 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17302-16010 |
4AFE..AE92 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AFE..AE9# |
2 | ||
| 96132-30400 |
4AFE..AE92 |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AFE..AE9# |
2 | ||
| 96132-30400 |
4AFE..AE92 |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 90445-10029 |
4AFE..AE92 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
4AF..AE92..LHD |
1 | ||
| 17630-16070 |
4AFE..AE92 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
4AF..AE92..LHD |
1 | ||
| 17630-16070 |
4AFE..AE92 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12091 |
4AFE..AE92 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05085 |
4AF..AE9# |
1 | ||
| 90925-05085 |
4AF..AE92 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4AF#..AE9# |
1 | ||
| 90917-11022 |
4AF#..AE92 |
1 | ||
| 23271C - HOSE, FUEL | ||||
| 95333-06020 |
4AFE..AE92 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-16040 |
4AF..AE9# |
1 | ||
| 25707-16140 |
4AF..AE9# |
1 | ||
| 25707-16050 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
1 | ||
| 25707-16051 |
4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77) |
1 | ||
| 25707-16140 |
4AF..AE92 |
1 | ||
| 25707-16190 |
4AFE..AE92 |
1 | ||
| Common parts | ||||
| 82711-30070 | ||||
| 90099-92002 | ||||
| 90179-06143 | ||||
| 90339-03005 | ||||
| 90339-05018 | ||||
| 90339-07016 | ||||
| 90447-04128 | ||||
| 90447-08056 | ||||
| 90467-11009 | ||||
| 90999-92002 | ||||
| 91621-60612 | ||||
| 93319-15008 | ||||
| 96135-41100 | ||||
