AE92L-ALMVFW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

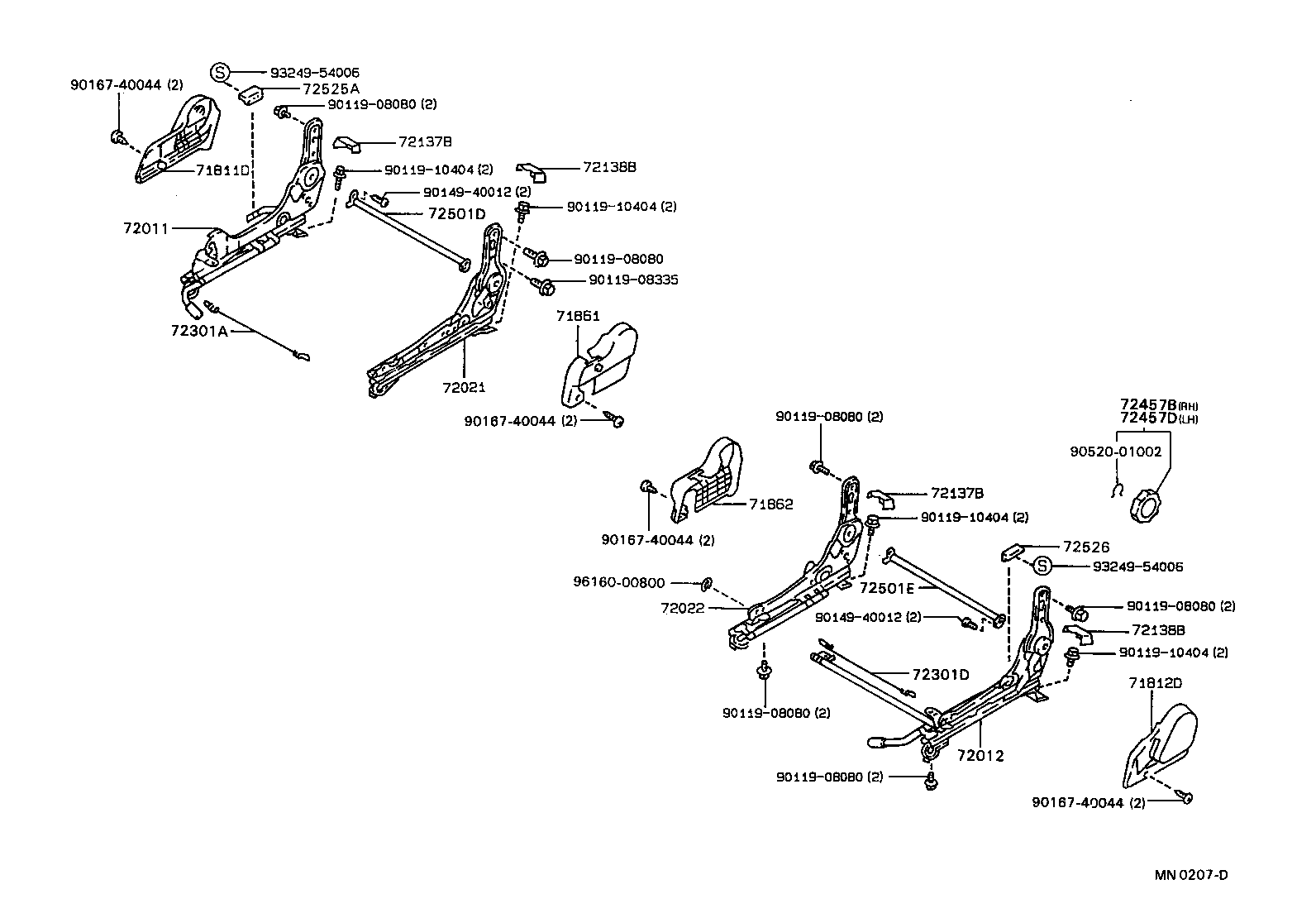

ILLUST NO. 2 OF 2(8705- )GTI

Click highlighted areas on diagram

diagram 71811D 71812D 71861 71862 72011 72012 72021 72022 72137B 72137B 72138B 72138B 72301A 72301D 72457B 72457D 72501D 72501E 72525A 72526 9011908080 9011908080 9011908080 9011908080 9011908080 9011908080 9011908335 9011910404 9011910404 9011910404 9011910404 9014940012 9014940012 9016740044 9016740044 9016740044 9016740044 9052001002 9324954006 9324954006 9616000800
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-1217003

AE92..GTI

SHADOW GRAY,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-1214003

AE92..GTI

SHADOW GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-1213003

AE92..GTI

SHADOW GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-1212003

AE92..GTI

SHADOW GRAY,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-12020

AE92..LHD..GTI

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-12110

AE92..LHD..GTI

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-12120

AE92..LHD..GTI

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-12130

AE92..LHD..GTI

 1
72137B - COVER, SEAT TRACK, RH
72137-1202003

AE92,CE90,EE90

SHADOW GRAY,TRIM1#

 2
72137B - COVER, SEAT TRACK, RH
72137-1202003

AE92,CE90,EE90

SHADOW GRAY,TRIM1#

 2
72138B - COVER, SEAT TRACK, LH
72138-1203003

AE92,CE90,EE90

SHADOW GRAY,TRIM1#

 2
72138B - COVER, SEAT TRACK, LH
72138-1203003

AE92,CE90,EE90

SHADOW GRAY,TRIM1#

 2
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-12040

AE92..LHD..GTI;AE92,CE90,EE90..RHD

 1
72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH
72301-12040

AE92..RHD..EFI;AE92,CE90,EE90..LHD..(GL,GLI,GTI,XL,XLI)

 1
72457D - KNOB, VERTICAL SEAT ADJUSTER, LH
72457-1203003

AE92,CE90,EE90..LHD..(GL,GLI,GTI,XL,XLI)

SHADOW GRAY,TRIM1#

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-12050

AE92..LHD..EFI

 1
72501-12050

AE92..GTI

 1
72501-12090

AE92..GTI

 1
72501-12050

AE92..EFI

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-12090

AE92..GTI

 1
72501-12050

AE92..LHD..EFI

 1
72501-12050

AE92..GTI

 1
72501-12050

AE92..EFI

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-1209003

AE9#,CE90,EE90

GRAY,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-1203003

AE9#,CE90,EE90

GRAY,TRIM1#

 1
Common parts
90119-08080
90119-08335
90119-10404
90149-40012
90167-40044
90520-01002
93249-54006
96160-00800

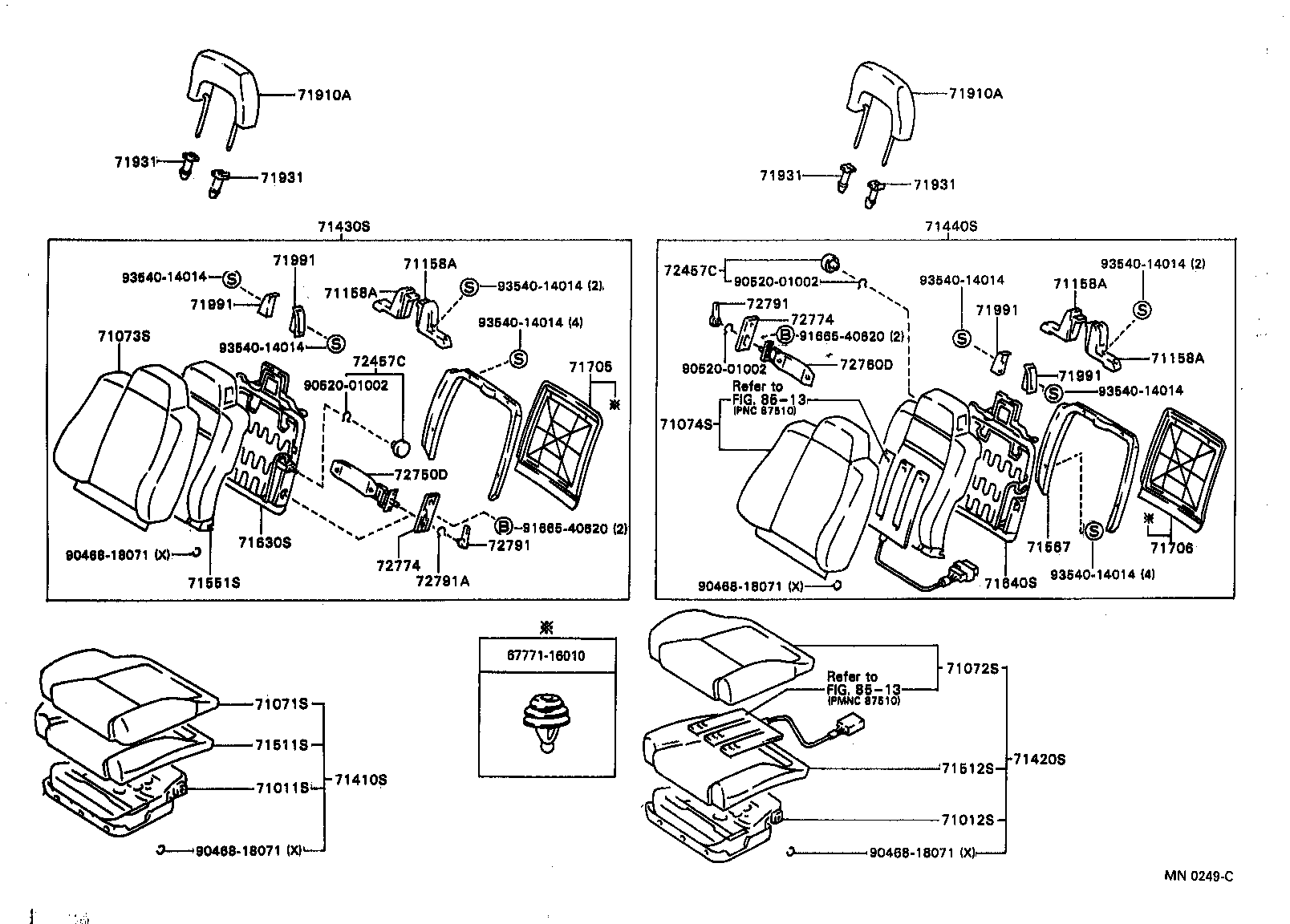

ILLUST NO. 1 OF 2(8705- )GTI

Click highlighted areas on diagram

diagram 6777116010 71011S 71012S 71071S 71072S 71073S 71074S 71158A 71158A 71158A 71158A 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71567 71630S 71640S 71705 71706 71910A 71910A 71931 71931 71931 71931 71991 71991 71991 71991 72457C 72457C 72750D 72760D 72774 72774 72791 72791 72791A 8513 8513 9046818071 9046818071 9046818071 9046818071 9052001002 9052001002 9052001002 9166540620 9166540620 9354014014 9354014014 9354014014 9354014014 9354014014 9354014014 9354014014 9354014014
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-12280

AE92,CE90,EE90

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-12280

AE92,CE90,EE90

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-1H21003

AE92..LHD..EFI

SADOW GRAY,TRIM1#

 1
71071-1H21103

AE92..GTI

SHADOW GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-1H42003

AE92..LHD..EFI

SWEDEN SPEC,SADOW GRAY,TRIM1#

 1
71071-1H35003

AE92..LHD..EFI

SADOW GRAY,TRIM1#

 1
71071-1H42003

AE92..LHD..EFI

SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SADOW GRAY,TRIM1#

 1
71071-1H42103

AE92..GTI

SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#

 1
71071-1H35103

AE92..GTI

SHADOW GRAY,TRIM1#

 1
71071-1H42103

AE92..GTI

SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71074-1E16003

AE92..LHD..EFI

SHADOW GRAY,TRIM1#

 1
71074-1E16103

AE92..GTI

SHADOW GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-1E31003

AE92..LHD..EFI

SWEDEN SPEC,SHADOW GRAY,TRIM1#

 1
71074-1E20003

AE92..LHD..EFI

SHADOW GRAY,TRIM1#

 1
71074-1E31003

AE92..LHD..EFI

SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#

 1
71074-1E20103

AE92..GTI

SHADOW GRAY,TRIM1#

 1
71074-1E31103

AE92..GTI

SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#

 1
71074-1E31103

AE92..GTI

SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#

 1
71158A - FRAME, FRONT SEAT BACK, UPPER OUTER
71158-12090

AE92..GTI

 2
71158-12090

AE92..EFI

 2
71158-12090

AE92..GTI

 4
71158-12090

AE92..GTI

 2
71158A - FRAME, FRONT SEAT BACK, UPPER OUTER
71158-12090

AE92..GTI

 2
71158-12090

AE92..EFI

 2
71158-12090

AE92..GTI

 4
71158-12090

AE92..GTI

 2
71158A - FRAME, FRONT SEAT BACK, UPPER OUTER
71158-12090

AE92..GTI

 2
71158-12090

AE92..EFI

 2
71158-12090

AE92..GTI

 4
71158-12090

AE92..GTI

 2
71158A - FRAME, FRONT SEAT BACK, UPPER OUTER
71158-12090

AE92..GTI

 2
71158-12090

AE92..EFI

 2
71158-12090

AE92..GTI

 4
71158-12090

AE92..GTI

 2
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-1H49003

AE92..LHD..EFI

***,SADOW GRAY,TRIM1#

 1
71410-1H49103

AE92..GTI

***,SHADOW GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-1H80003

AE92..LHD..EFI

***,SWEDEN SPEC,SADOW GRAY,TRIM1#

 1
71410-1H56003

AE92..LHD..EFI

***,SADOW GRAY,TRIM1#

 1
71410-1H80003

AE92..LHD..EFI

***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SADOW GRAY,TRIM1#

 1
71410-1H80103

AE92..GTI

***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#

 1
71410-1H56103

AE92..GTI

***,SHADOW GRAY,TRIM1#

 1
71410-1H80103

AE92..GTI

***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71440-1H45003

AE92..LHD..EFI

***,SHADOW GRAY,TRIM1#

 1
71440-1H45103

AE92..GTI

***,SHADOW GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-1H62003

AE92..LHD..EFI

***,SWEDEN SPEC,SHADOW GRAY,TRIM1#

 1
71440-1H63003

AE92..LHD..EFI

***,SHADOW GRAY,TRIM1#

 1
71440-1H62003

AE92..LHD..EFI

***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK & W(*SH),SHADOW GRAY,TRIM1#

 1
71440-1H62103

AE92..GTI

***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK & W(*SH),SHADOW GRAY,TRIM1#

 1
71440-1H63103

AE92..GTI

***,SHADOW GRAY,TRIM1#

 1
71440-1H62103

AE92..GTI

***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-12580

AE92..GTI

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-12580

AE92..GTI

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-12540

AE92..EFI

 1
71551-12550

AE92..GTI

 1
71551-12550

AE92..EFI

 1
71567 - PAD, FRONT SEAT BACK SAFETY
71567-12010

AE92..GTI

 2
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-12480

AE92..LHD..EFI

 1
71630-12480

AE92..LHD..GTI

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-12350

AE92..LHD..EFI

SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH)

 1
71640-12350

AE92..LHD..GTI

 1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71705-1205003

AE92..GTI

SHADOW GRAY,TRIM1#

 1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71705-1205003

AE92..GTI

SHADOW GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-1284013

AE92..EFI

SHADOW GRAY,TRIM1#

 2
71910-1287101

AE92..GTI

BLACK,TRIM1#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-1284013

AE92..EFI

SHADOW GRAY,TRIM1#

 2
71910-1287101

AE92..GTI

BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-1203003

AE92..GTI

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71930-1206003

AE92..GTI

W(LOCK),SHADOW GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-1203003

AE92..GTI

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71930-1206003

AE92..GTI

W(LOCK),SHADOW GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-1203003

AE92..GTI

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71930-1206003

AE92..GTI

W(LOCK),SHADOW GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-1203003

AE92..GTI

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71930-1206003

AE92..GTI

W(LOCK),SHADOW GRAY,TRIM1#

 2
71991 - COVER, HEADREST SUPPORT BASE
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 4
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 2
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 2
71991 - COVER, HEADREST SUPPORT BASE
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 4
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 2
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 2
71991 - COVER, HEADREST SUPPORT BASE
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 4
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 2
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 2
71991 - COVER, HEADREST SUPPORT BASE
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 4
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 2
71991-1201003

AE92..GTI

SHADOW GRAY,TRIM1#

 2
72457C - KNOB, SIDE SUPPORT ADJUSTER
72457-1403023

AE92..GTI

GRAY,TRIM1#

 1
72457C - KNOB, SIDE SUPPORT ADJUSTER
72457-1403023

AE92..GTI

GRAY,TRIM1#

 1
72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72760-12080

AE92..GTI

 1
72774 - PROTECTOR, LUMBAR SUPPORT SPRING
72775-12020

AE92..LHD..GTI

 1
72774 - PROTECTOR, LUMBAR SUPPORT SPRING
72775-12020

AE92..LHD..GTI

 1
72791 - LEVER, LUMBAR SUPPORT
72791-2202023

AE92..GTI

GRAY,TRIM1#

 1
72791 - LEVER, LUMBAR SUPPORT
72791-2202023

AE92..GTI

GRAY,TRIM1#

 1
Common parts
67771-16010
90468-18071
90520-01002
91665-40620
93540-14014
Linked diagrams
8513
