Toyota Corolla sed/lb/wg AE92 ROOF PANEL & BACK WINDOW GLASS

Manufacturers Home
Toyota
EU
COROLLA SED/LB/WG
AE92L-ALMVFW (1987)
6104 - ROOF PANEL & BACK WINDOW GLASS

AE92L-ALMVFW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8705- )LB,SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
63201H - PANEL SUB-ASSY, SLIDE ROOF
63201-12100	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1992	1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-12120	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1992	1
63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH
63207-12050	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1990	1
63207-12051	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1990 - 05/1992	1
63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH
63208-12050	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1990	1
63208-12051	AE92,CE90,EE90..LB	05/1990 - 06/1990	1
63208-12051	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	06/1990 - 05/1992	1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-12050	AE92,CE90,EE90..LB	05/1987 - 06/1988	1
63209-12051	AE92,CE90,EE90..LB	06/1988 - 05/1989	1
63209-12052	AE92,CE90,EE90..LB	05/1989 - 05/1992	1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-12080	AE92,CE90,EE90..LB FR	05/1987 - 05/1992	2
63249-12090	AE92,CE90,EE90..LB RR	05/1987 - 05/1992	2
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-12080	AE92,CE90,EE90..LB FR	05/1987 - 05/1992	2
63249-12090	AE92,CE90,EE90..LB RR	05/1987 - 05/1992	2
63221 - CASING, SLIDING ROOF CABLE GUIDE
63221-16020	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1992	1
63223 - CABLE, SLIDING ROOF DRIVE, RH
63223-12040	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1990	1
63223-12040	AE92,CE90,EE90..LB	05/1990 - 08/1990	1
63223-12042	AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	02/1991 - 06/1991	1
63223-12040	AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	08/1990 - 10/1990	1
63223-12041	AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	10/1990 - 02/1991	1
63223-12043	AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	06/1991 - 05/1992	1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-12030	AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	08/1990 - 10/1990	1
63224-12030	AE92,CE90,EE90..LB	05/1990 - 08/1990	1
63224-12032	AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	02/1991 - 06/1991	1
63224-12030	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1990	1
63224-12031	AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	10/1990 - 02/1991	1
63224-12033	AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	06/1991 - 05/1992	1
63251J - WEATHERSTRIP, SLIDING ROOF, NO.2
63251-12090	AE92,CE90,EE90..GL,GTI,XL	05/1987 - 07/1987	1
63251-12091	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	07/1987 - 05/1992	1
63255 - COVER, SLIDING ROOF GUIDE RAIL, RH
63255-16010	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1992	2
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-12040	AE95;AE92,CE90,EE90..(LB,SED)..(GL,GTI,XL)	05/1987 - 08/1989	1
63260-12041	AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	04/1991 - 06/1991	1
63260-12041	AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	06/1991 - 05/1992	1
63260-12040	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	08/1989 - 04/1991	1
63261C - SHOE, SLIDING ROOF, FRONT RH
63261-16010	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 12/1989	1
63261-12051	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1990 - 05/1992	1
63261-12050	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	12/1989 - 05/1990	1
63262 - SHOE, SLIDING ROOF, FRONT LH
63262-12051	AE92,CE90,EE90..LB	05/1990 - 06/1990	1
63262-16010	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 12/1989	1
63262-12051	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	06/1990 - 05/1992	1
63262-12050	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	12/1989 - 05/1990	1
63265B - GEAR, SLIDING ROOF DRIVE
63265-20010	AE95;AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	11/1989 - 05/1992	1
63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH
63267-12020	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1992	2
63269 - RETAINER, SLIDING ROOF WEATHERSTRIP
63269-20010	AE95;AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1992	1
63277C - SHIM, SLIDING ROOF PANEL
63277-24010	AE95;AE92,CE90,EE90..(LB,SED)..(GL,GTI,XL) T=1.0,RR	05/1987 - 08/1989	1
63277-14020	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI) FR	05/1987 - 05/1992	1
63277-24010	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI) T=1.0,RR	08/1989 - 05/1992	1
63277C - SHIM, SLIDING ROOF PANEL
63277-24010	AE95;AE92,CE90,EE90..(LB,SED)..(GL,GTI,XL) T=1.0,RR	05/1987 - 08/1989	1
63277-14020	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI) FR	05/1987 - 05/1992	1
63277-24010	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI) T=1.0,RR	08/1989 - 05/1992	1
63279A - BRACKET, HOUSING TO RAIL, NO.3
63279-20010	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1992	1
63279D - STOPPER, SLIDING ROOF GUIDE RAIL
63279-32010	AE95;AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1990 - 05/1992	2
63279D - STOPPER, SLIDING ROOF GUIDE RAIL
63279-32010	AE95;AE92,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1990 - 05/1992	2
63699A - SEAL, SLIDING ROOF GUIDE RAIL
63699-16010	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	11/1988 - 05/1992	1
63699-16010	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 12/1987	1
Common parts
90153-60004
90159-40193
90159-60081
90159-60219
90159-60348
90162-50007
90168-40046
90168-40090
90179-06167
90189-05043
90189-06043
90333-20001
90467-14001
90468-16009
90480-26011
93333-30002
96160-00400
Linked diagrams
8202
8401

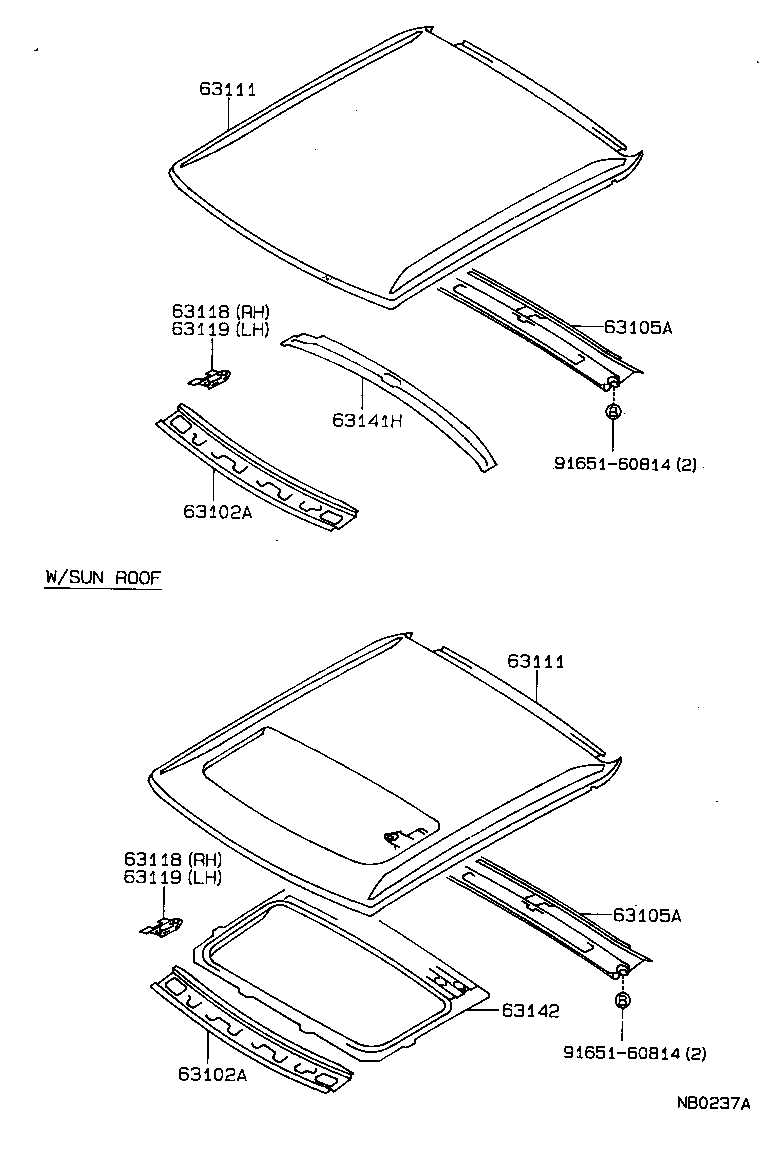

ILLUST NO. 1 OF 2(8705- )LB

Click highlighted areas on diagram

Part #	Description	Period	Qty
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-12050	AE92,CE90,EE90..LB	05/1987 - 05/1992	1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-12050	AE92,CE90,EE90..LB	05/1987 - 05/1992	1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-12180	AE92,CE90,EE90..LB	05/1987 - 05/1992	1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-12180	AE92,CE90,EE90..LB	05/1987 - 05/1992	1
63111 - PANEL, ROOF
63111-12360	AE92,CE90,EE90..LHD..LB	05/1987 - 05/1992	1
63111-12380	EE90..LHD..LB;AE92,CE90..LHD..LB..(GL,GTI,XL) W(SUN ROOF)	05/1987 - 05/1992	1
63111 - PANEL, ROOF
63111-12360	AE92,CE90,EE90..LHD..LB	05/1987 - 05/1992	1
63111-12380	EE90..LHD..LB;AE92,CE90..LHD..LB..(GL,GTI,XL) W(SUN ROOF)	05/1987 - 05/1992	1
63119 - SUPPORT, ROOF PANEL, LH
63119-12010	AE92,CE90,EE90..LHD..LB	05/1987 - 05/1992	1
63119 - SUPPORT, ROOF PANEL, LH
63119-12010	AE92,CE90,EE90..LHD..LB	05/1987 - 05/1992	1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-12130	AE9#,CE90,EE90..LB,SED	05/1987 - 05/1992	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-12030	AE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)	05/1987 - 05/1992	1
Common parts
91651-60814

AE92L-ALMVFW (1987)

ILLUST NO. 2 OF 2(8705- )LB,SED

ILLUST NO. 1 OF 2(8705- )LB
