AE92L-ALMNUW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705-8908)4AF

Click highlighted areas on diagram

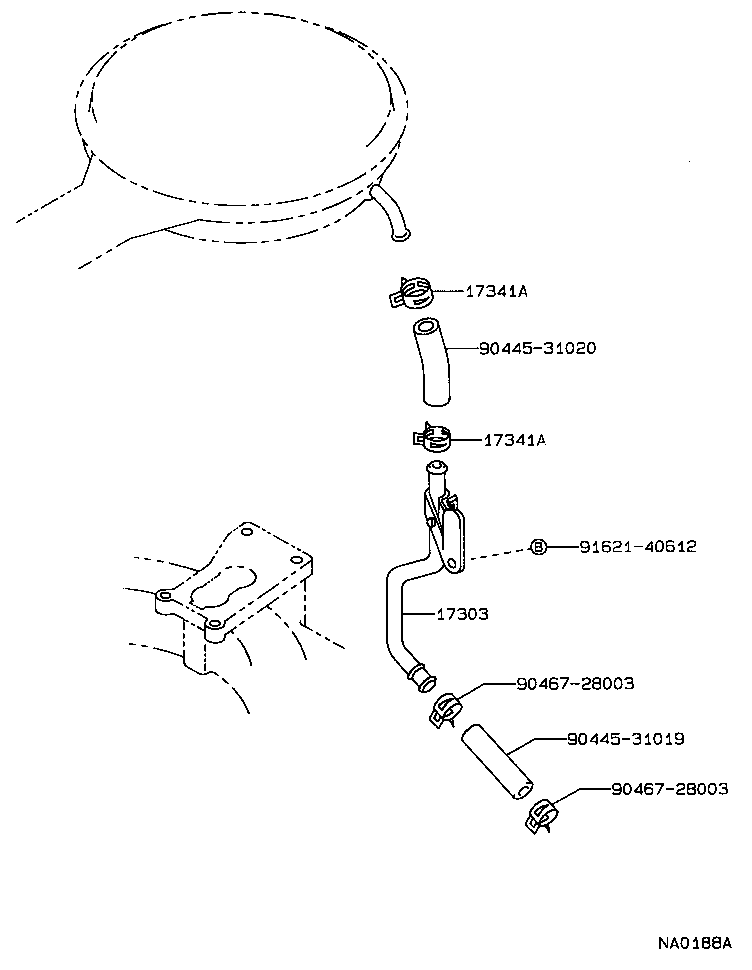

EXHAUST EMISSION CONTROL(US'83)

diagram 17303 17341A 17341A 9044531019 9044531020 9046728003 9046728003 9162140612
Part # Description Qty Price
17303 - PIPE SUB-ASSY, AIR
17303-16080

4AF..AE92..LHD

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26004

4AF..AE92..LHD..5F

 2
90467-26004

4AF..AE92..LHD..5F

EX. EMISSION CONTROL(*77)

 2
90467-28003

4AF..AE92..LHD..5F

EX. EMISSION CONTROL(US'83)

 2
90467-26004

4AF..AE92..LHD..5F;4AF..AE95..LHD..SED

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26004

4AF..AE92..LHD..5F

 2
90467-26004

4AF..AE92..LHD..5F

EX. EMISSION CONTROL(*77)

 2
90467-28003

4AF..AE92..LHD..5F

EX. EMISSION CONTROL(US'83)

 2
90467-26004

4AF..AE92..LHD..5F;4AF..AE95..LHD..SED

 2
Common parts
90445-31019
90445-31020
90467-28003
91621-40612

(8705-8911)4AF

Click highlighted areas on diagram

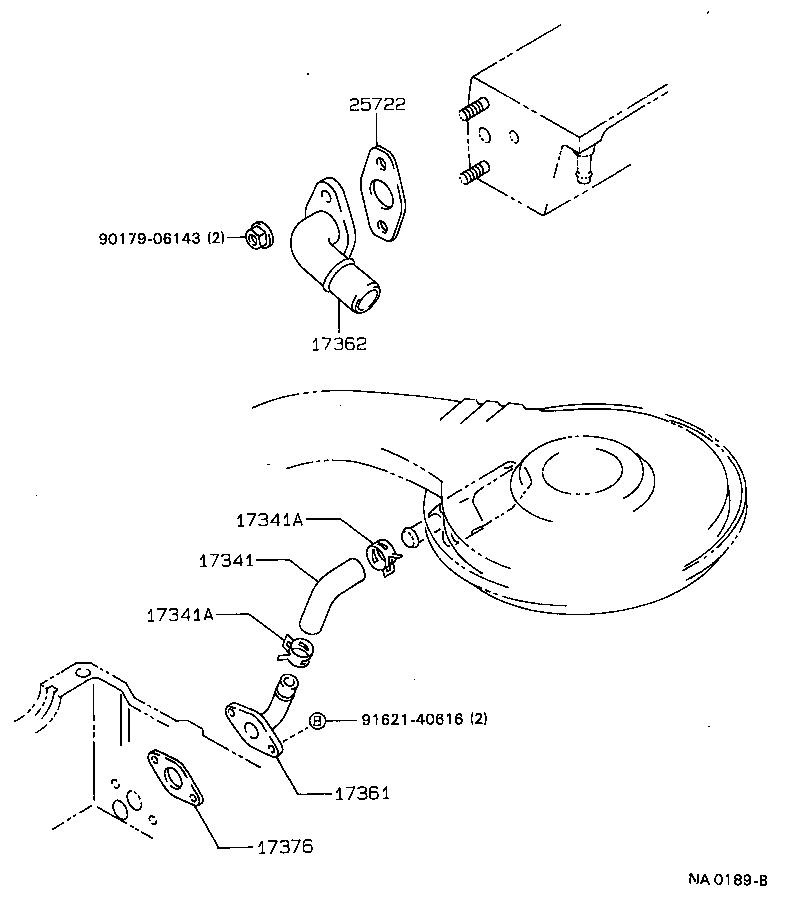

EX.EMISSION CONT.=PHASE C/ANNEX25

diagram 17341 17341A 17341A 17361 17362 17376 25722 9017906143 9162140616
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-15140

4AF..AE92..LHD..5F;4AF..AE95..LHD..SED

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26004

4AF..AE92..LHD..5F

 2
90467-26004

4AF..AE92..LHD..5F

EX. EMISSION CONTROL(*77)

 2
90467-28003

4AF..AE92..LHD..5F

EX. EMISSION CONTROL(US'83)

 2
90467-26004

4AF..AE92..LHD..5F;4AF..AE95..LHD..SED

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26004

4AF..AE92..LHD..5F

 2
90467-26004

4AF..AE92..LHD..5F

EX. EMISSION CONTROL(*77)

 2
90467-28003

4AF..AE92..LHD..5F

EX. EMISSION CONTROL(US'83)

 2
90467-26004

4AF..AE92..LHD..5F;4AF..AE95..LHD..SED

 2
17361 - TUBE, AIR
17361-15080

4AF..AE92..LHD..5F;4AF..AE95..LHD..SED

 1
17362 - TUBE, AIR, NO.2
17361-16070

4AF..AE92..LHD..5F;4AF..AE95..LHD..SED

 1
17376 - GASKET, AIR TUBE, NO.1
17376-15020

4AF..AE92..LHD..5F;4AF..AE95..LHD..SED

 1
25722 - GASKET, ELECTRIC AIR CONTROL VALVE
25722-15020

4AF..AE92..LHD..5F;4AF..AE95..LHD..SED

 1
Common parts
90179-06143
91621-40616
