AE92L-ALHDUW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

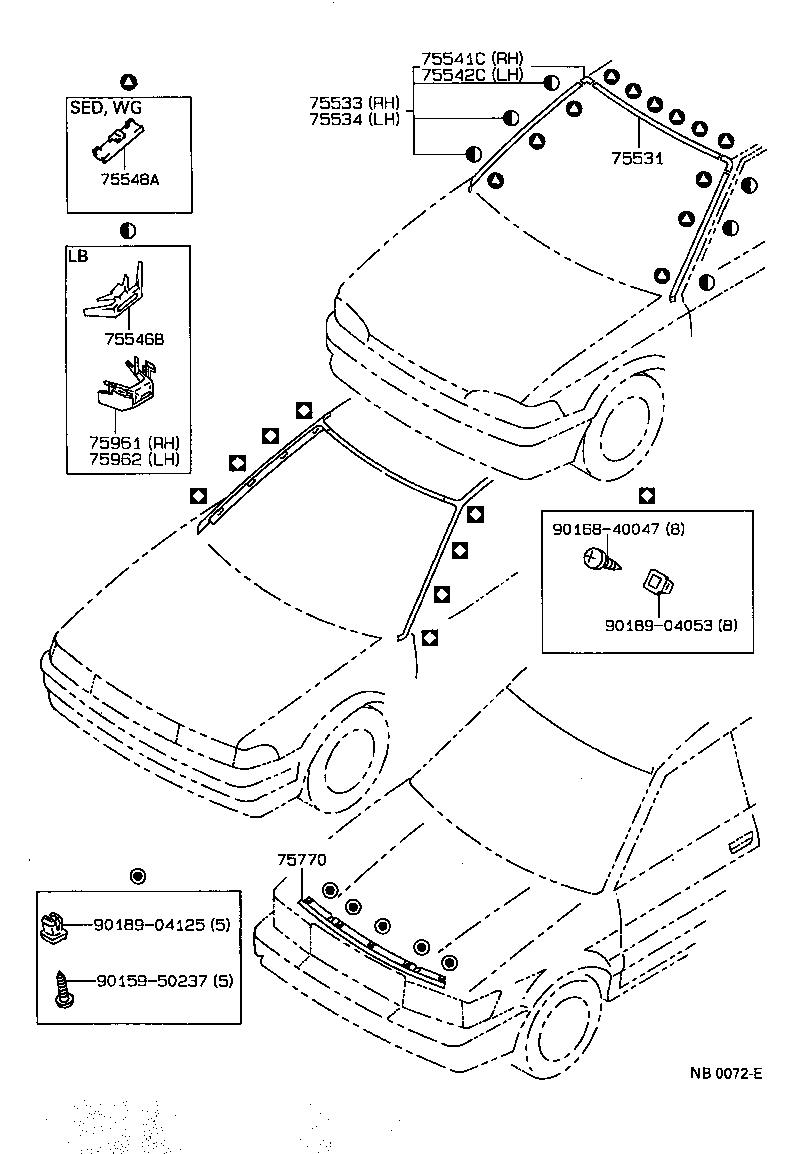

Click highlighted areas on diagram

diagram 75531 75533 75534 75541C 75542C 75546B 75548A 75770 75961 75962 9015950237 9016840047 9018904053 9018904125
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12310

AE95..WG;AE92,CE90,EE90..LB..(GTI,XL,XLI)

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12310

AE92,CE90,EE90..LHD..LB..XL

 1
75533-12370

AE95..WG;AE92,CE90,EE90..LB..(GTI,XL,XLI)

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12300

AE95..WG;AE92,CE90,EE90..LB..(GTI,XL,XLI)

 1
75534-12240

AE92,CE90,EE90..LHD..LB..XL

 1
Common parts
90159-50237
90168-40047
90189-04053
90189-04125
