AE92L-ALHDUW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )LB

Click highlighted areas on diagram

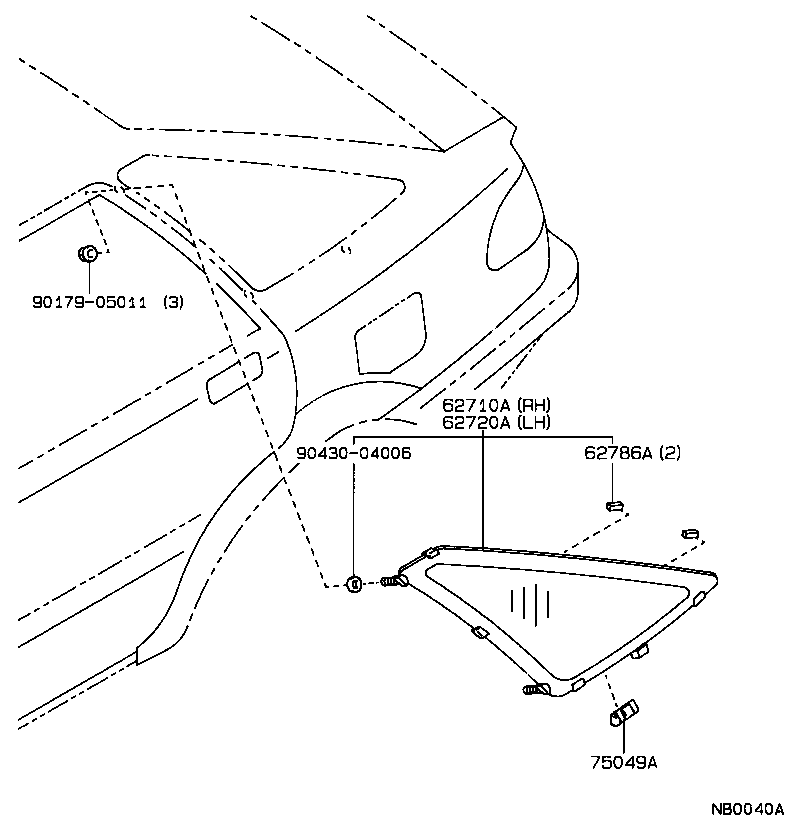

diagram 62710A 62720A 62786A 75049A 9017905011 9043004006
Part # Description Qty Price
62710A - WINDOW ASSY, QUARTER, RH
62710-12500

AE92,CE90,EE90..LB

*TT,T=3.5

 1
62710-12490

AE92,CE90,EE90..LB..(GL,GLI,XL,XLI)

*TEM,T=3.5

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-12500

AE92,CE90,EE90..LB

*TT,T=3.5

 1
62720-12490

AE92,CE90,EE90..LB..(GL,GLI,XL,XLI)

*TEM,T=3.5

 1
62786A - SPACER, QUARTER WINDOW GLASS, NO.2
62786-12010

AE92,CE90,EE90..LB

 4
75049A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-12040

AE92,CE90,EE90..LB

 8
Common parts
90179-05011
90430-04006
