AE92L-ALHDUW (1987)
Toyota Corolla Sed/Lb/Wg
Production
May 1987
-
Aug 1989
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8705- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12600 |
EE90;AE9#..LHD..(GL,GLI,XL,XLI) |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
AE9#,CE90,EE90 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12650 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AE9#,CE90,EE90 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AE9#,CE90,EE90 |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-12630 |
AE9#,CE90,EE90 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-12520 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AE9#,CE90,EE90 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

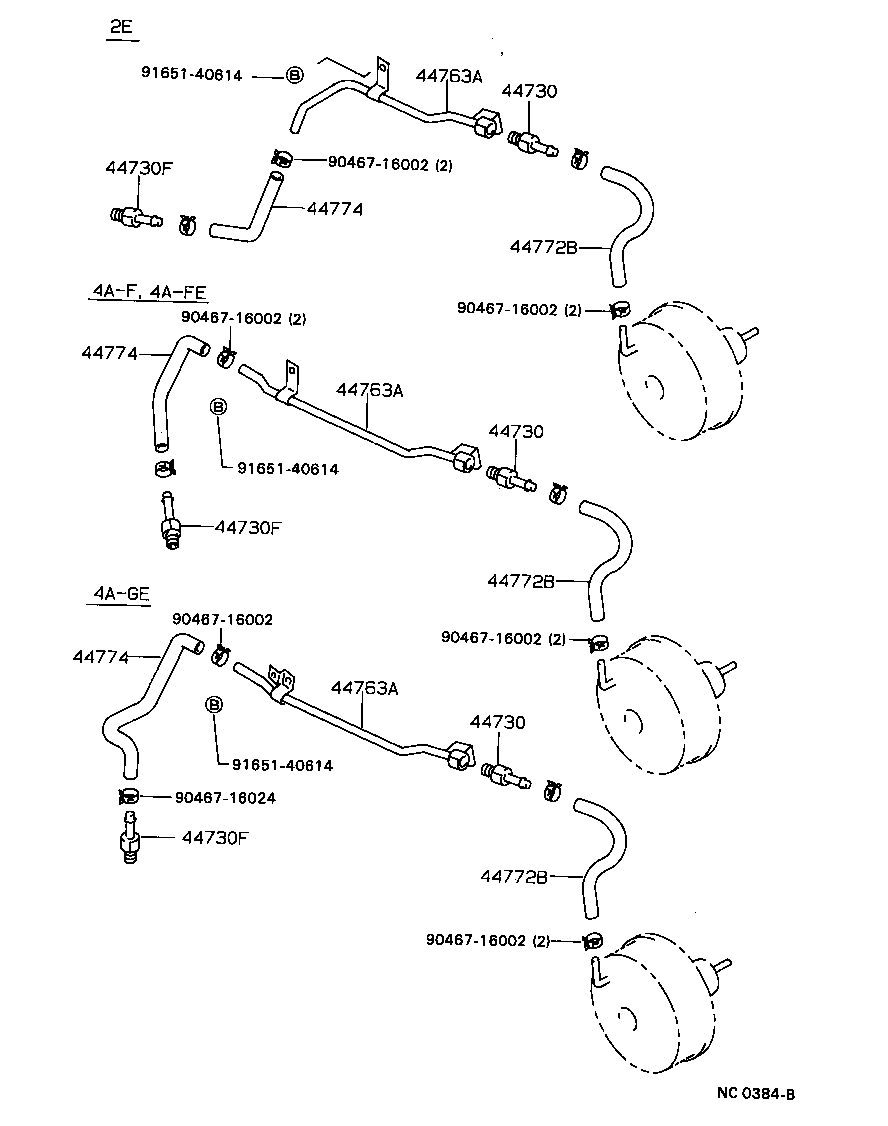

ILLUST NO. 2 OF 2(8705- )AE9#,EE90..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE90;AE9#..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE90;AE9#..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE90;AE9#..LHD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
AE9#..CBR |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
AE9#..CBR |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
AE9#..CBR |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12090 |
AE9#..LHD..(GL,GLI,XL,XLI) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12090 |
AE9#..LHD..(GL,GLI,XL,XLI) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12090 |
AE9#..LHD..(GL,GLI,XL,XLI) |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12330 |
AE9#,EE90..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12330 |
AE9#,EE90..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12330 |
AE9#,EE90..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12110 |
AE9#..LHD..CBR |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12110 |
AE9#..LHD..CBR |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12110 |
AE9#..LHD..CBR |
1 | ||
| Common parts | ||||
| 90467-16002 | ||||
| 90467-16024 | ||||
| 91651-40614 | ||||
