AE92L-AEMNUW (1987)
Toyota Corolla Sed/Lb/Wg

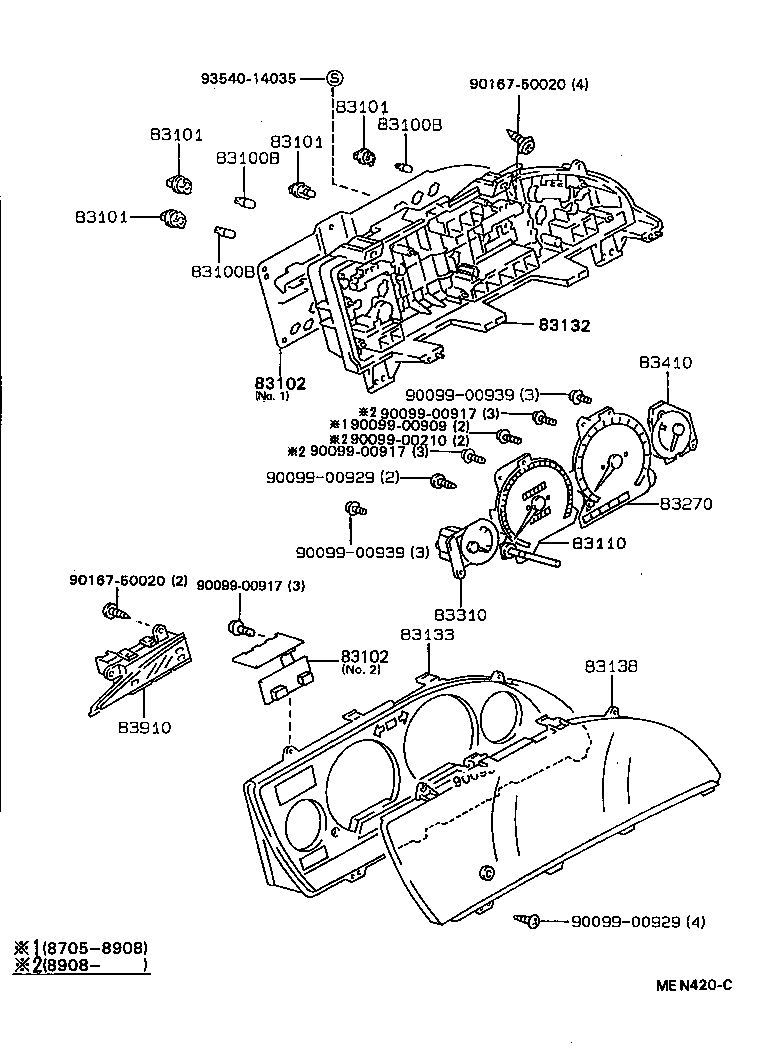

ILLUST NO. 1 OF 3(8705- )GL,GLI,STD,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#,CE90,EE90..GL,XL 12V 3.4W |
1 | ||
| 83101-20080 |
AE9#,CE90,EE90..GL,GLI,XL,XLI 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W |
8 | ||
| 90981-11018 |
AE9#,EE90..GL,XL 12V 1.2W W/O SOCKET |
8 | ||
| 83101-20080 |
AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 83101-20080 |
EE90..LHD..(GL,XL);AE9#..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 90981-11018 |
AE9#,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83109-12030 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE90..CBR,DSL 12V 1.2W W/O SOCKET |
4 | ||
| 90981-11018 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 12V 1.2W W/O SOCKET |
4 | ||
| 99132-12034 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W |
1 | ||
| 99132-12034 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W |
8 | ||
| 90981-11018 |
AE92,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#,CE90,EE90..GL,XL 12V 3.4W |
1 | ||
| 83101-20080 |
AE9#,CE90,EE90..GL,GLI,XL,XLI 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W |
8 | ||
| 90981-11018 |
AE9#,EE90..GL,XL 12V 1.2W W/O SOCKET |
8 | ||
| 83101-20080 |
AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 83101-20080 |
EE90..LHD..(GL,XL);AE9#..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 90981-11018 |
AE9#,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83109-12030 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE90..CBR,DSL 12V 1.2W W/O SOCKET |
4 | ||
| 90981-11018 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 12V 1.2W W/O SOCKET |
4 | ||
| 99132-12034 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W |
1 | ||
| 99132-12034 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W |
8 | ||
| 90981-11018 |
AE92,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#,CE90,EE90..GL,XL 12V 3.4W |
1 | ||
| 83101-20080 |
AE9#,CE90,EE90..GL,GLI,XL,XLI 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W |
8 | ||
| 90981-11018 |
AE9#,EE90..GL,XL 12V 1.2W W/O SOCKET |
8 | ||
| 83101-20080 |
AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 83101-20080 |
EE90..LHD..(GL,XL);AE9#..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 90981-11018 |
AE9#,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83109-12030 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE90..CBR,DSL 12V 1.2W W/O SOCKET |
4 | ||
| 90981-11018 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 12V 1.2W W/O SOCKET |
4 | ||
| 99132-12034 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W |
1 | ||
| 99132-12034 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W |
8 | ||
| 90981-11018 |
AE92,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE90,EE90..GL,XL 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,EE90..GL,XL 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE9#,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101-14040 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W BULB |
11 | ||
| 83101-14030 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,CE90,EE90..CBR,DSL 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W BULB |
11 | ||
| 83101-14040 |
AE92,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE90,EE90..GL,XL 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,EE90..GL,XL 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE9#,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101-14040 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W BULB |
11 | ||
| 83101-14030 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,CE90,EE90..CBR,DSL 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W BULB |
11 | ||
| 83101-14040 |
AE92,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE90,EE90..GL,XL 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,EE90..GL,XL 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE9#,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101-14040 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W BULB |
11 | ||
| 83101-14030 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,CE90,EE90..CBR,DSL 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W BULB |
11 | ||
| 83101-14040 |
AE92,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E720 |
AE9#,EE90..CBR NO.2 |
1 | ||
| 83247-1E620 |
AE9#,EE90..LHD..(GL,XL) W(TACHOMETER),NO.1 |
1 | ||
| 83247-1E700 |
AE9#,EE90..GL,XL W(TACHOMETER),NO.2 |
1 | ||
| 83247-1E340 |
AE9#,EE90..LHD..CBR NO.1 |
1 | ||
| 83247-1E700 |
EE90..STD..EFI;AE92,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER),NO.2 |
1 | ||
| 83247-1E620 |
AE92,EE90..LHD..(GL,XL) W(TACHOMETER),NO.1 |
1 | ||
| 83247-1E340 |
AE92,EE90..LHD..CBR NO.1 |
1 | ||
| 83247-1E720 |
AE92,EE90..LHD..(GL,GLI,STD,XL,XLI) NO.2 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E720 |
AE9#,EE90..CBR NO.2 |
1 | ||
| 83247-1E620 |
AE9#,EE90..LHD..(GL,XL) W(TACHOMETER),NO.1 |
1 | ||
| 83247-1E700 |
AE9#,EE90..GL,XL W(TACHOMETER),NO.2 |
1 | ||
| 83247-1E340 |
AE9#,EE90..LHD..CBR NO.1 |
1 | ||
| 83247-1E700 |
EE90..STD..EFI;AE92,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER),NO.2 |
1 | ||
| 83247-1E620 |
AE92,EE90..LHD..(GL,XL) W(TACHOMETER),NO.1 |
1 | ||
| 83247-1E340 |
AE92,EE90..LHD..CBR NO.1 |
1 | ||
| 83247-1E720 |
AE92,EE90..LHD..(GL,GLI,STD,XL,XLI) NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E360 |
AE9#..LHD..CBR W(TACHOMETER) |
1 | ||
| 83110-1E340 |
AE9#..LHD..CBR |
1 | ||
| 83110-1E341 |
AE92..LHD..CBR |
1 | ||
| 83110-1E361 |
AE92..LHD..CBR W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A270 |
AE9#,CE90,EE90..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83132-1A230 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 83132-1A230 |
AE9#,CE90,EE90..LHD..(CBR,DSL) |
1 | ||
| 83132-1A270 |
EE90..STD..EFI;AE92,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A750 |
AE9#,CE90,EE90..LHD..(CBR,DSL) |
1 | ||
| 83133-1E050 |
AE9#,EE90..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83133-1A750 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 83133-1E051 |
AE92,EE90..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A030 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E610 |
AE9#,CE90,EE90..LHD..(CBR,DSL) NO.3 |
1 | ||
| 83145-1E710 |
AE9#,EE90..LHD..CBR NO.2 |
1 | ||
| 83145-1E610 |
AE92,CE90,EE90..LHD..(CBR,DSL) NO.3 |
1 | ||
| 83145-1E810 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) NO.1 |
1 | ||
| 83145-1E810 |
AE9#,CE90,EE90..LHD..(CBR,DSL) NO.1 |
1 | ||
| 83145-1E710 |
AE92,EE90..LHD..(GL,GLI,STD,XL,XLI) NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E610 |
AE9#,CE90,EE90..LHD..(CBR,DSL) NO.3 |
1 | ||
| 83145-1E710 |
AE9#,EE90..LHD..CBR NO.2 |
1 | ||
| 83145-1E610 |
AE92,CE90,EE90..LHD..(CBR,DSL) NO.3 |
1 | ||
| 83145-1E810 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) NO.1 |
1 | ||
| 83145-1E810 |
AE9#,CE90,EE90..LHD..(CBR,DSL) NO.1 |
1 | ||
| 83145-1E710 |
AE92,EE90..LHD..(GL,GLI,STD,XL,XLI) NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E610 |
AE9#,CE90,EE90..LHD..(CBR,DSL) NO.3 |
1 | ||
| 83145-1E710 |
AE9#,EE90..LHD..CBR NO.2 |
1 | ||
| 83145-1E610 |
AE92,CE90,EE90..LHD..(CBR,DSL) NO.3 |
1 | ||
| 83145-1E810 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) NO.1 |
1 | ||
| 83145-1E810 |
AE9#,CE90,EE90..LHD..(CBR,DSL) NO.1 |
1 | ||
| 83145-1E710 |
AE92,EE90..LHD..(GL,GLI,STD,XL,XLI) NO.2 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A310 |
AE9#,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 83243-1A250 |
AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER) |
1 | ||
| 83243-1A490 |
AE9#..LHD..(GL,GLI,XL,XLI) |
1 | ||
| 83243-1A311 |
AE92,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 83243-1A251 |
EE90..STD..EFI;AE92,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12410 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-33579 | ||||
| 90167-50020 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
ILLUST NO. 3 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391D - SWITCH, VACUUM | ||||
| 83391-16020 |
AE9#,EE90 |
1 | ||
| 83391-16020 |
AE9#,EE90..LHD |
1 | ||
| 83391-16020 |
AE9#,EE90..GL,GTI,STD,XL |
1 | ||
| 83391D - SWITCH, VACUUM | ||||
| 83391-16020 |
AE9#,EE90 |
1 | ||
| 83391-16020 |
AE9#,EE90..LHD |
1 | ||
| 83391-16020 |
AE9#,EE90..GL,GTI,STD,XL |
1 | ||
| 83391D - SWITCH, VACUUM | ||||
| 83391-16020 |
AE9#,EE90 |
1 | ||
| 83391-16020 |
AE9#,EE90..LHD |
1 | ||
| 83391-16020 |
AE9#,EE90..GL,GTI,STD,XL |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-12140 |
AE9#,EE90..LHD |
1 | ||
| 83399-12140 |
AE9#,EE90 |
1 | ||
| 83399-12140 |
AE9#,EE90..GL,GTI,STD,XL |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-12140 |
AE9#,EE90..LHD |
1 | ||
| 83399-12140 |
AE9#,EE90 |
1 | ||
| 83399-12140 |
AE9#,EE90..GL,GTI,STD,XL |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-12140 |
AE9#,EE90..LHD |
1 | ||
| 83399-12140 |
AE9#,EE90 |
1 | ||
| 83399-12140 |
AE9#,EE90..GL,GTI,STD,XL |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE9#,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE9#..CBR L=600 |
1 | ||
| 83090-12020 |
AE92..LHD..CBR |
1 | ||
| 83090-12030 |
AE9#..LHD..CBR L=360 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE9#,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE9#..CBR L=600 |
1 | ||
| 83090-12020 |
AE92..LHD..CBR |
1 | ||
| 83090-12030 |
AE9#..LHD..CBR L=360 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE9#,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE9#..CBR L=600 |
1 | ||
| 83090-12020 |
AE92..LHD..CBR |
1 | ||
| 83090-12030 |
AE9#..LHD..CBR L=360 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE9#,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE9#..CBR L=600 |
1 | ||
| 83090-12020 |
AE92..LHD..CBR |
1 | ||
| 83090-12030 |
AE9#..LHD..CBR L=360 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE9#,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE9#..CBR L=600 |
1 | ||
| 83090-12020 |
AE92..LHD..CBR |
1 | ||
| 83090-12030 |
AE9#..LHD..CBR L=360 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE9#,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE9#..CBR L=600 |
1 | ||
| 83090-12020 |
AE92..LHD..CBR |
1 | ||
| 83090-12030 |
AE9#..LHD..CBR L=360 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AE9#,EE90 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AE9#,EE90 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AE9#,EE90 |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 90464-00082 | ||||
| 90464-00151 | ||||
| 90464-00175 | ||||
ILLUST NO. 1 OF 3(8705- )GL,GLI,XL,XLI
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#,CE90,EE90..GL,XL 12V 3.4W |
1 | ||
| 83101-20080 |
AE9#,CE90,EE90..GL,GLI,XL,XLI 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W |
8 | ||
| 90981-11018 |
AE9#,EE90..GL,XL 12V 1.2W W/O SOCKET |
8 | ||
| 83101-20080 |
AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 83101-20080 |
EE90..LHD..(GL,XL);AE9#..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 90981-11018 |
AE9#,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83109-12030 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE90..CBR,DSL 12V 1.2W W/O SOCKET |
4 | ||
| 90981-11018 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 12V 1.2W W/O SOCKET |
4 | ||
| 99132-12034 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W |
1 | ||
| 99132-12034 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W |
8 | ||
| 90981-11018 |
AE92,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#,CE90,EE90..GL,XL 12V 3.4W |
1 | ||
| 83101-20080 |
AE9#,CE90,EE90..GL,GLI,XL,XLI 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W |
8 | ||
| 90981-11018 |
AE9#,EE90..GL,XL 12V 1.2W W/O SOCKET |
8 | ||
| 83101-20080 |
AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 83101-20080 |
EE90..LHD..(GL,XL);AE9#..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 90981-11018 |
AE9#,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83109-12030 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE90..CBR,DSL 12V 1.2W W/O SOCKET |
4 | ||
| 90981-11018 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 12V 1.2W W/O SOCKET |
4 | ||
| 99132-12034 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W |
1 | ||
| 99132-12034 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W |
8 | ||
| 90981-11018 |
AE92,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#,CE90,EE90..GL,XL 12V 3.4W |
1 | ||
| 83101-20080 |
AE9#,CE90,EE90..GL,GLI,XL,XLI 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W |
8 | ||
| 90981-11018 |
AE9#,EE90..GL,XL 12V 1.2W W/O SOCKET |
8 | ||
| 83101-20080 |
AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 83101-20080 |
EE90..LHD..(GL,XL);AE9#..LHD..(GL,GLI,XL,XLI) 12V 1.4W,W(SOCKET) |
3 | ||
| 90981-11018 |
AE9#,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83109-12030 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE90..CBR,DSL 12V 1.2W W/O SOCKET |
4 | ||
| 90981-11018 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 12V 1.2W W/O SOCKET |
4 | ||
| 99132-12034 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W |
1 | ||
| 99132-12034 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W |
8 | ||
| 90981-11018 |
AE92,EE90..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE90,EE90..GL,XL 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,EE90..GL,XL 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE9#,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101-14040 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W BULB |
11 | ||
| 83101-14030 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,CE90,EE90..CBR,DSL 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W BULB |
11 | ||
| 83101-14040 |
AE92,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE90,EE90..GL,XL 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,EE90..GL,XL 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE9#,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101-14040 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W BULB |
11 | ||
| 83101-14030 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,CE90,EE90..CBR,DSL 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W BULB |
11 | ||
| 83101-14040 |
AE92,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE90,EE90..GL,XL 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,EE90..GL,XL 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE9#,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101-14040 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W BULB |
11 | ||
| 83101-14030 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,CE90,EE90..CBR,DSL 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W BULB |
11 | ||
| 83101-14040 |
AE92,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE90,EE90..GL,XL 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,EE90..GL,XL 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE9#,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83101-14040 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE9#,CE90,EE90..CBR,DSL 12V 3.4W BULB |
11 | ||
| 83101-14030 |
EE90..STD..EFI;AE92,EE90..GL,GLI,XL,XLI 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE9#,CE90,EE90..CBR,DSL 14V 1.4W BULB |
4 | ||
| 83101-14030 |
AE92,CE90,EE90..LHD..(CBR,DSL) 12V 3.4W BULB |
11 | ||
| 83101-14040 |
AE92,EE90..LHD..(GL,XL) 14V 1.4W BULB |
6 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E720 |
AE9#,EE90..CBR NO.2 |
1 | ||
| 83247-1E620 |
AE9#,EE90..LHD..(GL,XL) W(TACHOMETER),NO.1 |
1 | ||
| 83247-1E700 |
AE9#,EE90..GL,XL W(TACHOMETER),NO.2 |
1 | ||
| 83247-1E340 |
AE9#,EE90..LHD..CBR NO.1 |
1 | ||
| 83247-1E700 |
EE90..STD..EFI;AE92,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER),NO.2 |
1 | ||
| 83247-1E620 |
AE92,EE90..LHD..(GL,XL) W(TACHOMETER),NO.1 |
1 | ||
| 83247-1E340 |
AE92,EE90..LHD..CBR NO.1 |
1 | ||
| 83247-1E720 |
AE92,EE90..LHD..(GL,GLI,STD,XL,XLI) NO.2 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E720 |
AE9#,EE90..CBR NO.2 |
1 | ||
| 83247-1E620 |
AE9#,EE90..LHD..(GL,XL) W(TACHOMETER),NO.1 |
1 | ||
| 83247-1E700 |
AE9#,EE90..GL,XL W(TACHOMETER),NO.2 |
1 | ||
| 83247-1E340 |
AE9#,EE90..LHD..CBR NO.1 |
1 | ||
| 83247-1E700 |
EE90..STD..EFI;AE92,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER),NO.2 |
1 | ||
| 83247-1E620 |
AE92,EE90..LHD..(GL,XL) W(TACHOMETER),NO.1 |
1 | ||
| 83247-1E340 |
AE92,EE90..LHD..CBR NO.1 |
1 | ||
| 83247-1E720 |
AE92,EE90..LHD..(GL,GLI,STD,XL,XLI) NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E360 |
AE9#..LHD..CBR W(TACHOMETER) |
1 | ||
| 83110-1E340 |
AE9#..LHD..CBR |
1 | ||
| 83110-1E341 |
AE92..LHD..CBR |
1 | ||
| 83110-1E361 |
AE92..LHD..CBR W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A270 |
AE9#,CE90,EE90..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83132-1A230 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 83132-1A230 |
AE9#,CE90,EE90..LHD..(CBR,DSL) |
1 | ||
| 83132-1A270 |
EE90..STD..EFI;AE92,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A750 |
AE9#,CE90,EE90..LHD..(CBR,DSL) |
1 | ||
| 83133-1E050 |
AE9#,EE90..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83133-1A750 |
AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 83133-1E051 |
AE92,EE90..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A030 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1E050 |
AE9#..LHD..(GL,GLI,XL,XLI) |
1 | ||
| 83242-1E051 |
AE9#..LHD..(GL,GLI,XL,XLI) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A310 |
AE9#,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 83243-1A250 |
AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER) |
1 | ||
| 83243-1A490 |
AE9#..LHD..(GL,GLI,XL,XLI) |
1 | ||
| 83243-1A311 |
AE92,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 83243-1A251 |
EE90..STD..EFI;AE92,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A671 |
EE90..STD..EFI;AE9#,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER) |
1 | ||
| 83244-1A670 |
AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) W(TACHOMETER) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12410 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90167-50020 | ||||
| 93540-14035 | ||||
ILLUST NO. 2 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
CE90,EE90;AE92..LHD;AE92..RHD..5F |
1 | ||
| 83710-12461 |
CE90,EE90;AE92..LHD;AE92..RHD..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
CE90,EE90;AE92..LHD;AE92..RHD..5F |
1 | ||
| 83710-12461 |
CE90,EE90;AE92..LHD;AE92..RHD..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
CE90,EE90;AE92..LHD;AE92..RHD..5F |
1 | ||
| 83710-12461 |
CE90,EE90;AE92..LHD;AE92..RHD..5F |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12620 |
AE92,CE90,EE90..LHD |
1 | ||
| 83710-12450 |
AE9#,CE90,EE90..LHD |
1 | ||
| 83710-12451 |
AE9#,CE90,EE90..LHD |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12620 |
AE92,CE90,EE90..LHD |
1 | ||
| 83710-12450 |
AE9#,CE90,EE90..LHD |
1 | ||
| 83710-12451 |
AE9#,CE90,EE90..LHD |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 83791-12060 | ||||
| 91561-40614 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
ILLUST NO. 3 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391D - SWITCH, VACUUM | ||||
| 83391-16020 |
AE9#,EE90 |
1 | ||
| 83391-16020 |
AE9#,EE90..LHD |
1 | ||
| 83391-16020 |
AE9#,EE90..GL,GTI,STD,XL |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-12140 |
AE9#,EE90..LHD |
1 | ||
| 83399-12140 |
AE9#,EE90 |
1 | ||
| 83399-12140 |
AE9#,EE90..GL,GTI,STD,XL |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE9#,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE9#..CBR L=600 |
1 | ||
| 83090-12020 |
AE92..LHD..CBR |
1 | ||
| 83090-12030 |
AE9#..LHD..CBR L=360 |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
