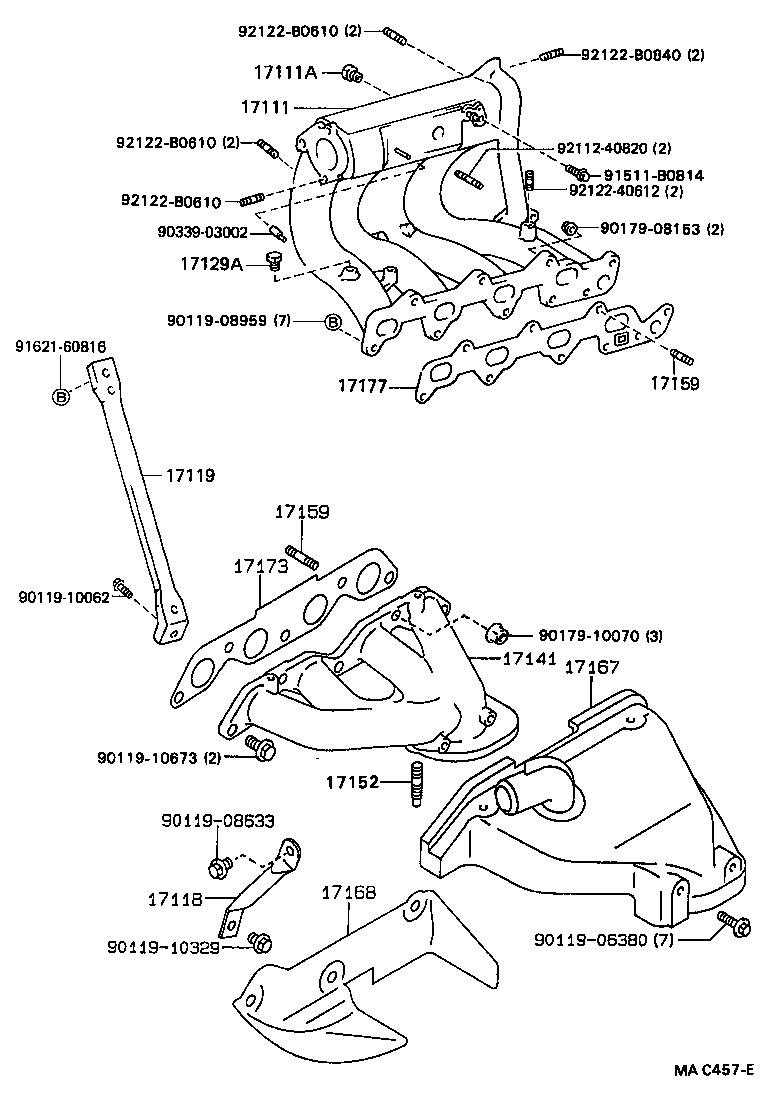

Toyota Corolla sed/lb/wg AE92 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-16080	4AF..AE9#	05/1987 - 08/1990	1
17101-16140	4AFE..AE92	08/1989 - 05/1992	1
17101-16060	4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77)	05/1987 - 11/1989	1
17101-16080	4AF..AE92	08/1990 - 05/1992	1
17111A - PLUG, NO.1
90344-53011	4AF..AE92..LHD..5F;4AF..AE95..LHD..SED	08/1989 - 11/1989	1
90344-53011	4AF..AE92..LHD	05/1987 - 08/1987	1
90345-51006	4AFE..AE92	08/1990 - 05/1992	1
17118 - STAY, MANIFOLD
17118-16050	4AF#..AE92	08/1990 - 05/1992	1
17118-16050	4AF#..AE9#	05/1987 - 08/1990	1
17119 - STAY, MANIFOLD, NO.2
17139-15020	4AF..AE92	05/1987 - 05/1992	1
17129A - UNION, NO.1
90345-51006	4AFE..AE92	08/1989 - 05/1992	1
17141 - MANIFOLD, EXHAUST
17141-16200	4AF#..AE9#	05/1987 - 08/1989	1
17141-16200	4AF#..AE92	08/1990 - 05/1992	1
17141-16200	4AF#..AE9#	08/1989 - 08/1990	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058	4AF#..AE9#	05/1987 - 05/1988	3
90116-10146	4AF#,4AGE..AE92	04/1991 - 05/1992	3
90116-10146	4AF#,4AGE..AE92	08/1990 - 12/1990	3
90116-10146	4AF#..AE92	12/1990 - 04/1991	3
90116-10146	4AF#,4AGE..AE9#	08/1989 - 08/1990	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032	4AF#..AE9# EXHAUST MANIFOLD	05/1987 - 07/1989	2
92112-60825	4AF#..AE9# INTAKE MANIFOLD	05/1987 - 08/1990	2
92112-61028	4AF#..AE92 EXHAUST MANIFOLD	08/1990 - 05/1992	3
92112-60825	4AF#..AE92 INTAKE MANIFOLD	08/1990 - 05/1992	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032	4AF#..AE9# EXHAUST MANIFOLD	05/1987 - 07/1989	2
92112-60825	4AF#..AE9# INTAKE MANIFOLD	05/1987 - 08/1990	2
92112-61028	4AF#..AE92 EXHAUST MANIFOLD	08/1990 - 05/1992	3
92112-60825	4AF#..AE92 INTAKE MANIFOLD	08/1990 - 05/1992	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-16070	4AF..AE92..5F	08/1990 - 05/1992	1
17107-16070	4AF..AE9#	05/1987 - 08/1990	1
17167-16090	4AFE..AE92	08/1990 - 05/1992	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-16050	4AF#..AE92	08/1990 - 05/1992	1
17168-16050	4AF#..AE9#	05/1987 - 08/1989	1
17168-16050	4AF#..AE9#	08/1989 - 08/1990	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15040	4AFE..AE92	07/1991 - 05/1992	1
17173-15011	4AF..AE92	07/1991 - 05/1992	1
17173-15011	4AF#..AE9#	12/1989 - 08/1990	1
17173-15011	4AF#..AE92	08/1990 - 07/1991	1
17173-15010	4AF#..AE9#	05/1987 - 12/1989	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-16030	4AF..AE9#	05/1987 - 08/1989	1
17171-15020	4AF..AE92..LHD..5F EX. EMISSION CONTROL(*77 OR US'83)	05/1987 - 08/1989	1
17171-15020	4AF..AE92..LHD..5F;4AF..AE95..LHD..SED EX. EMISSION CONTROL(*77)	08/1989 - 11/1989	1
17171-16031	4AF..AE9#	12/1989 - 08/1990	1
17171-16030	4AF..AE9#	08/1989 - 12/1989	1
17171-15021	4AFE..AE92	08/1990 - 05/1992	1
17171-15021	4AFE..AE9#	12/1989 - 08/1990	1
17171-16031	4AF..AE92	08/1990 - 05/1992	1
Common parts
90119-06380
90119-08633
90119-08959
90119-10062
90119-10329
90119-10673
90179-08153
90179-10070
90339-03002
91511-B0814
91621-60816
92112-40820
92122-40612
92122-B0610
92122-B0840

AE92L-AEMDKW (1989)

(8908- )4AFE..AE92
