AE95L-CWMXKA (1988)

Toyota Corolla Jpp

Production Feb 1988 - Sep 1990
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8802- )AE95..5F

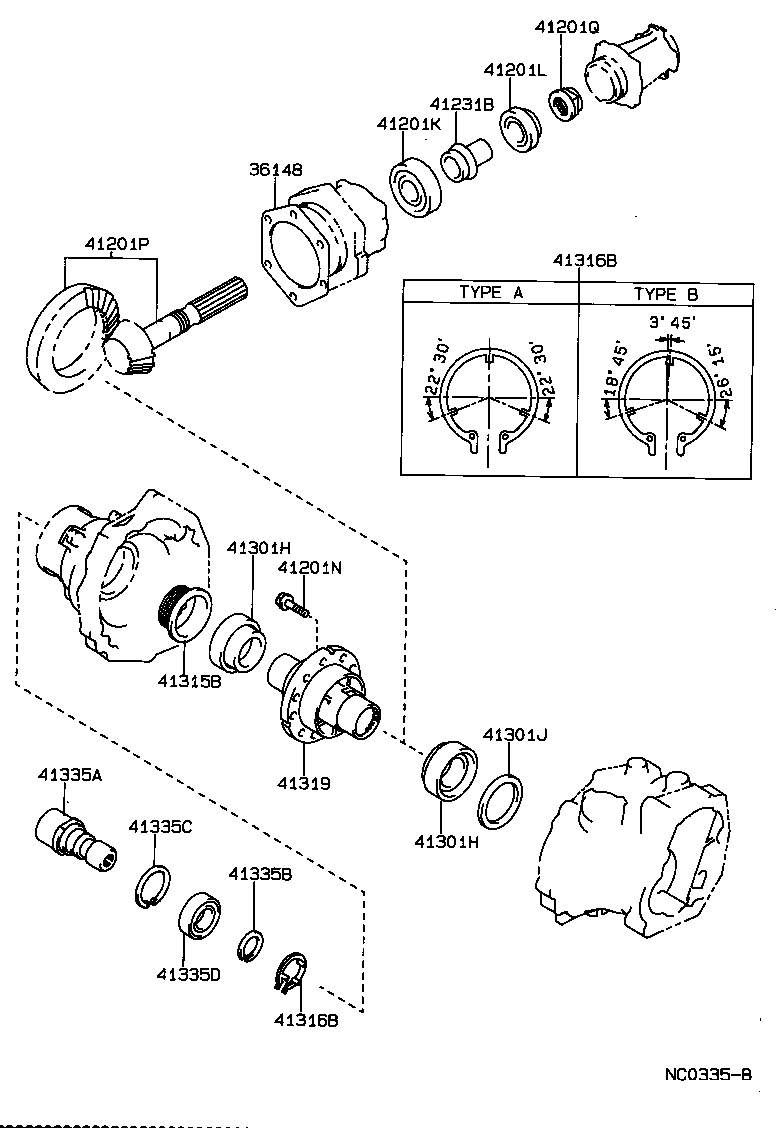

Click highlighted areas on diagram

E55F5,E57F5

diagram 36148 41201K 41201L 41201N 41201P 41201Q 41231B 41301H 41301H 41301J 41315B 41316B 41316B 41319 41335A 41335B 41335C 41335D
Part # Description Qty Price
36148 - SHIM, PINION BEARING CAGE
36148-20010

AE95..5F

T=0.30,MARK A

 1
36148-20070

AE95..5F

T=0.48,MARK G

 1
36148-20090

AE95..5F

T=0.54,MARK J

 1
36148-20060

AE95..5F

T=0.45,MARK F

 1
36148-20080

AE95..5F

T=0.51,MARK H

 1
36148-32010

AE95..5F

T=0.30,MARK A

 1
36148-20050

AE95..5F

T=0.42,MARK E

 1
36148-20100

AE95..5F

T=0.57,MARK K

 1
36148-32020

AE95..5F

T=0.33,MARK B

 1
36148-20040

AE95..5F

T=0.39,MARK D

 1
36148-32040

AE95..5F

T=0.39,MARK D

 1
36148-20020

AE95..5F

T=0.33,MARK B

 1
36148-32030

AE95..5F

T=0.36,MARK C

 1
36148-32070

AE95..5F

T=0.48,MARK G

 1
36148-20030

AE95..5F

T=0.36,MARK C

 1
36148-32090

AE95..5F

T=0.54,MARK J

 1
36148-32080

AE95..5F

T=0.51,MARK H

 1
36148-32050

AE95..5F

T=0.42,MARK E

 1
36148-32060

AE95..5F

T=0.45,MARK F

 1
36148-32100

AE95..5F

T=0.57,MARK K

 1
41201K - BEARING (FOR TRANSFER DRIVEN PINION FRONT)
90366-40044

AE95..5F

 1
90366-40055

AE95..5F

 1
41201L - BEARING (FOR TRANSFER DRIVEN PINION REAR)
90366-32019

AE95

 1
41201N - BOLT (FOR TRANSFER GEAR )
90105-11026

AE95..5F

 12
41201P - GEAR KIT, TRANSFER
41201-12160

AE95

 1
41201Q - NUT (FOR TRANSFER GEAR)
90179-30004

AE95

 1
41231B - SPACER, TRANSFER PINION BEARING
41231-12040

AE95..5F

 1
41301H - BEARING(FOR RING GEAR MOUNTING CASE)
90366-55017

AE95..5F

LH

 1
90366-54008

AE95..5F

RH

 1
41301H - BEARING(FOR RING GEAR MOUNTING CASE)
90366-55017

AE95..5F

LH

 1
90366-54008

AE95..5F

RH

 1
41301J - WASHER, PLATE(FOR RING GEAR MOUNTING CASE)
90201-68025

AE95..5F

T=2.13,MARK 01

 1
90201-68027

AE95..5F

T=2.19,MARK 03

 1
90201-68028

AE95..5F

T=2.22,MARK 04

 1
90201-68035

AE95..5F

T=2.43,MARK 11

 1
90201-68031

AE95..5F

T=2.31,MARK 07

 1
90201-68029

AE95..5F

T=2.25,MARK 05

 1
90201-68037

AE95..5F

T=2.49,MARK 13

 1
90201-68032

AE95..5F

T=2.34,MARK 08

 1
90201-68033

AE95..5F

T=2.37,MARK 09

 1
90201-68041

AE95..5F

T=2.61,MARK 17

 1
90201-68042

AE95..5F

T=2.64,MARK 18

 1
90201-68030

AE95..5F

T=2.28,MARK 06

 1
90201-68047

AE95..5F

T=2.79,MARK 23

 1
90201-68040

AE95..5F

T=2.58,MARK 16

 1
90201-68043

AE95..5F

T=2.67,MARK 19

 1
90201-68038

AE95..5F

T=2.52,MARK 14

 1
90201-68044

AE95..5F

T=2.70,MARK 20

 1
90201-68026

AE95..5F

T=2.16,MARK 02

 1
90201-68046

AE95..5F

T=2.76,MARK 22

 1
90201-68036

AE95..5F

T=2.46,MARK 12

 1
90201-68034

AE95..5F

T=2.40,MARK 10

 1
90201-68039

AE95..5F

T=2.55,MARK 15

 1
90201-68048

AE95..5F

T=2.82,MARK 24

 1
90201-68045

AE95..5F

T=2.73,MARK 21

 1
41315B - NUT, BEARING ADJUSTING
41315-12030

AE95..5F

 1
41316B - PLATE, ADJUSTING NUT LOCK
41316-20030

AE95..5F

TYPE A

 1
41316-20040

AE95..5F

TYPE B

 1
41316B - PLATE, ADJUSTING NUT LOCK
41316-20030

AE95..5F

TYPE A

 1
41316-20040

AE95..5F

TYPE B

 1
41319 - CASE, TRANSFER RING GEAR MOUNTING
41319-12010

AE95..5F

 1
41335A - HOLDER, DIFFERENTIAL SIDE GEAR SHAFT
41335-12010

AE95..5F

 1
41335-12011

AE95..5F

 1
41335B - RING, SHAFT SNAP (FOR SIDE GEAR SHAFT HOLDER)
90520-40001

AE95

 1
41335C - RING, HOLE SNAP (FOR SIDE GEAR SHAFT HOLDER)
90521-75004

AE95..5F

 1
41335D - BEARING (FOR SIDE GEAR SHAFT HOLDER)
90365-44003

AE95..5F

 1
90365-44005

AE95..5F

 1
90365-44006

AE95

 1
