AE95L-CWMDKA (1988)

Toyota Corolla Jpp

Production Feb 1988 - Sep 1990
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8802- )AE95..5F

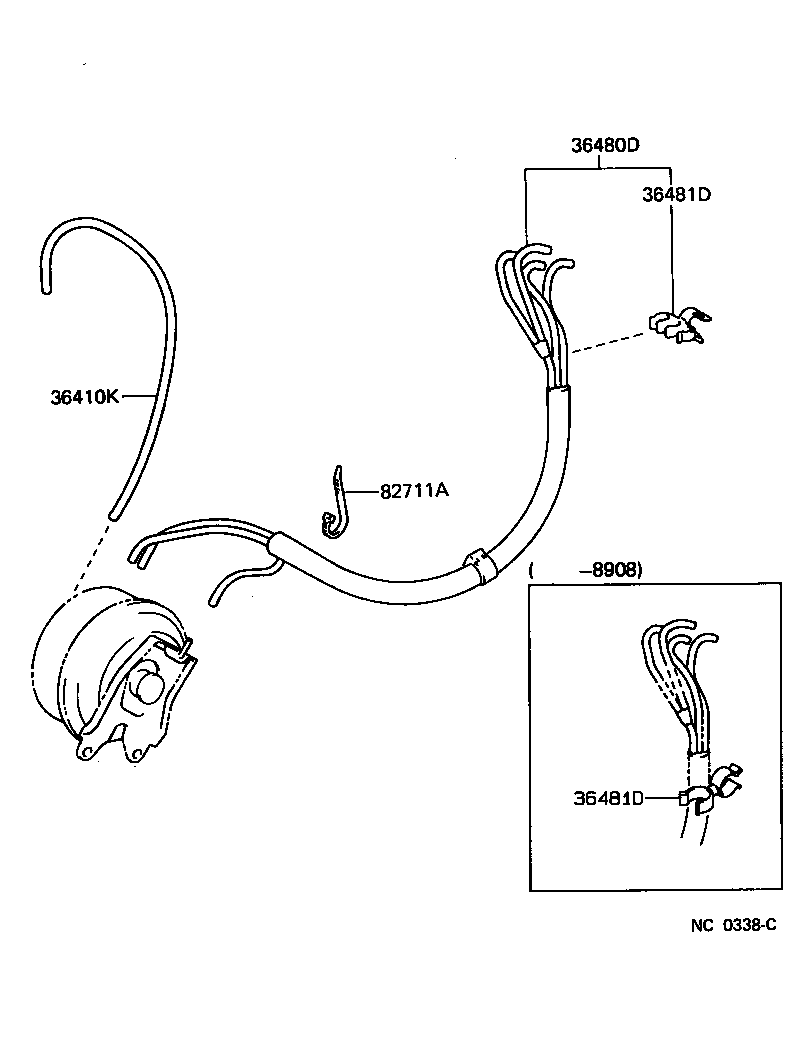

Click highlighted areas on diagram

E55F5,E57F5

diagram 36410K 36480D 36481D 36481D 82711A
Part # Description Qty Price
36410K - HOSE, VACUUM (FOR TRANSFER VACUUM)
90999-92002

AE95..5F

 1
90999-92003

AE95..5F

 1
36480D - TUBE ASSY, TRANSFER VACUUM
36480-12060

AE95..5F

 1
36480-12010

AE95..5F

 1
36480-12011

AE95..5F

 1
36481D - CLAMP, NO.1 (FOR TRANSFER VACUUM)
90464-00563

AE95..5F

 1
90464-00497

AE95..5F

 1
36481D - CLAMP, NO.1 (FOR TRANSFER VACUUM)
90464-00563

AE95..5F

 1
90464-00497

AE95..5F

 1
82711A - CLAMP(FOR TRANSFER VACUUM TUBE)
82711-22270

AE95..5F

 1
