Toyota Corolla jpp AE95 ARMREST & VISOR

AE95L-AEPDKA (1988)

Toyota Corolla Jpp

Production Aug 1988 - Aug 1990

Engine 4AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

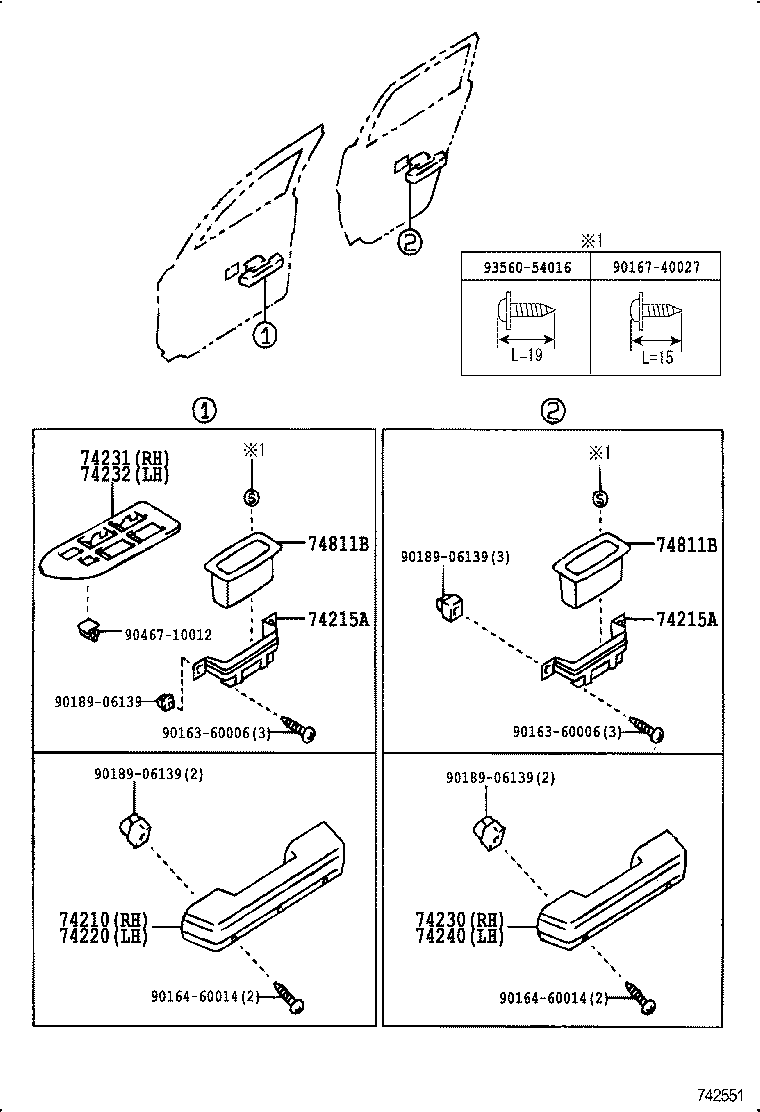

Click highlighted areas on diagram

ARMREST

Part #	Description	Period	Qty
74210 - ARMREST ASSY, FRONT, RH
74210-1211024	AE9#..DX,STD DARK BLUE,TRIM8#	08/1987 - 09/1989	1
74210-1211036	AE9#..DX,STD BROWN,TRIM4#	08/1989 - 09/1989	1
74210-1211003	AE9#..DX,STD GRAY,TRIM1#	08/1987 - 09/1990	1
74210-1211005	AE9#..DX DARK BEIGE,TRIM4#	08/1987 - 08/1989	1
74210-1211002	AE9#..SED..(DX,STD) MAROON,TRIM3#	08/1987 - 09/1989	1
74220 - ARMREST ASSY, FRONT, LH
74210-1211036	AE9#..DX,STD BROWN,TRIM4#	08/1989 - 09/1989	1
74210-1211003	AE9#..DX,STD GRAY,TRIM1#	08/1987 - 09/1990	1
74210-1211002	AE9#..SED..(DX,STD) MAROON,TRIM3#	08/1987 - 09/1989	1
74210-1211005	AE9#..DX DARK BEIGE,TRIM4#	08/1987 - 08/1989	1
74210-1211024	AE9#..DX,STD DARK BLUE,TRIM8#	08/1987 - 09/1989	1
74230 - ARMREST ASSY, REAR, RH
74210-1211003	AE9#..DX,STD GRAY,TRIM1#	08/1987 - 09/1990	1
74210-1211024	AE9#..DX,STD DARK BLUE,TRIM8#	08/1987 - 09/1989	1
74210-1211005	AE9#..DX DARK BEIGE,TRIM4#	08/1987 - 08/1989	1
74210-1211036	AE9#..DX,STD BROWN,TRIM4#	08/1989 - 09/1989	1
74210-1211002	AE9#..SED..(DX,STD) MAROON,TRIM3#	08/1987 - 09/1989	1
74240 - ARMREST ASSY, REAR, LH
74210-1211002	AE9#..SED..(DX,STD) MAROON,TRIM3#	08/1987 - 09/1989	1
74210-1211005	AE9#..DX DARK BEIGE,TRIM4#	08/1987 - 08/1989	1
74210-1211024	AE9#..DX,STD DARK BLUE,TRIM8#	08/1987 - 09/1989	1
74210-1211036	AE9#..DX,STD BROWN,TRIM4#	08/1989 - 09/1989	1
74210-1211003	AE9#..DX,STD GRAY,TRIM1#	08/1987 - 09/1990	1
Common parts
90163-60006
90164-60014
90167-40027
90189-06139
93560-54016

Click highlighted areas on diagram

ARMREST

Part #	Description	Period	Qty
74210 - ARMREST ASSY, FRONT, RH
74210-1211024	AE9#..DX,STD DARK BLUE,TRIM8#	08/1987 - 09/1989	1
74210-1211036	AE9#..DX,STD BROWN,TRIM4#	08/1989 - 09/1989	1
74210-1211003	AE9#..DX,STD GRAY,TRIM1#	08/1987 - 09/1990	1
74210-1211005	AE9#..DX DARK BEIGE,TRIM4#	08/1987 - 08/1989	1
74210-1211002	AE9#..SED..(DX,STD) MAROON,TRIM3#	08/1987 - 09/1989	1
74220 - ARMREST ASSY, FRONT, LH
74210-1211036	AE9#..DX,STD BROWN,TRIM4#	08/1989 - 09/1989	1
74210-1211003	AE9#..DX,STD GRAY,TRIM1#	08/1987 - 09/1990	1
74210-1211002	AE9#..SED..(DX,STD) MAROON,TRIM3#	08/1987 - 09/1989	1
74210-1211005	AE9#..DX DARK BEIGE,TRIM4#	08/1987 - 08/1989	1
74210-1211024	AE9#..DX,STD DARK BLUE,TRIM8#	08/1987 - 09/1989	1
74230 - ARMREST ASSY, REAR, RH
74210-1211003	AE9#..DX,STD GRAY,TRIM1#	08/1987 - 09/1990	1
74210-1211024	AE9#..DX,STD DARK BLUE,TRIM8#	08/1987 - 09/1989	1
74210-1211005	AE9#..DX DARK BEIGE,TRIM4#	08/1987 - 08/1989	1
74210-1211036	AE9#..DX,STD BROWN,TRIM4#	08/1989 - 09/1989	1
74210-1211002	AE9#..SED..(DX,STD) MAROON,TRIM3#	08/1987 - 09/1989	1
74240 - ARMREST ASSY, REAR, LH
74210-1211002	AE9#..SED..(DX,STD) MAROON,TRIM3#	08/1987 - 09/1989	1
74210-1211005	AE9#..DX DARK BEIGE,TRIM4#	08/1987 - 08/1989	1
74210-1211024	AE9#..DX,STD DARK BLUE,TRIM8#	08/1987 - 09/1989	1
74210-1211036	AE9#..DX,STD BROWN,TRIM4#	08/1989 - 09/1989	1
74210-1211003	AE9#..DX,STD GRAY,TRIM1#	08/1987 - 09/1990	1
Common parts
90163-60006
90164-60014
90167-40027
90189-06139
90467-10012
93560-54016
