AE95L-AEMDKA (1988)
Toyota Corolla Jpp
Production
Aug 1988
-
Aug 1990
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )AE95..SED

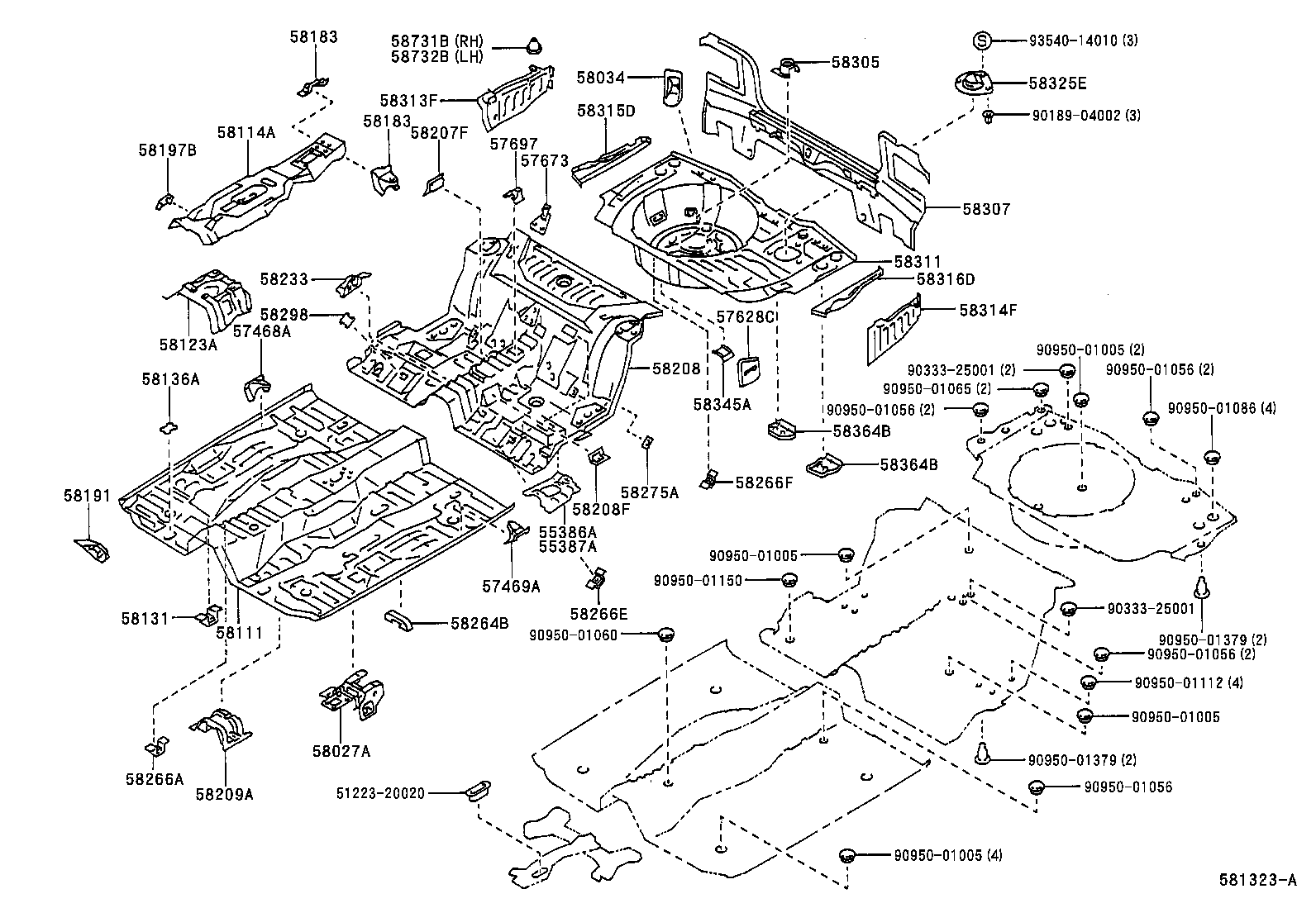

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-12060 |
AE95..SED |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-12020 |
AE92..CBR;AE9#..(DX,SR5,STD)..EFI |
1 | ||
| 58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET | ||||
| 58197-12010 |
AE9# |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-22040 |
AE9# |
3 | ||
| 58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR | ||||
| 58275-12010 |
AE95..SED |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-1A181 |
AE95..SED |
1 | ||
| 58307-1A180 |
AE95..SED |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-12200 |
AE95..SED |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-12240 |
AE95..SED |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-12240 |
AE95..SED |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-12060 |
AE95..SED |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-12060 |
AE95..SED |
1 | ||
| 58364B - BRACKET, FUEL TANK SUPPORT | ||||
| 58062-12050 |
AE95..SED REAR |
1 | ||
| 58061-12030 |
AE95..SED RH |
1 | ||
| 58364B - BRACKET, FUEL TANK SUPPORT | ||||
| 58062-12050 |
AE95..SED REAR |
1 | ||
| 58061-12030 |
AE95..SED RH |
1 | ||
| 58731B - CAP, REAR ABSORBER, RH | ||||
| 58731-2202023 |
AE95..SED GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 58732B - CAP, REAR ABSORBER, LH | ||||
| 58731-2202023 |
AE95..SED GRAY,TRIM1#,3#,4#,8# |
1 | ||
| Common parts | ||||
| 51223-20020 | ||||
| 90189-04002 | ||||
| 90333-25001 | ||||
| 90950-01005 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01065 | ||||
| 90950-01086 | ||||
| 90950-01112 | ||||
| 90950-01150 | ||||
| 90950-01379 | ||||
| 93540-14010 | ||||
