AE92L-AWMDUK (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

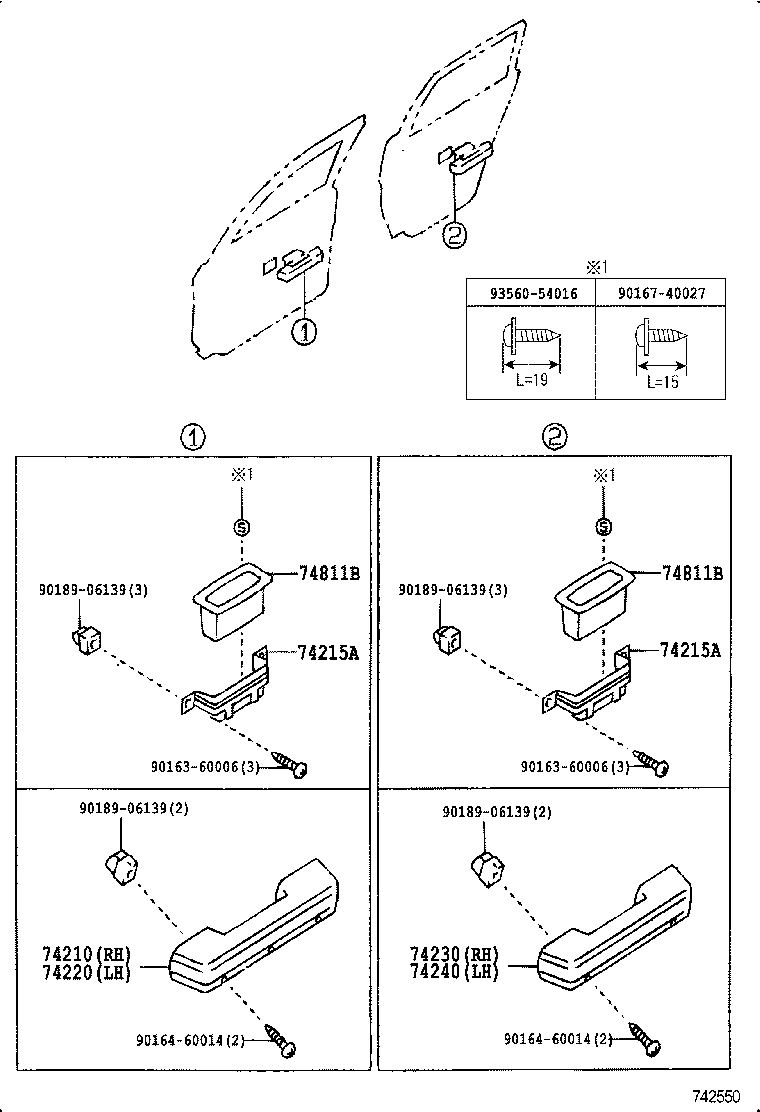

ILLUST NO. 1 OF 2(8708-8908)

Click highlighted areas on diagram

ARMREST

diagram 74210 74215A 74215A 74220 74230 74240 74811B 74811B 9016360006 9016360006 9016460014 9016460014 9016740027 9018906139 9018906139 9018906139 9018906139 9356054016
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-1211024

AE9#..DX,STD

DARK BLUE,TRIM8#

 1
74210-1211003

AE9#..DX,STD

GRAY,TRIM1#

 1
74210-1211005

AE9#..DX

DARK BEIGE,TRIM4#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-1211003

AE9#..DX,STD

GRAY,TRIM1#

 1
74210-1211005

AE9#..DX

DARK BEIGE,TRIM4#

 1
74210-1211024

AE9#..DX,STD

DARK BLUE,TRIM8#

 1
74230 - ARMREST ASSY, REAR, RH
74210-1211003

AE9#..DX,STD

GRAY,TRIM1#

 1
74210-1211024

AE9#..DX,STD

DARK BLUE,TRIM8#

 1
74210-1211005

AE9#..DX

DARK BEIGE,TRIM4#

 1
74240 - ARMREST ASSY, REAR, LH
74210-1211005

AE9#..DX

DARK BEIGE,TRIM4#

 1
74210-1211024

AE9#..DX,STD

DARK BLUE,TRIM8#

 1
74210-1211003

AE9#..DX,STD

GRAY,TRIM1#

 1
Common parts
90163-60006
90164-60014
90167-40027
90189-06139
93560-54016
