AE92L-AWMDKK (1989)

Toyota Corolla Jpp

Production Aug 1989 - Jun 1992
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )AE92

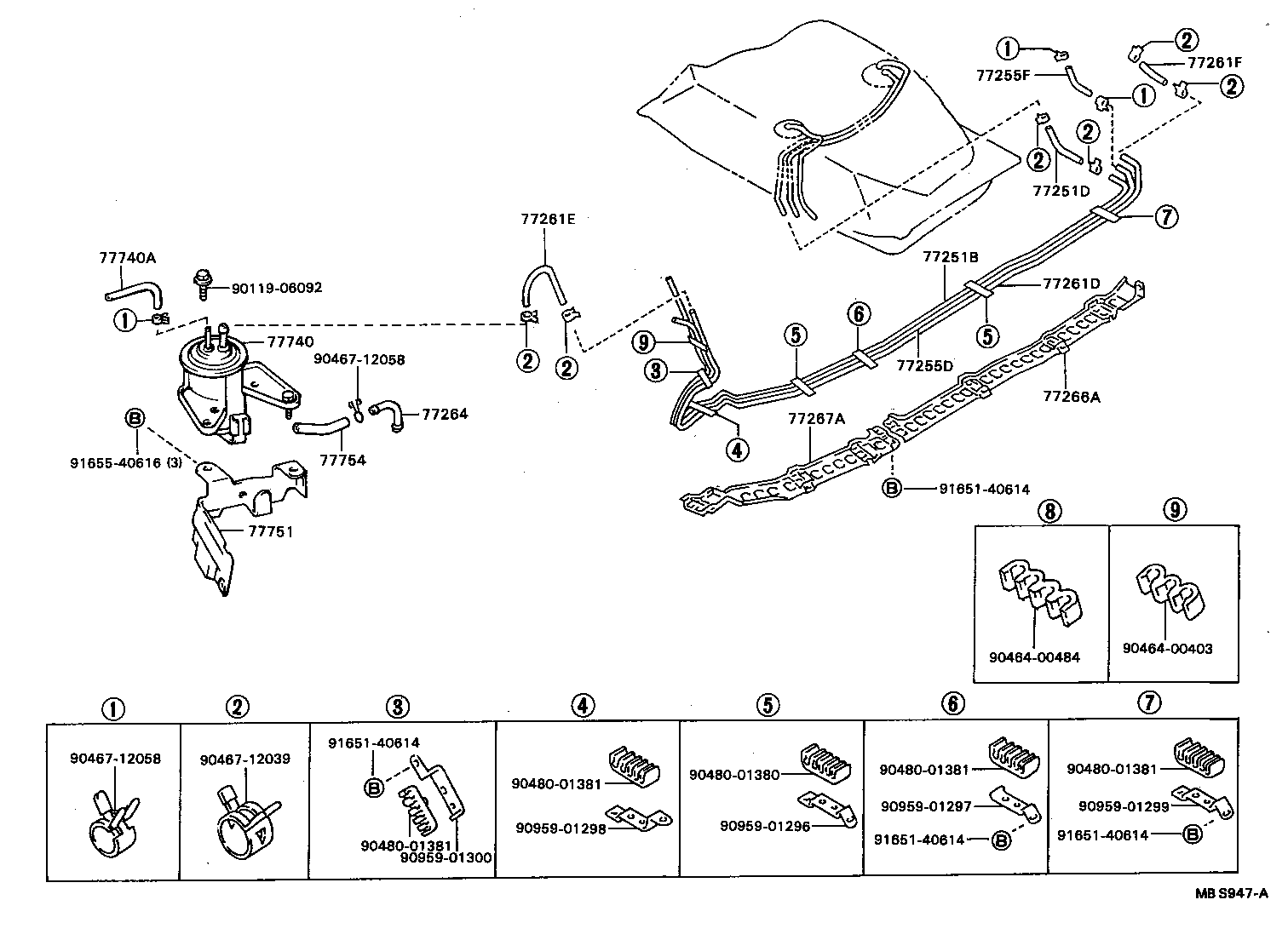

Click highlighted areas on diagram

diagram 77251B 77251D 77255D 77255F 77261D 77261E 77261F 77264 77266A 77267A 77740 77740A 77751 77754 9011906092 9046400403 9046400484 9046712039 9046712058 9046712058 9048001380 9048001381 9048001381 9048001381 9048001381 9095901296 9095901297 9095901298 9095901299 9095901300 9165140614 9165140614 9165140614 9165140614 9165540616
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-12510

AE92

 1
77251-12380

AE92

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06020

AE92

*H,L=200

 1
77255D - TUBE, FUEL RETURN
77255-12350

AE92

 1
77255-12360

AE92

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-04015

AE92

*H,L=150

 1
95333-06020

AE92

*H,L=200

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12260

AE92

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-12130

AE92

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

AE92

*H,L=200

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12030

AE92

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12060

AE9#

 1
77740 - CANISTER ASSY, CHARCOAL
77740-12480

AE92

 1
77740-12520

AE92

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92002

AE92

*H,L=300

 1
90447-04108

AE92

 1
90447-04125

AE9#

L=490

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77750-12040

AE92

 1
77753-12010

AE92

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12110

AE92

 1
77754-12090

AE92

 1
Common parts
90119-06092
90464-00403
90464-00484
90467-12039
90467-12058
90480-01380
90480-01381
90959-01296
90959-01297
90959-01298
90959-01299
90959-01300
91651-40614
91655-40616

(8908- )

Click highlighted areas on diagram

diagram 6105 61726A 6709 77011 77012A 77035 77037 77100 77100A 77100B 77169A 77178 77179A 77201 77201A 77213B 77216A 77218A 77276 77277R 77290 77293A 77306 77306A 77310A 77316 77350 77366 77377 77380 77391 8401 9010910108 9011906351 9011906398 9015940155 9015950217 9015950258 9017905020 9017910074 9018906013 9046022002 9046055003 9048001385 9165140612 9338150219
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-12040

AE92

 1
77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77012-12030

AE92

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-12260

AE95;AE92..WG..EFI;AE92..SED..(DX,LE)

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-12050

AE9#..DX,LE,SR5

 1
77100 - TANK ASSY, FUEL
77001-19545

AE92

 1
77001-19605

AE92

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-12010

AE92

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-16010

AE9#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-12340

AE92

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-22011

AE92

L=220

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-12140

AE92

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-12040

AE92

 1
77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3
77218-12010

AE92

 1
77276 - PROTECTOR, FUEL HOSE
77276-12040

AE92

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12060

AE92;AE95..SED

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-12030

AE92;AE95..SED

 1
77310A - CAP ASSY, FUEL TANK
77310-12140

AE92

 1
77310-16010

AE92

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

AE92

 1
77316-16010

AE9#

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-14020

AE9#

 1
77391 - RING, FUEL INLET BOX
77391-14020

AE9#

 1
Common parts
90109-10108
90119-06351
90119-06398
90159-40155
90159-50217
90159-50258
90179-05020
90179-10074
90189-06013
90460-22002
90460-55003
90480-01385
91651-40612
93381-50219
Linked diagrams
6105
6709
8401
