AE92L-AWHDUK (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(8708-9206)

Click highlighted areas on diagram

diagram 82345 8234512050 8234520050 8234522051 8234532020
Part # Description Qty Price
82345 - DIODE
82345-20050

AE92..ATM

NO.6

 1
82345-32020

AE9#

NO.8

 1
82345-12050

AE92..CBR;AE92..LE..USA..EFI;AE92..(DX,STD)..EFI

NO.4

 1
Common parts
82345-12050
82345-20050
82345-22051
82345-32020

ILLUST NO. 5 OF 5(8708-9206)

Click highlighted areas on diagram

diagram 8271112200 8271112300 8271112770 8271114350 8271116450 8271116460 827111A040 827111A150 827111A300 827111A330 827111A400 827111A410 827111A420 827111A430 827111A440 827111A450 827111A500 827111A510 827111A540 827111A630 8271122300 8271124070 8271124210 8271130130 8271195718
Part # Description Qty Price
Common parts
82711-12200
82711-12300
82711-12770
82711-14350
82711-16450
82711-16460
82711-1A040
82711-1A150
82711-1A300
82711-1A330
82711-1A400
82711-1A410
82711-1A420
82711-1A430
82711-1A440
82711-1A450
82711-1A500
82711-1A510
82711-1A540
82711-1A630
82711-22300
82711-24070
82711-24210
82711-30130
82711-95718

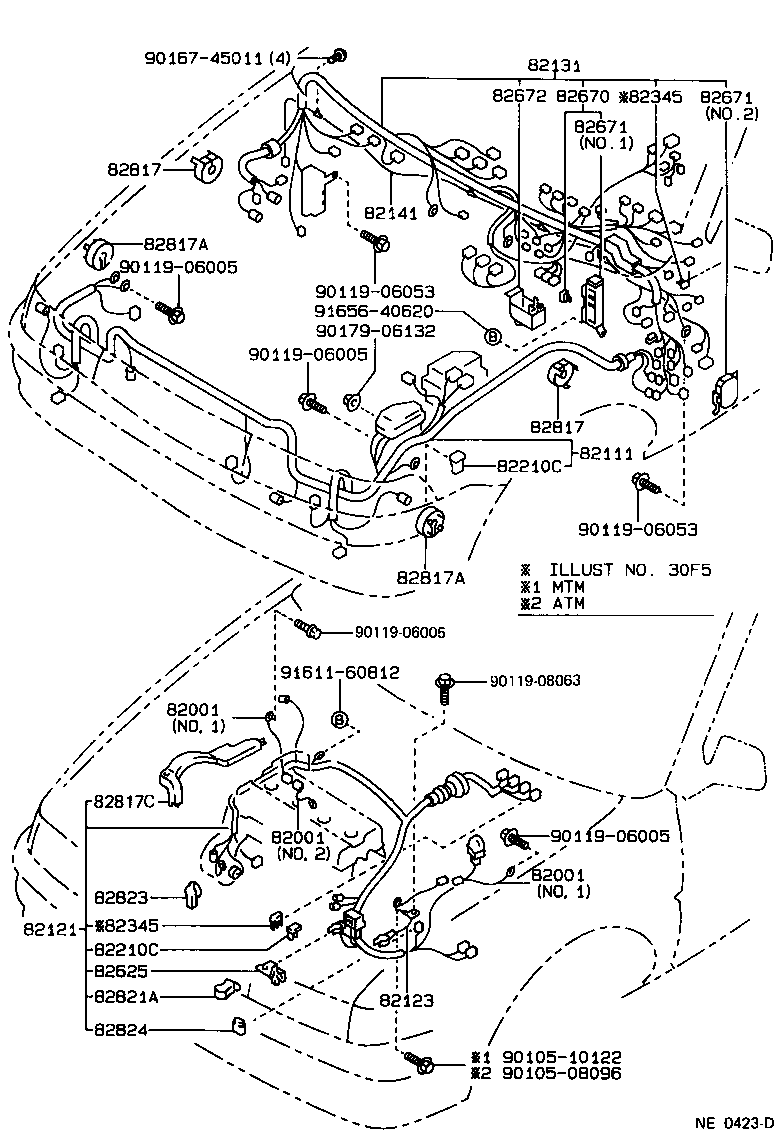

ILLUST NO. 1 OF 5(8708-8908)AE92

Click highlighted areas on diagram

diagram 82001 82001 82001 82111 82121 82123 82131 82141 82210C 82210C 82345 82345 82625 82670 82671 82671 82672 82817 82817 82817A 82817A 82817C 82821A 82823 82824 9010508096 9010510122 9011906005 9011906005 9011906005 9011906005 9011906053 9011906053 9011908063 9016745011 9017906132 9161160812 9165640620
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07206

AE95;AE92..CBR;AE92..WG..EFI;AE92..LE..CND..EFI;AE92..SED..USA..EFI

NO.1

 2
90980-07236

AE92

NO.2

 1
82001 - CABLE, BOND, NO.1
90980-07206

AE95;AE92..CBR;AE92..WG..EFI;AE92..LE..CND..EFI;AE92..SED..USA..EFI

NO.1

 2
90980-07236

AE92

NO.2

 1
82001 - CABLE, BOND, NO.1
90980-07206

AE95;AE92..CBR;AE92..WG..EFI;AE92..LE..CND..EFI;AE92..SED..USA..EFI

NO.1

 2
90980-07236

AE92

NO.2

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-1A230

AE92

 1
82111-1A240

AE92..WG

W(CRUISE CONTROL) OR W(*RW)

 1
82121 - WIRE, ENGINE
82121-1A250

AE92..ATM

 1
82121-1A251

AE92..ATM

 1
82123 - WIRE, ENGINE, NO.3
82123-12150

AE92..3FC

 1
82131 - WIRE, COWL
82131-1A730

AE92..DX

 1
82131-13180

AE92..WG..CND

W(REAR WINDOW WIPER)

 1
82131-13190

AE92..WG..CND

W(CRUISE CONTROL)

 1
82131-1A731

AE92..DX

 1
82131-13192

AE92..WG..CND

W(CRUISE CONTROL)

 1
82131-1A732

AE92..DX

 1
82131-13182

AE92..WG..CND

W(REAR WINDOW WIPER)

 1
82131-13183

AE92..WG..CND

W(REAR WINDOW WIPER)

 1
82131-1A733

AE92..DX

 1
82131-13193

AE92..WG..CND

W(CRUISE CONTROL)

 1
82210C - FUSIBLE LINK
90982-08188

AE9#

30A,TERM.:FEMALE,PNK

 1
90982-08203

AE9#

80A,TERM.:MALE,BLK

 1
82210C - FUSIBLE LINK
90982-08188

AE9#

30A,TERM.:FEMALE,PNK

 1
90982-08203

AE9#

80A,TERM.:MALE,BLK

 1
82345 - DIODE
82345-20050

AE92..ATM

NO.6

 1
82345-32020

AE9#

NO.8

 1
82345-12050

AE92..CBR;AE92..LE..USA..EFI;AE92..(DX,STD)..EFI

NO.4

 1
82345 - DIODE
82345-20050

AE92..ATM

NO.6

 1
82345-32020

AE9#

NO.8

 1
82345-12050

AE92..CBR;AE92..LE..USA..EFI;AE92..(DX,STD)..EFI

NO.4

 1
82625 - TERMINAL, FUSIBLE LINK
82625-12020

AE92

 1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-12090

AE9#

 1
82671 - BLOCK, JUNCTION
82671-12070

AE9#

NO.2

 1
82671-12030

AE9#

NO.1

 1
82671 - BLOCK, JUNCTION
82671-12070

AE9#

NO.2

 1
82671-12030

AE9#

NO.1

 1
82672 - COVER, JUNKTION BLOCK
82672-12110

AE9#

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14350

AE9#

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14350

AE9#

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32010

AE9#

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32010

AE9#

 2
82821A - COVER, CONNECTOR
82821-12180

AE92

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

AE9#

 1
82824 - CONNECTOR, WIRING HARNESS
82824-32030

AE9#

 1
Common parts
90105-08096
90105-10122
90119-06005
90119-06053
90119-08063
90167-45011
90179-06132
91611-60812
91656-40620

ILLUST NO. 4 OF 5(8708-9206)

Click highlighted areas on diagram

diagram 82981 8298122020 82982 8298212060 82983 82983 8298310020 8298312080 82984 8298420010 82991 82991 8299112030 8299112040
Part # Description Qty Price
Common parts
82981-22020
82982-12060
82983-10020
82983-12080
82984-20010
82991-12030
82991-12040

ILLUST NO. 5 OF 5(8708-9206)

Click highlighted areas on diagram

diagram 8271116470 827111A620 8271122270 8271512010 8271512020 8271512030 8271589113
Part # Description Qty Price
Common parts
82711-16470
82711-1A620
82711-22270
82715-12010
82715-12020
82715-12030
82715-89113
