AE92L-AWHDUK (1987)
Toyota Corolla Jpp

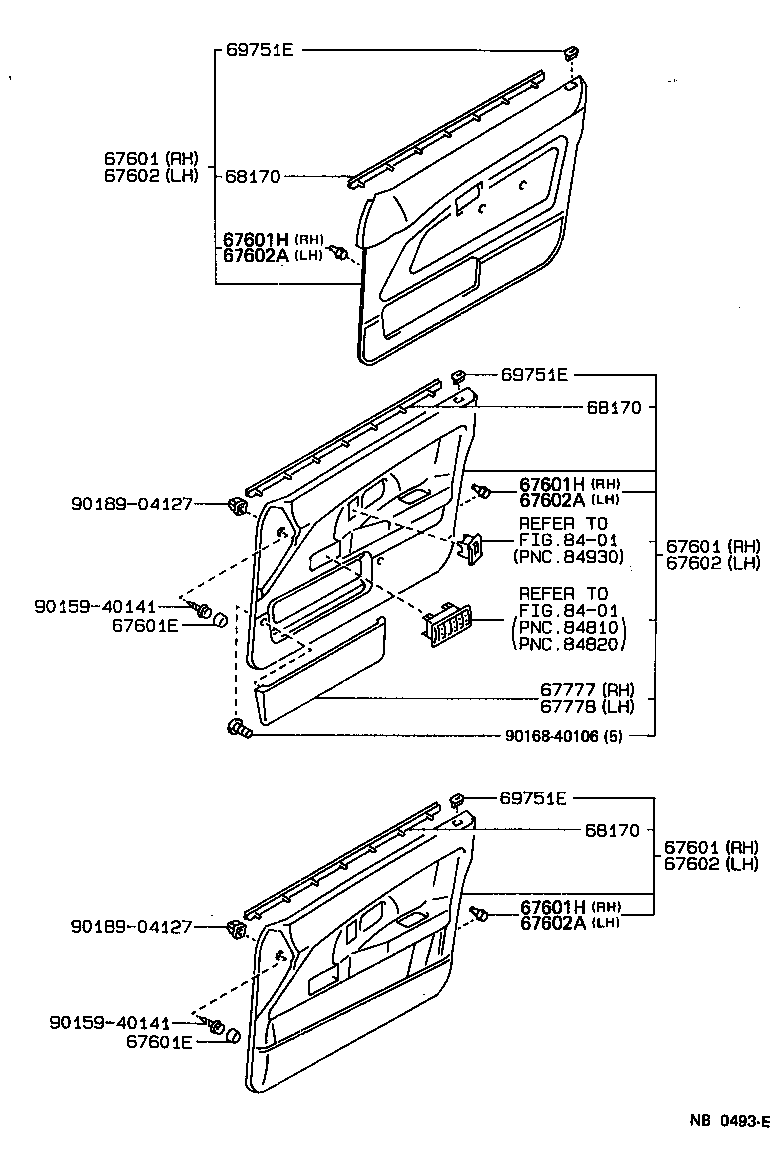

ILLUST NO. 2 OF 2(8708-8908)SED ; (8708-8908)SED ; (8710-8908)AE92..WG ; (8710-8908)AE92..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1E05005 |
AE92..DX..CND DARK BEIGE,TRIM4# |
1 | ||
| 67610-1E05003 |
AE92..DX..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1E05004 |
AE92..DX..CND BLUE,TRIM8# |
1 | ||
| 67610-1E05103 |
AE92..DX..CND;AE95..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1E05104 |
AE92..DX..CND;AE95..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-1E05105 |
AE92..DX..CND;AE95..SED..CND DARK BEIGE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1E05005 |
AE92..DX..CND DARK BEIGE,TRIM4# |
1 | ||
| 67610-1E05003 |
AE92..DX..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1E05004 |
AE92..DX..CND BLUE,TRIM8# |
1 | ||
| 67610-1E05103 |
AE92..DX..CND;AE95..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1E05104 |
AE92..DX..CND;AE95..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-1E05105 |
AE92..DX..CND;AE95..SED..CND DARK BEIGE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1E05005 |
AE92..DX..CND DARK BEIGE,TRIM4# |
1 | ||
| 67610-1E05003 |
AE92..DX..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1E05004 |
AE92..DX..CND BLUE,TRIM8# |
1 | ||
| 67610-1E05103 |
AE92..DX..CND;AE95..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1E05104 |
AE92..DX..CND;AE95..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-1E05105 |
AE92..DX..CND;AE95..SED..CND DARK BEIGE,TRIM4# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#..DX |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#..DX |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#..DX |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1H21005 |
AE92..DX..CND DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H21004 |
AE92..DX..CND BLUE,TRIM8# |
1 | ||
| 67620-1H21003 |
AE92..DX..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1H21105 |
AE92..DX..CND;AE95..SED..CND DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H21104 |
AE92..DX..CND;AE95..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-1H21103 |
AE92..DX..CND;AE95..SED..CND SHAODW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1H21005 |
AE92..DX..CND DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H21004 |
AE92..DX..CND BLUE,TRIM8# |
1 | ||
| 67620-1H21003 |
AE92..DX..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1H21105 |
AE92..DX..CND;AE95..SED..CND DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H21104 |
AE92..DX..CND;AE95..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-1H21103 |
AE92..DX..CND;AE95..SED..CND SHAODW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1H21005 |
AE92..DX..CND DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H21004 |
AE92..DX..CND BLUE,TRIM8# |
1 | ||
| 67620-1H21003 |
AE92..DX..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1H21105 |
AE92..DX..CND;AE95..SED..CND DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H21104 |
AE92..DX..CND;AE95..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-1H21103 |
AE92..DX..CND;AE95..SED..CND SHAODW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#..DX |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#..DX |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#..DX |
10 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1207003 |
AE9#..DX SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1207005 |
AE9#..DX DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207004 |
AE9#..WG..DX;AE9#..SED..DX..CND DARK BLUE,TRIM8# |
1 | ||
| 67777-1207004 |
AE9#..DX DARK BLUE,TRIM8# |
1 | ||
| 67777-1207004 |
AE9#..DX DARK BLUE,TRIM8# |
1 | ||
| 67777-1207003 |
AE95..SED;AE92..DX..CND;AE92..SED..DX..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1207005 |
AE9#..WG..DX;AE9#..SED..DX..CND DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207003 |
AE92..DX..CND;AE95..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1207005 |
AE9#..DX DARK BEIGE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-1207005 |
AE9#..DX DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207003 |
AE9#..DX SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1207004 |
AE9#..DX DARK BLUE,TRIM8# |
1 | ||
| 67777-1207003 |
AE92..DX..CND;AE95..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1207005 |
AE9#..WG..DX;AE9#..SED..DX..CND DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207004 |
AE9#..WG..DX;AE9#..SED..DX..CND DARK BLUE,TRIM8# |
1 | ||
| 67777-1207004 |
AE9#..DX DARK BLUE,TRIM8# |
1 | ||
| 67777-1207005 |
AE9#..DX DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207003 |
AE95..SED;AE92..DX..CND;AE92..SED..DX..USA SHADOW GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
AE9#..DX LH |
1 | ||
| 68171-12200 |
AE9#..DX RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
AE9#..DX LH |
1 | ||
| 68171-12200 |
AE9#..DX RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
AE9#..DX LH |
1 | ||
| 68171-12200 |
AE9#..DX RH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE9#..DX SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE9#..DX DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE9#..DX DARK BLUE,TRIM8# |
1 | ||
| 69751-1203005 |
AE9#..DX DARK BEIGE,TRIM4# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE9#..DX SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE9#..DX DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE9#..DX DARK BLUE,TRIM8# |
1 | ||
| 69751-1203005 |
AE9#..DX DARK BEIGE,TRIM4# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE9#..DX SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE9#..DX DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE9#..DX DARK BLUE,TRIM8# |
1 | ||
| 69751-1203005 |
AE9#..DX DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90168-40106 | ||||
| 90189-04127 | ||||
| Linked diagrams | ||||
| 8401 | ||||
