AE92L-AWHDUA (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8802- )

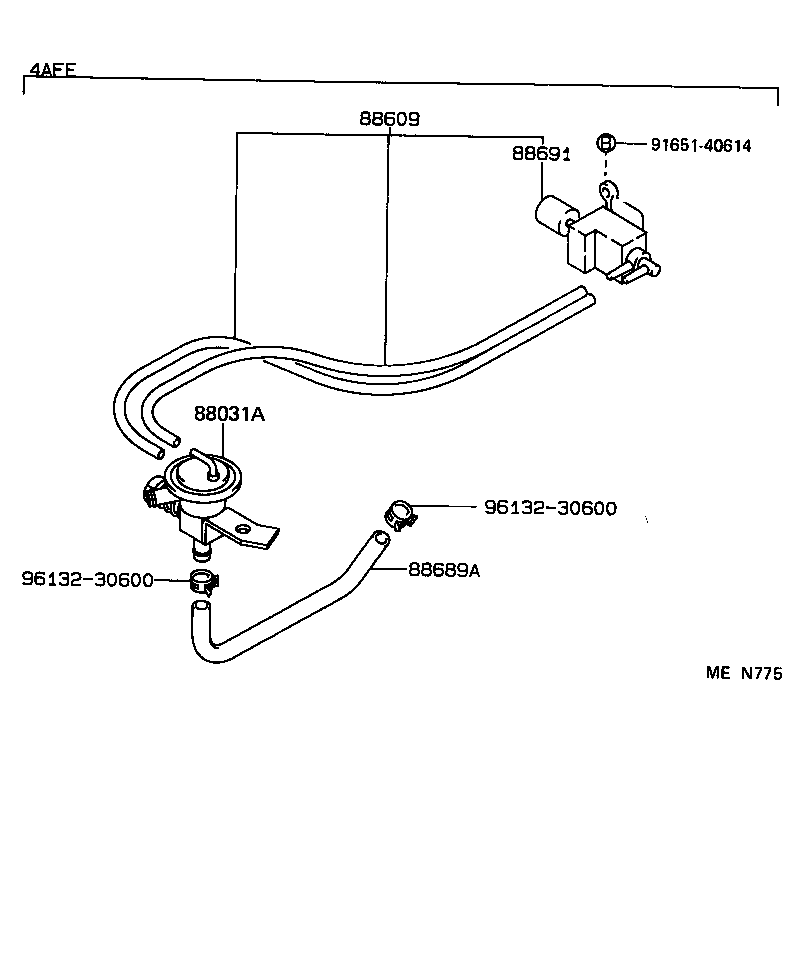

Click highlighted areas on diagram

diagram 88031A 88609 88689A 88691 9165140614 9613230600 9613230600
Part # Description Qty Price
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12740

AE92..ATM

 1
88690-12430

AE92;AE95..USA

 1
Common parts
91651-40614
96132-30600

(8708-8908)

Click highlighted areas on diagram

diagram 83391C 88031 88031 88691 88691 88691C 88691C 88691C 88691C 88691C 9009120609 9009120609 9046400082 9046400082 9046400140 9165140614 9165140614 9165160614 9165160614
Part # Description Qty Price
83391C - SWITCH, COOLER VACUUM
83391-20060

AE92..ATM

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12140

AE92

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12140

AE92

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12740

AE92..ATM

 1
88690-12430

AE92;AE95..USA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12740

AE92..ATM

 1
88690-12430

AE92;AE95..USA

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

AE92

*H,L=300,MARK=#*

 1
90999-92003

AE92..ATM

L=600

 1
95411-10030

AE92

L=300,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

AE92

*H,L=300,MARK=#*

 1
90999-92003

AE92..ATM

L=600

 1
95411-10030

AE92

L=300,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

AE92

*H,L=300,MARK=#*

 1
90999-92003

AE92..ATM

L=600

 1
95411-10030

AE92

L=300,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

AE92

*H,L=300,MARK=#*

 1
90999-92003

AE92..ATM

L=600

 1
95411-10030

AE92

L=300,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

AE92

*H,L=300,MARK=#*

 1
90999-92003

AE92..ATM

L=600

 1
95411-10030

AE92

L=300,MARK=#0

 1
Common parts
90091-20609
90464-00082
90464-00140
91651-40614
91651-60614
