AE92L-AWHDUA (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )WG

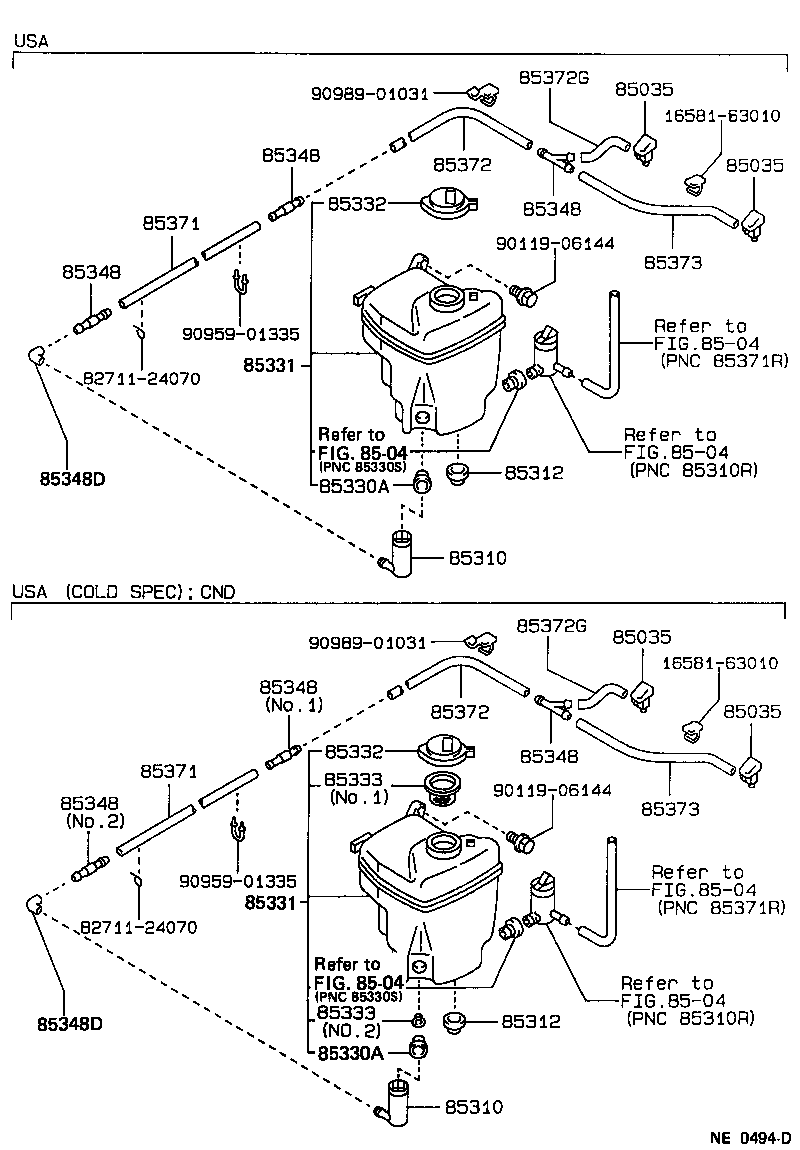

Click highlighted areas on diagram

W(RR WINDOW WIPER)

diagram 1658163010 1658163010 8271124070 8271124070 85035 85035 85035 85035 8504 8504 8504 8504 8504 8504 85310 85310 85312 85312 85330A 85330A 85331 85331 85332 85332 85333 85333 85348 85348 85348 85348 85348 85348 85348D 85348D 85371 85371 85372 85372 85372G 85372G 85373 85373 9011906144 9011906144 9095901335 9095901335 9098901031 9098901031
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85035-12290

AE9#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-12290

AE9#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-12290

AE9#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-12290

AE9#

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-14080

AE9#..USA

COLD SPEC

 1
85310-16050

AE9#..USA

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-14080

AE9#..USA

COLD SPEC

 1
85310-16050

AE9#..USA

 1
85312 - PACKING, WINDSHIELD WASHER TANK
85312-12650

AE9#

 1
85312 - PACKING, WINDSHIELD WASHER TANK
85312-12650

AE9#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE9#..WG..DX..USA

W(*RW)

 2
90099-32089

AE9#..(DX,LE)..USA

 1
90099-32103

AE9#..(DX,LE)..USA

COLD SPEC

 1
90099-32103

AE9#..WG..DX..USA

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE9#..WG..DX..USA

W(*RW)

 2
90099-32089

AE9#..(DX,LE)..USA

 1
90099-32103

AE9#..(DX,LE)..USA

COLD SPEC

 1
90099-32103

AE9#..WG..DX..USA

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-12650

AE92..USA

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-12650

AE92..USA

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12320

AE9#

 1
85332-12650

AE9#..(DX,LE)..USA

 1
85332-12660

AE9#..WG..DX..USA

COLD SPEC OR W(REAR WINDOW WIPER)

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12320

AE9#

 1
85332-12650

AE9#..(DX,LE)..USA

 1
85332-12660

AE9#..WG..DX..USA

COLD SPEC OR W(REAR WINDOW WIPER)

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20020

AE9#..USA

NO.2

 1
85333-20010

AE9#..USA

NO.1

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20020

AE9#..USA

NO.2

 1
85333-20010

AE9#..USA

NO.1

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE9#

3-WAY

 1
85349-89122

AE9#..USA

2-WAY

 2
85349-14010

AE9#..USA

2-WAY,NO.1,COLD SPEC

 1
85349-20010

AE9#..USA

2-WAY,NO.2,COLD SPEC

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE9#

3-WAY

 1
85349-89122

AE9#..USA

2-WAY

 2
85349-14010

AE9#..USA

2-WAY,NO.1,COLD SPEC

 1
85349-20010

AE9#..USA

2-WAY,NO.2,COLD SPEC

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE9#

3-WAY

 1
85349-89122

AE9#..USA

2-WAY

 2
85349-14010

AE9#..USA

2-WAY,NO.1,COLD SPEC

 1
85349-20010

AE9#..USA

2-WAY,NO.2,COLD SPEC

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE9#

3-WAY

 1
85349-89122

AE9#..USA

2-WAY

 2
85349-14010

AE9#..USA

2-WAY,NO.1,COLD SPEC

 1
85349-20010

AE9#..USA

2-WAY,NO.2,COLD SPEC

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE9#

3-WAY

 1
85349-89122

AE9#..USA

2-WAY

 2
85349-14010

AE9#..USA

2-WAY,NO.1,COLD SPEC

 1
85349-20010

AE9#..USA

2-WAY,NO.2,COLD SPEC

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AE9#

3-WAY

 1
85349-89122

AE9#..USA

2-WAY

 2
85349-14010

AE9#..USA

2-WAY,NO.1,COLD SPEC

 1
85349-20010

AE9#..USA

2-WAY,NO.2,COLD SPEC

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-32110

AE9#..USA

COLD SPEC

 1
85355-14481

AE9#..USA

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-32110

AE9#..USA

COLD SPEC

 1
85355-14481

AE9#..USA

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

AE9#..USA

L=1100,COLD SPEC

 1
90099-33410

AE9#..USA

*H,L=1100

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

AE9#..USA

L=1100,COLD SPEC

 1
90099-33410

AE9#..USA

*H,L=1100

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

AE9#

L=1450

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

AE9#

L=1450

 1
85372G - TUBE, RUBBER
90099-33080

AE9#

L=1450

 1
85372G - TUBE, RUBBER
90099-33080

AE9#

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE9#

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE9#

L=1450

 1
Common parts
16581-63010
82711-24070
90119-06144
90959-01335
90989-01031
Linked diagrams
8504
