AE92L-AWHDUA (1987)
Toyota Corolla Jpp

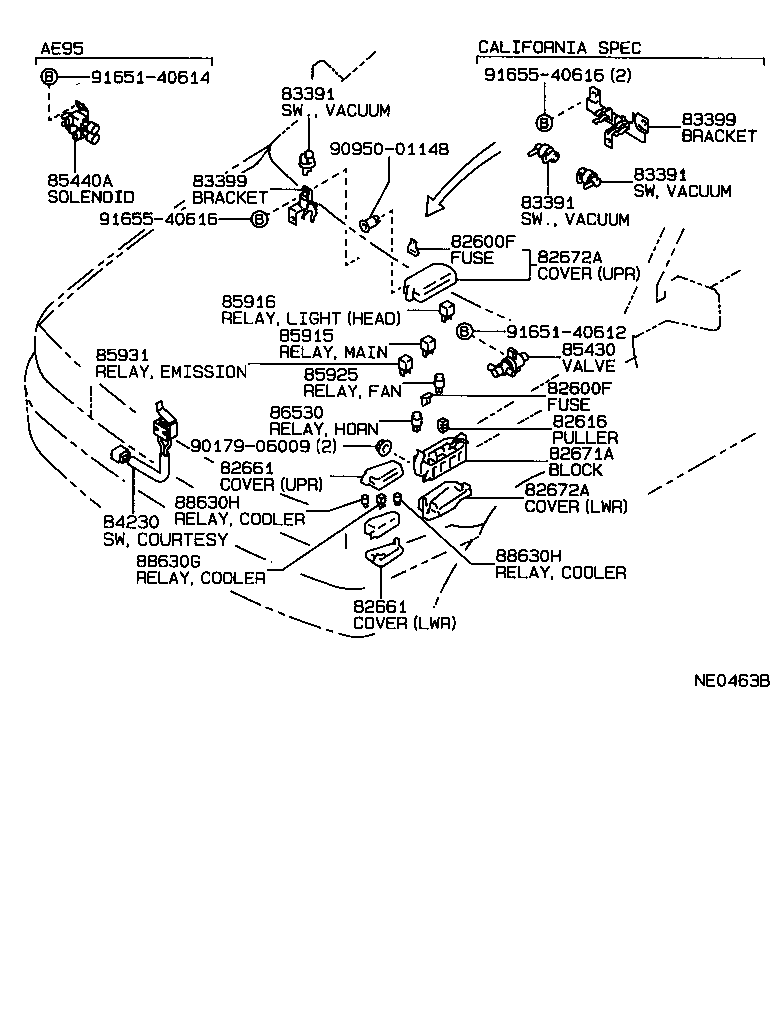

ILLUST NO. 2 OF 6(8708-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92 15A |
2 | ||
| 90982-09005 |
AE9# 7.5A |
3 | ||
| 90982-09005 |
AE92 7.5A |
2 | ||
| 90982-07011 |
AE92 30A,GREEN |
2 | ||
| 90982-09002 |
AE9# 10A |
3 | ||
| 90982-07011 |
AE9# 30A,GREEN |
1 | ||
| 90982-09003 |
AE95;AE92..CBR 15A |
4 | ||
| 90982-09004 |
AE9# 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92 15A |
2 | ||
| 90982-09005 |
AE9# 7.5A |
3 | ||
| 90982-09005 |
AE92 7.5A |
2 | ||
| 90982-07011 |
AE92 30A,GREEN |
2 | ||
| 90982-09002 |
AE9# 10A |
3 | ||
| 90982-07011 |
AE9# 30A,GREEN |
1 | ||
| 90982-09003 |
AE95;AE92..CBR 15A |
4 | ||
| 90982-09004 |
AE9# 20A,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE9# LWR |
1 | ||
| 82661-12140 |
AE9# UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE9# LWR |
1 | ||
| 82661-12140 |
AE9# UPR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12100 |
AE92 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12070 |
AE9# LWR |
1 | ||
| 82672-12060 |
AE92 UPR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12070 |
AE9# LWR |
1 | ||
| 82672-12060 |
AE92 UPR |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12260 |
AE92..ATM..USA CALIFORNIA SPEC,MARK=350FB,TOKAIRIKA |
1 | ||
| 83391-10080 |
AE92..ATM..USA CALIFORNIA SPEC,MARK=350FB,AISIN |
1 | ||
| 83391-12210 |
AE92 MARK=80FM,TOKAIRIKA |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12260 |
AE92..ATM..USA CALIFORNIA SPEC,MARK=350FB,TOKAIRIKA |
1 | ||
| 83391-10080 |
AE92..ATM..USA CALIFORNIA SPEC,MARK=350FB,AISIN |
1 | ||
| 83391-12210 |
AE92 MARK=80FM,TOKAIRIKA |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12260 |
AE92..ATM..USA CALIFORNIA SPEC,MARK=350FB,TOKAIRIKA |
1 | ||
| 83391-10080 |
AE92..ATM..USA CALIFORNIA SPEC,MARK=350FB,AISIN |
1 | ||
| 83391-12210 |
AE92 MARK=80FM,TOKAIRIKA |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12120 |
AE92 |
1 | ||
| 83399-12130 |
AE92..ATM..USA CALIFORNIA SPEC |
1 | ||
| 83399-12130 |
AE92..USA CALIFORNIA SPEC |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12120 |
AE92 |
1 | ||
| 83399-12130 |
AE92..ATM..USA CALIFORNIA SPEC |
1 | ||
| 83399-12130 |
AE92..USA CALIFORNIA SPEC |
1 | ||
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-14050 |
AE92..USA |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09011 |
AE92 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9# MARUKO,TAIL |
1 | ||
| 90987-02004 |
AE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02006 |
AE9# HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE9# |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 90987-02006 |
AE92 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AE9# MARUKO |
1 | ||
| 90987-02004 |
AE9# NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE9# |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE9# |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE9# |
2 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 90950-01148 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||

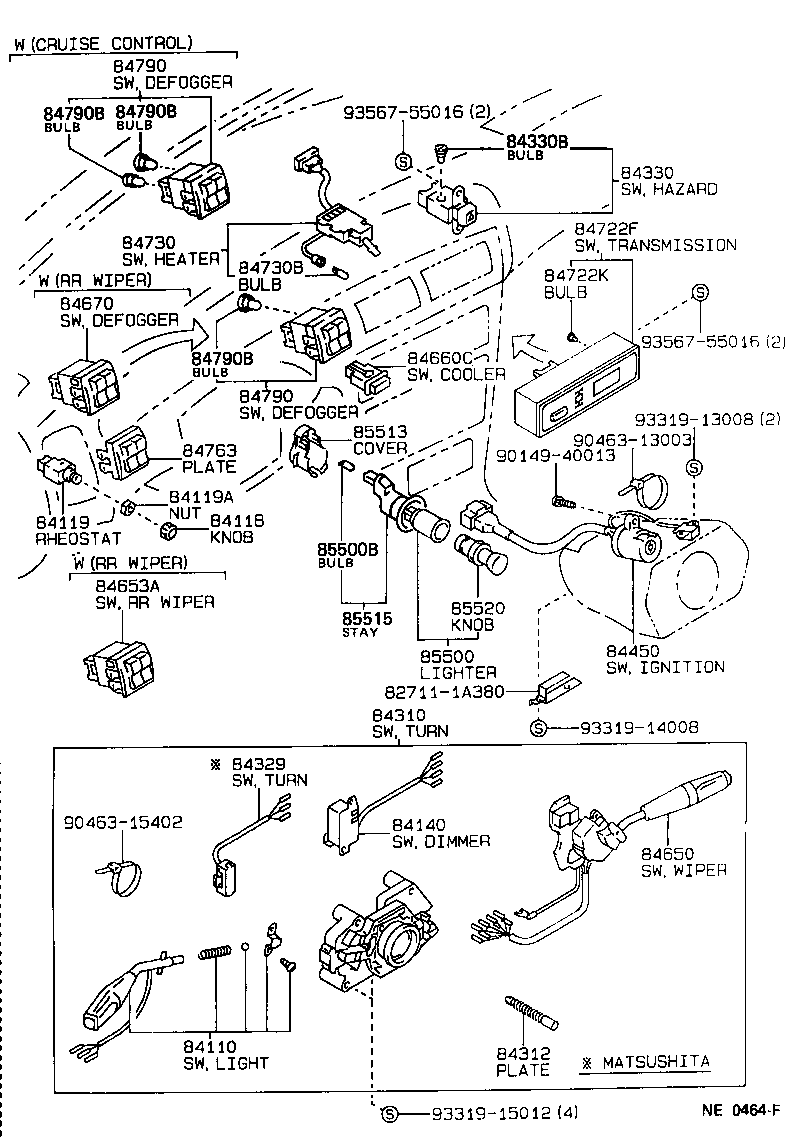

ILLUST NO. 3 OF 6(8708-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80002 |
AE9# TOKAIRIKA |
1 | ||
| 84112-80001 |
AE9# MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12070 |
AE9# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20140 |
AE9# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
AE9# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12250 |
AE9# MATSUSHITA |
1 | ||
| 84140-12260 |
AE9# TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A170 |
AE9#..DX W(INTERMITTENT WIPER) |
1 | ||
| 84310-1A150 |
AE9#..DX |
1 | ||
| 84310-1A200 |
AE92 W(CRUISE CONTROL) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AE9# TOKAIRIKA |
1 | ||
| 84312-12050 |
AE9# MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12030 |
AE9# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12260 |
AE9# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10210 |
AE9# 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12160 |
AE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12820 |
AE92 W(CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84652-12770 |
AE9#..DX,STD MATSUSHITA |
1 | ||
| 84652-12790 |
AE95..DX;AE92..DX..CBR;AE92..DX..USA..EFI;AE92..SED..DX..CND..EFI W(INTERMITTENT WIPER),MATSUSHITA |
1 | ||
| 84652-12810 |
AE92 W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84652-12780 |
AE9#..DX,STD TOKAIRIKA |
1 | ||
| 84652-12800 |
AE95..DX;AE92..DX..CBR;AE92..DX..USA..EFI;AE92..SED..DX..CND..EFI W(INTERMITTENT WIPER),TOKAIRIKA |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-1217004 |
AE9#..WG DARK BLUE,TRIM8# |
1 | ||
| 84653-1217003 |
AE9#..WG SHADOW GRAY,TRIM1# |
1 | ||
| 84653-1217005 |
AE9#..WG DARK BEIGE,TRIM4# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12100 |
AE9#..USA |
1 | ||
| 84670 - SWITCH ASSY, REAR WIPER & DEFOGGER | ||||
| 84670-1204004 |
AE9#..WG DARK BLUE,TRIM8# |
1 | ||
| 84670-1204003 |
AE9#..WG LIGHT GRAY,TRIM1# |
1 | ||
| 84670-1204005 |
AE9#..WG LIGHT BEIGE,TRIM4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12270 |
AE9# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE9# 14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1207004 |
AE9# DARK BLUE,TRIM8# |
1 | ||
| 84763-1207003 |
AE92..LE;AE9#..WG;AE9#..SED..DX..USA SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1207003 |
AE9# SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1207005 |
AE9# DARK BEIGE,TRIM4# |
1 | ||
| 84763-1207005 |
AE92..LE;AE9#..WG;AE9#..SED..DX..USA DARK BEIGE,TRIM4# |
1 | ||
| 84763-12070J0 |
AE9# DARK BLUE,TRIM8# |
1 | ||
| 84763-1207004 |
AE92..LE;AE95..WG;AE92..DX..USA;AE95..SED..USA DARK BLUE,TRIM8# |
1 | ||
| 84763-1207005 |
AE9# DARK BEIGE,TRIM4# |
1 | ||
| 84763-1207003 |
AE9# SHADOW GRAY,TRIM1# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84630-1204003 |
AE9#..DX,LE W(CRUISE CONTROL),SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1223004 |
AE92..WG DARK BLUE,TRIM1# |
1 | ||
| 84630-1204004 |
AE9#..DX,LE W(CRUISE CONTROL),DARK BLUE,TRIM8# |
1 | ||
| 84790-1223003 |
AE9#..DX,LE SHADOW GRAY,TRIM1# |
1 | ||
| 84630-1204005 |
AE9#..DX,LE W(CRUISE CONTROL),DARK BEIGE,TRIM4# |
1 | ||
| 84790-1223004 |
AE92..WG DARK BLUE,TRIM1#,8# |
1 | ||
| 84630-1204003 |
AE92..LE;AE9#..WG..DX;AE9#..SED..DX..USA W(CRUISE CONTROL),SHADOW GRAY,TRIM1# |
1 | ||
| 84630-1204005 |
AE92..LE;AE9#..WG..DX;AE9#..SED..DX..USA W(CRUISE CONTROL),DARK BEIGE,TRIM4# |
1 | ||
| 84790-1223003 |
AE92..LE;AE9#..WG..DX;AE9#..SED..DX..USA SHADOW GRAY,TRIM1# |
1 | ||
| 84630-1204005 |
AE9#..DX,LE W(CRUISE CONTROL),DARK BEIGE,TRIM4# |
1 | ||
| 84790-1223005 |
AE92..WG..USA DARK BEIGE,TRIM1#,4# |
1 | ||
| 84790-1223004 |
AE92..WG..USA DARK BLUE,TRIM8# |
1 | ||
| 84630-1204004 |
AE92..LE;AE95..WG..DX;AE92..DX..USA;AE95..SED..USA W(CRUISE CONTROL),DARK BLUE,TRIM8# |
1 | ||
| 84630-1204003 |
AE9#..DX,LE W(CRUISE CONTROL),SHADOW GRAY,TRIM1# |
1 | ||
| 84790-12230J0 |
AE9#..DX,LE DARK BLUE,TRIM8# |
1 | ||
| 84630-12040J0 |
AE9#..DX,LE W(CRUISE CONTROL),DARK BLUE,TRIM8# |
1 | ||
| 84790-1223003 |
AE9#..DX,LE SHADOW GRAY,TRIM1# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84630-1204003 |
AE9#..DX,LE W(CRUISE CONTROL),SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1223004 |
AE92..WG DARK BLUE,TRIM1# |
1 | ||
| 84630-1204004 |
AE9#..DX,LE W(CRUISE CONTROL),DARK BLUE,TRIM8# |
1 | ||
| 84790-1223003 |
AE9#..DX,LE SHADOW GRAY,TRIM1# |
1 | ||
| 84630-1204005 |
AE9#..DX,LE W(CRUISE CONTROL),DARK BEIGE,TRIM4# |
1 | ||
| 84790-1223004 |
AE92..WG DARK BLUE,TRIM1#,8# |
1 | ||
| 84630-1204003 |
AE92..LE;AE9#..WG..DX;AE9#..SED..DX..USA W(CRUISE CONTROL),SHADOW GRAY,TRIM1# |
1 | ||
| 84630-1204005 |
AE92..LE;AE9#..WG..DX;AE9#..SED..DX..USA W(CRUISE CONTROL),DARK BEIGE,TRIM4# |
1 | ||
| 84790-1223003 |
AE92..LE;AE9#..WG..DX;AE9#..SED..DX..USA SHADOW GRAY,TRIM1# |
1 | ||
| 84630-1204005 |
AE9#..DX,LE W(CRUISE CONTROL),DARK BEIGE,TRIM4# |
1 | ||
| 84790-1223005 |
AE92..WG..USA DARK BEIGE,TRIM1#,4# |
1 | ||
| 84790-1223004 |
AE92..WG..USA DARK BLUE,TRIM8# |
1 | ||
| 84630-1204004 |
AE92..LE;AE95..WG..DX;AE92..DX..USA;AE95..SED..USA W(CRUISE CONTROL),DARK BLUE,TRIM8# |
1 | ||
| 84630-1204003 |
AE9#..DX,LE W(CRUISE CONTROL),SHADOW GRAY,TRIM1# |
1 | ||
| 84790-12230J0 |
AE9#..DX,LE DARK BLUE,TRIM8# |
1 | ||
| 84630-12040J0 |
AE9#..DX,LE W(CRUISE CONTROL),DARK BLUE,TRIM8# |
1 | ||
| 84790-1223003 |
AE9#..DX,LE SHADOW GRAY,TRIM1# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10240 |
AE9# 12V 1.3W,12V 1.3W,W(CRUISE CONTROL) |
1 | ||
| 84999-10200 |
AE9# 14V 0.56W,12V 0.56W,W(CRUISE CONTROL) |
1 | ||
| 84999-10170 |
AE92 12V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10240 |
AE9# 12V 1.3W,12V 1.3W,W(CRUISE CONTROL) |
1 | ||
| 84999-10200 |
AE9# 14V 0.56W,12V 0.56W,W(CRUISE CONTROL) |
1 | ||
| 84999-10170 |
AE92 12V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10240 |
AE9# 12V 1.3W,12V 1.3W,W(CRUISE CONTROL) |
1 | ||
| 84999-10200 |
AE9# 14V 0.56W,12V 0.56W,W(CRUISE CONTROL) |
1 | ||
| 84999-10170 |
AE92 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||
ILLUST NO. 4 OF 6(8708-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE92..WG |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92 15A |
2 | ||
| 90982-09005 |
AE9# 7.5A |
3 | ||
| 90982-09005 |
AE92 7.5A |
2 | ||
| 90982-07011 |
AE92 30A,GREEN |
2 | ||
| 90982-09002 |
AE9# 10A |
3 | ||
| 90982-07011 |
AE9# 30A,GREEN |
1 | ||
| 90982-09003 |
AE95;AE92..CBR 15A |
4 | ||
| 90982-09004 |
AE9# 20A,YELLOW |
1 | ||

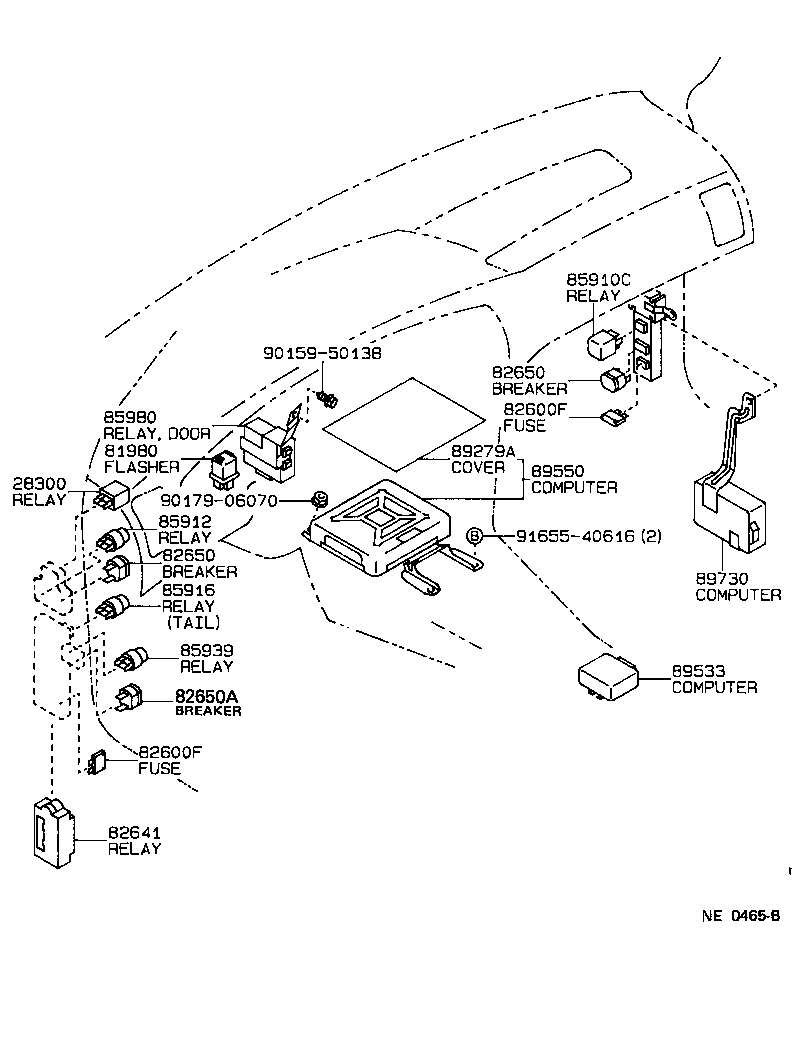

| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92 15A |
2 | ||
| 90982-09005 |
AE9# 7.5A |
3 | ||
| 90982-09005 |
AE92 7.5A |
2 | ||
| 90982-07011 |
AE92 30A,GREEN |
2 | ||
| 90982-09002 |
AE9# 10A |
3 | ||
| 90982-07011 |
AE9# 30A,GREEN |
1 | ||
| 90982-09003 |
AE95;AE92..CBR 15A |
4 | ||
| 90982-09004 |
AE9# 20A,YELLOW |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12020 |
AE9# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9# 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9# 30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE9# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
AE9# NIPPONDENSO |
1 | ||
| 90987-02002 |
AE9# MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9# MARUKO,TAIL |
1 | ||
| 90987-02004 |
AE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02006 |
AE9# HEAD |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-12030 |
AE92 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-1A050 |
AE92..USA CALIFORNIA SPEC |
1 | ||
| 89550-1A040 |
AE92 |
1 | ||
| 89730 - COMPUTER ASSY, SECURITY WARNING | ||||
| 89730-12010 |
AE92..(DX,LE)..USA |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06070 | ||||
| 91655-40616 | ||||

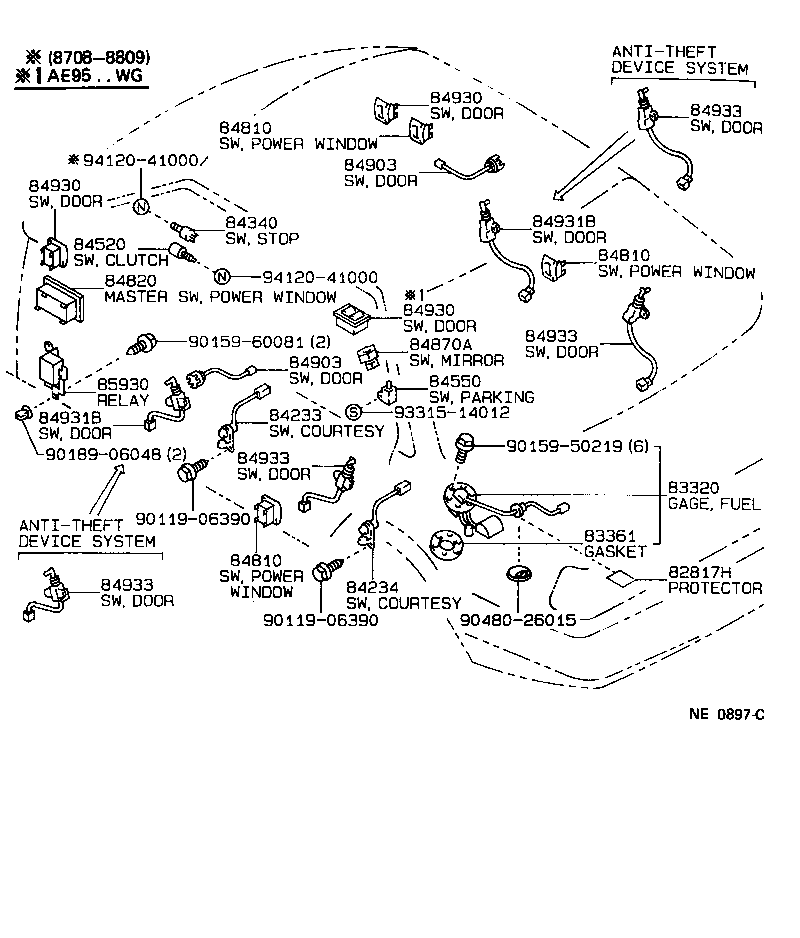

ILLUST NO. 5 OF 6(8708-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80080 |
AE92 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE92..CBR;AE9#..(DX,SR5,STD)..EFI |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
AE9# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9# |
1 | ||
| 84340-22100 |
AE9# W(CRUISE CONTROL) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9# |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-12010 |
AE92..(DX,LE)..USA RH DOOR |
1 | ||
| 84903-12020 |
AE92..(DX,LE)..USA LH DOOR |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-12010 |
AE92..(DX,LE)..USA RH DOOR |
1 | ||
| 84903-12020 |
AE92..(DX,LE)..USA LH DOOR |
1 | ||
| 84933 - SWITCH, DOOR LOCK UNLOCK | ||||
| 84933-12021 |
AE92..(DX,LE)..USA RR DOOR |
2 | ||
| 84933-12030 |
AE92..(DX,LE)..USA FR DOOR |
2 | ||
| 84933 - SWITCH, DOOR LOCK UNLOCK | ||||
| 84933-12021 |
AE92..(DX,LE)..USA RR DOOR |
2 | ||
| 84933-12030 |
AE92..(DX,LE)..USA FR DOOR |
2 | ||
| 84933 - SWITCH, DOOR LOCK UNLOCK | ||||
| 84933-12021 |
AE92..(DX,LE)..USA RR DOOR |
2 | ||
| 84933-12030 |
AE92..(DX,LE)..USA FR DOOR |
2 | ||
| 84933 - SWITCH, DOOR LOCK UNLOCK | ||||
| 84933-12021 |
AE92..(DX,LE)..USA RR DOOR |
2 | ||
| 84933-12030 |
AE92..(DX,LE)..USA FR DOOR |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90480-26015 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||

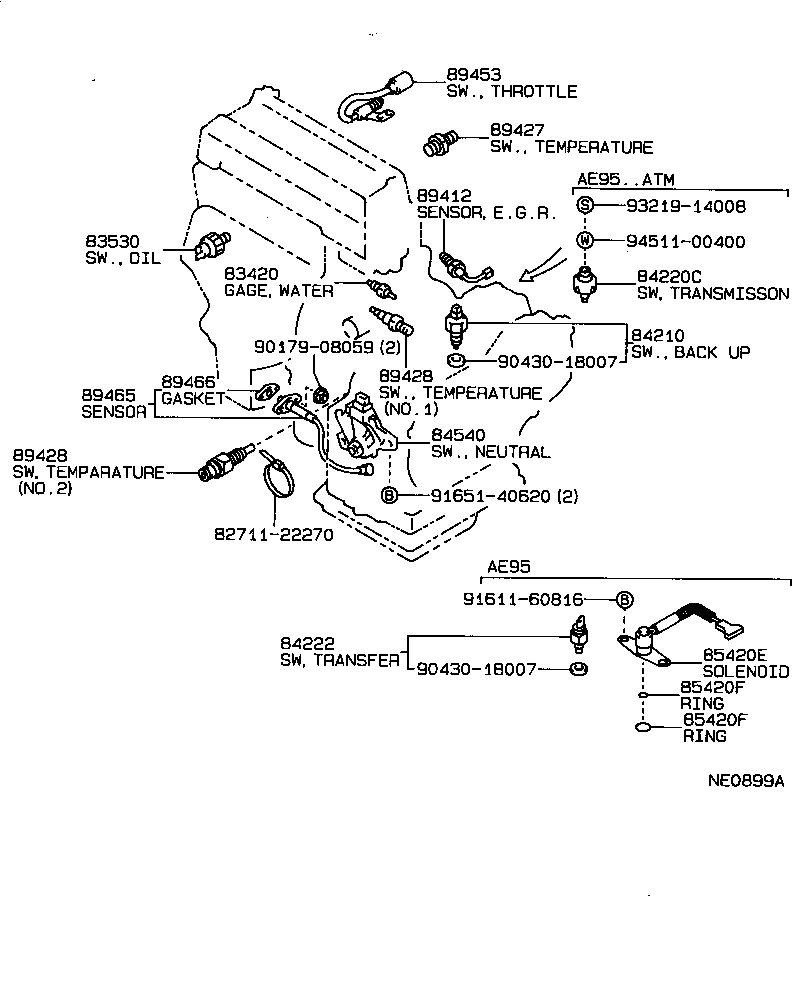

ILLUST NO. 1 OF 6(8708-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30050 |
AE9# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16030 |
AE9#..ATM |
1 | ||
| 89412 - SENSOR, E.G.R GAS TEMPERATURE | ||||
| 89412-12010 |
AE92..ATM..USA |
1 | ||
| 89412-12010 |
AE92..USA |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
AE92 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE9# NO.1 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE9# NO.1 |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-12040 |
AE92 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19255 |
AE92 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
AE9# |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 91611-60816 | ||||
| 91651-40620 | ||||
| 93219-14008 | ||||
| 94511-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
