AE92L-AWHDUA (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE92..WG

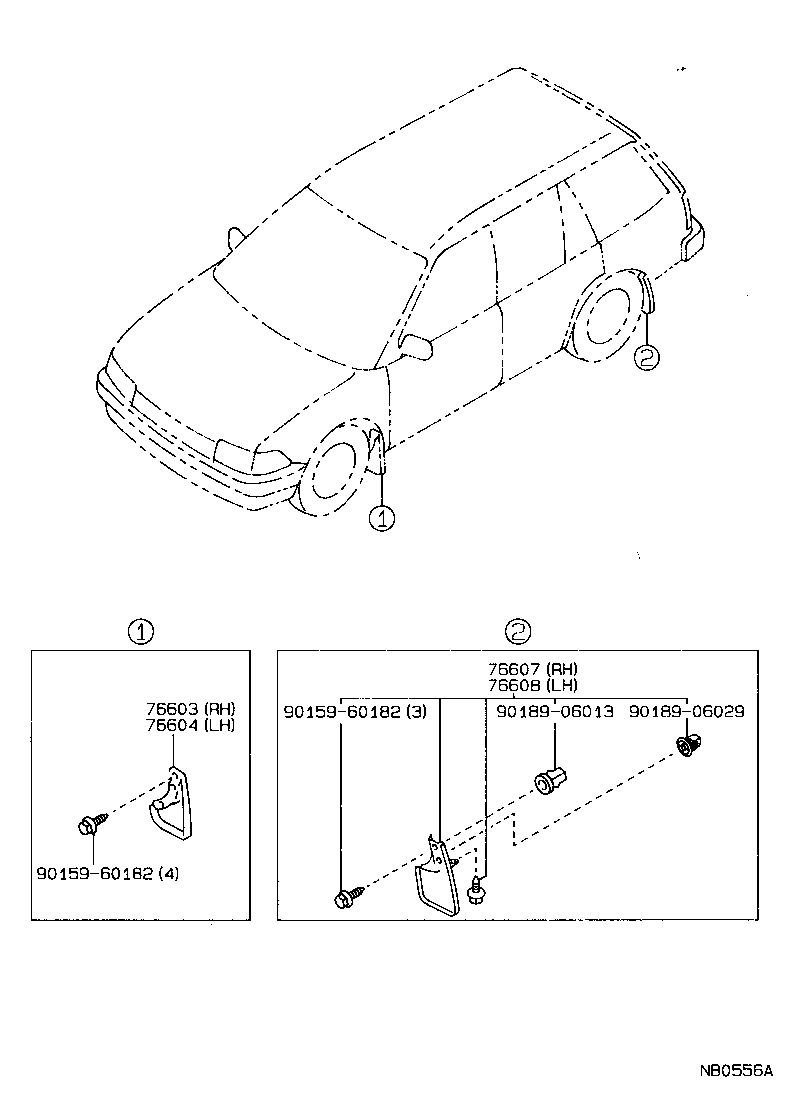

Click highlighted areas on diagram

diagram 76603 76604 76607 76608 9015960182 9015960182 9018906013 9018906029
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12050

AE9#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12050

AE9#

 1
Common parts
90159-60182
90189-06013
90189-06029
