AE92L-AWHDUA (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE92..WG

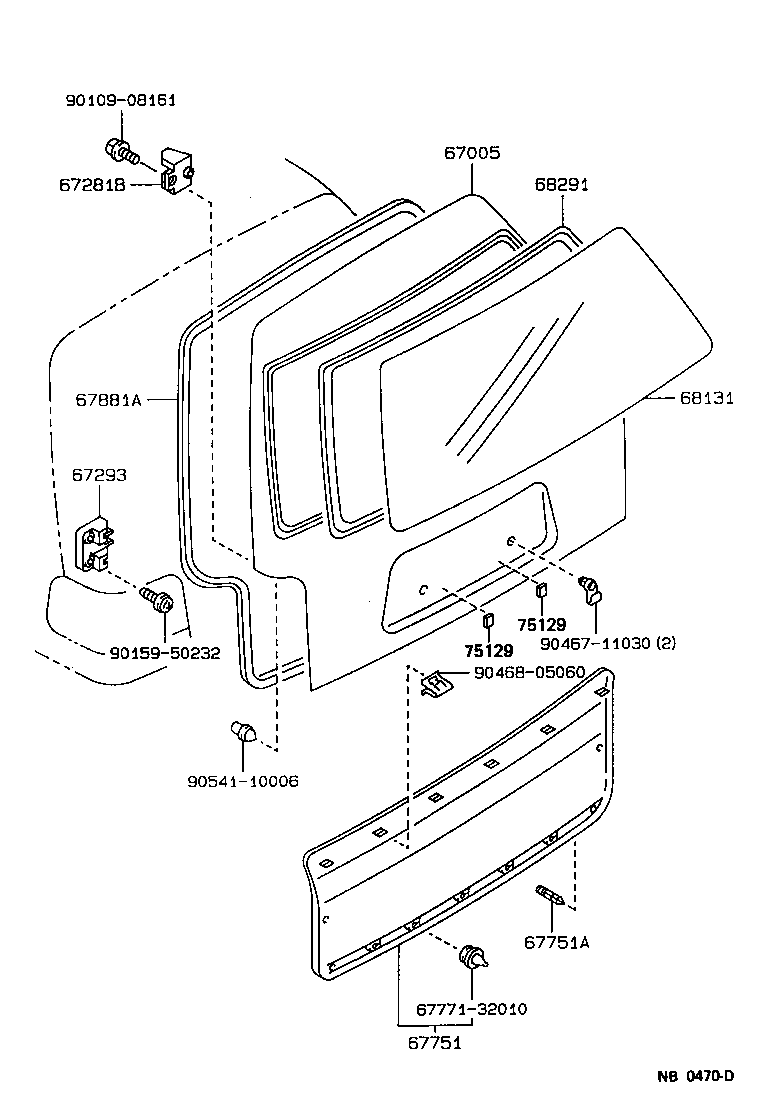

Click highlighted areas on diagram

diagram 67005 67281B 67293 67751 67751A 6777132010 67881A 68131 68291 75129 75129 9010908161 9015950232 9046711030 9046805060 9054110006
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67751-1311005

AE92..WG

DARK BEIGE,TRIM4#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0708305

AE92..WG

DARK BEIGE,TRIM4#

 4
90467-0708304

AE92..WG

DARK BLUE,TRIM8#

 4
75129 - CUSHION, REAR LICENSE PLATE
75129-22010

AE92..DX

 2
75129 - CUSHION, REAR LICENSE PLATE
75129-22010

AE92..DX

 2
Common parts
67771-32010
90109-08161
90159-50232
90467-11030
90468-05060
90541-10006
