AE92L-AWHDUA (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE92..WG

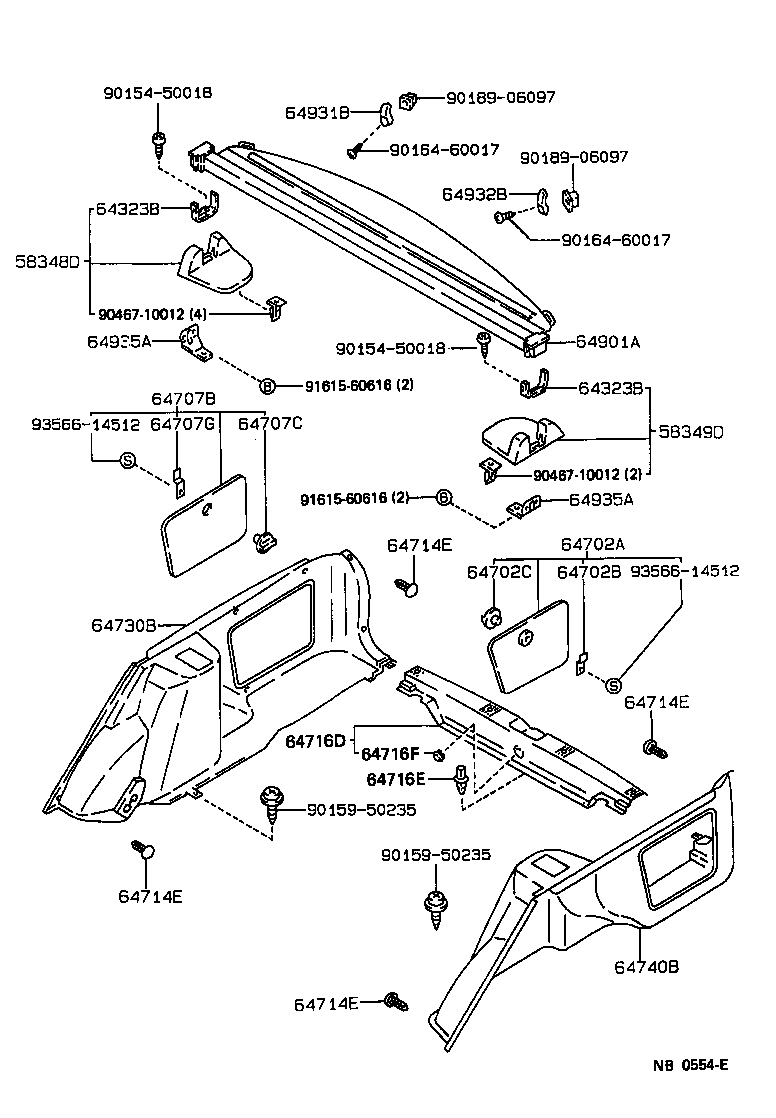

Click highlighted areas on diagram

diagram 58348D 58349D 64323B 64323B 64702A 64702B 64702C 64707B 64707C 64707G 64714E 64714E 64714E 64714E 64716D 64716E 64716F 64730B 64740B 64901A 64931B 64932B 64935A 64935A 9015450018 9015450018 9015950235 9015950235 9016460017 9016460017 9018906097 9018906097 9046710012 9046710012 9161560616 9161560616 9356614512 9356614512
Part # Description Qty Price
58348D - COVER, REAR ABSORBER SERVICE HOLE, RH
58348-1303005

AE92..WG

DARK BEIGE,TRIM4#

 1
58348-1304005

AE92..WG

W(TONNEAU COVER),DARK BEIGE,TRIM4#

 1
58349D - COVER, REAR ABSORBER SERVICE HOLE, LH
58349-1304005

AE92..WG

DARK BEIGE,TRIM4#

 1
58349-1305005

AE92..WG

W(TONNEAU COVER),DARK BEIGE,TRIM4#

 1
64323B - CLAMP, TONNEAU COVER
64323-3201003

AE92..WG

MEDIUM GRAY,TRIM1#

 2
64323-3201004

AE92..WG

DARK BLUE,TRIM8#

 2
64323-3201005

AE92..WG

DARK BEIGE,TRIM4#

 2
64323B - CLAMP, TONNEAU COVER
64323-3201003

AE92..WG

MEDIUM GRAY,TRIM1#

 2
64323-3201004

AE92..WG

DARK BLUE,TRIM8#

 2
64323-3201005

AE92..WG

DARK BEIGE,TRIM4#

 2
64702A - COVER SUB-ASSY, DECK TRIM SIDE SERVICE HOLE
64702-1302005

AE92..WG

DARK BEIGE,TRIM4#

 1
64702C - KNOB, WASHER TANK COVER
64982-1602023

AE92..WG

GRAY,TRIM1#

 1
64982-1602025

AE9#..WG

DARK BEIGE,TRIM4#

 1
64707B - COVER SUB-ASSY, QUARTER TRIM JACK
64707-1306005

AE92..WG

DARK BEIGE,TRIM4#

 1
64707C - KNOB, JACK COVER
64982-1602023

AE92..WG

GRAY,TRIM1#

 1
64982-1602025

AE9#..WG

DARK BEIGE,TRIM4#

 1
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-0608505

AE92..WG

DARK BEIGE,TRIM4#

 12
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-0608505

AE92..WG

DARK BEIGE,TRIM4#

 12
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-0608505

AE92..WG

DARK BEIGE,TRIM4#

 12
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-0608505

AE92..WG

DARK BEIGE,TRIM4#

 12
64716D - COVER, DECK TRIM, REAR
64716-1302005

AE92..WG

DARK BEIGE,TRIM4#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-0608505

AE92..WG

DARK BEIGE,TRIM4#

 4
64716F - PLUG, HOLE(FOR DECK TRIM REAR COVER)
90950-0143625

AE92..WG

DARK BEIGE,TRIM4#

 1
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-1301004

AE92..WG

DARK BLUE,TRIM8#

 1
64730-1303003

AE92..WG

W(TONNEAU COVER),SHADOW GRAY,TRIM1#

 1
64730-1301003

AE92..WG

SHADOW GRAY,TRIM1#

 1
64730-1303005

AE92..WG

W(TONNEAU COVER),DARK BEIGE,TRIM4#

 1
64730-1302005

AE92..WG

DARK BEIGE,TRIM4#

 1
64730-1301005

AE92..WG

DARK BEIGE,TRIM4#

 1
64730-1303004

AE92..WG

W(TONNEAU COVER),DARK BLUE,TRIM8#

 1
64730-1304005

AE92..WG

W(TONNEAU COVER),DARK BEIGE,TRIM4#

 1
64740B - BOARD, DECK TRIM SIDE, LH
64740-1301005

AE92..WG

DARK BEIGE,TRIM4#

 1
64740-1303004

AE92..WG

W(TONNEAU COVER),DARK BLUE,TRIM8#

 1
64740-1301003

AE92..WG

SHADOW GRAY,TRIM1#

 1
64740-1303005

AE92..WG

W(TONNEAU COVER),DARK BEIGE,TRIM4#

 1
64740-1301004

AE92..WG

DARK BLUE,TRIM8#

 1
64740-1303003

AE92..WG

W(TONNEAU COVER),SHADOW GRAY,TRIM1#

 1
64740-1302005

AE92..WG

DARK BEIGE,TRIM4#

 1
64740-1304005

AE92..WG

W(TONNEAU COVER),DARK BEIGE,TRIM4#

 1
64901A - RETRACTOR SUB-ASSY, TONNEAU COVER
64901-1301005

AE92..WG

DARK BEIGE,TRIM4#

 1
64931B - HANGER, TONNEAU COVER, RH
64931-1301005

AE92..WG

DARK BEIGE,TRIM4#

 1
64932B - HANGER, TONNEAU COVER, LH
64932-1301005

AE92..WG

DARK BEIGE,TRIM4#

 1
Common parts
90154-50018
90159-50235
90164-60017
90189-06097
90467-10012
91615-60616
93566-14512
