AE92L-AWHDUA (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE92..WG

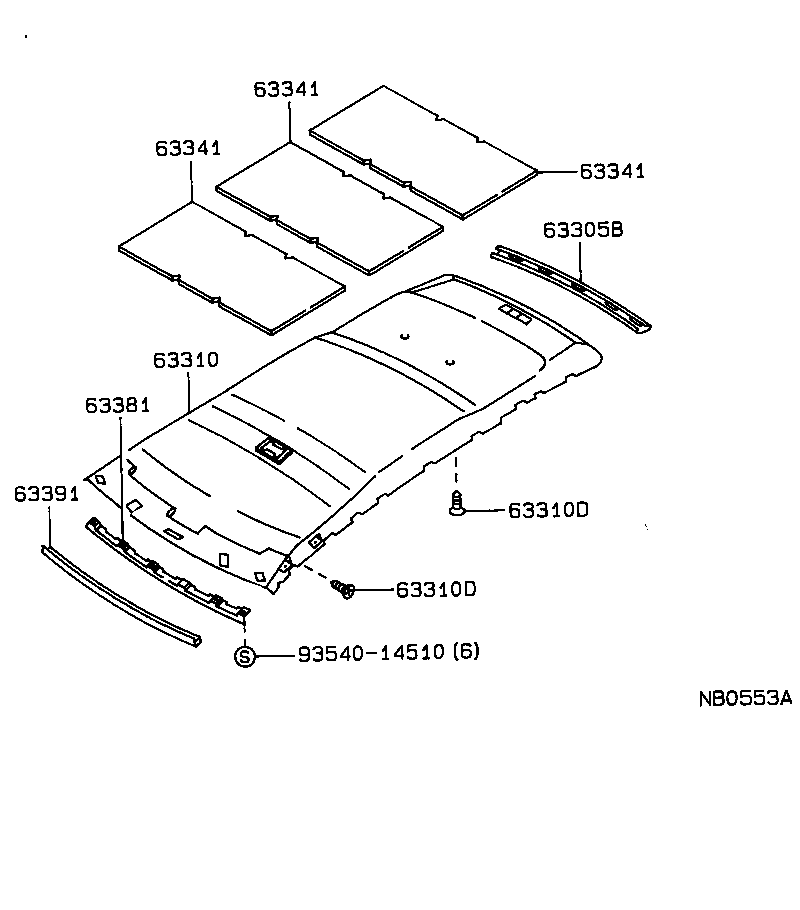

Click highlighted areas on diagram

diagram 63305B 63310 63310D 63310D 63341 63341 63341 63381 63391 9354014510
Part # Description Qty Price
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-1301005

AE92..WG

DARK BEIGE,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-1314005

AE92..WG

LIGHT BEIGE,TRIM4#

 1
63381 - RETAINER, HEADLINING, FRONT
63381-12190

AE92;AE95..SED

 2
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1206003

AE92;AE95..SED

SHADOW GRAY,TRIM1#

 1
63391-12060E0

AE92;AE95..SED

DARK BEIGE,TRIM4#

 1
63391-1206005

AE92;AE95..SED

DARK BEIGE,TRIM4#

 1
63391-1206004

AE92;AE95..SED

DARK BLUE,TRIM8#

 1
Common parts
93540-14510
